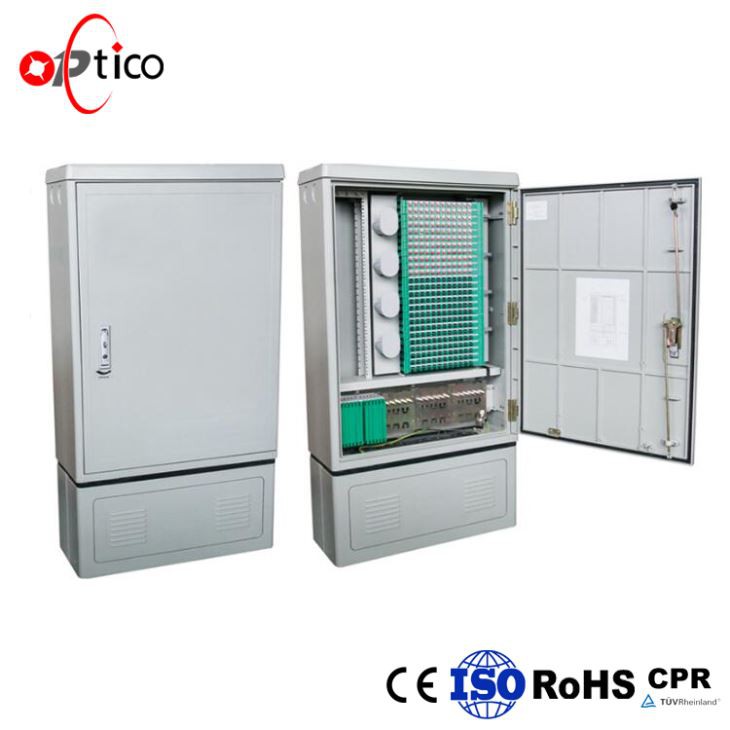

Fiber Cross Connect Cabinet

Fiber Cross Connect Cabinet

F iber C ross C onnect C abinet Quick Details: Place of Origin: Shenzehn, China (Mainland); Brand Name: OPTICO; Item: Fiber Cross Connection Cabinet; Core: 144,288, 576; Type: Outdoor; Fiber adaptor: LC, SC, FC, ST; External size: 1U,2U,3U,4U; Application: FTTX Solutions; Color: White, Black;...

Fiber Cross Connect Cabinet



Quick Details:

Place of Origin: Shenzehn, China (Mainland);

Brand Name: OPTICO;

Item: Fiber Cross Connection Cabinet;

Core: 144,288, 576;

Type: Outdoor;

Fiber adaptor: LC, SC, FC, ST;

External size: 1U,2U,3U,4U;

Application: FTTX Solutions;

Color: White, Black;

Material: Stainless Steel;

Working Temp.: -40°C~+60°C;

MOQ: 100 pcs;

Price Terms: FOB Shenzhen;

Payment terms: T/T 30% in advance, balance before shipment;



Fiber Cross Connection Cabinet 3.jpg


                                                                        Fiber Cross Connect Cabinet



Description

1. fiber optic cross connect cabinet is mainly used for connection, distribution and dispatching of communication optical cables from offices to optical distribution nodes, providing a safe, reliable and flexible optical fiber/cable management system for communication networks in outdoor environment.

2.The current cross-connection cabinets of OPTICO are divided into two categories by cabinet materials:

1).Outdoor optical cross connection cabinet with SMC case;

2).Outdoor optical cross connection cabinet with stainless steel case;



Features

1. Good design for inner structure

2. SMC housing is of high protective performance (stainless steel material by thermal compression molding process also is available)

3. The thick and solid body with good heat-isolated performance can effectively protect condensation inside the cabinets.

4. The water-proof door with a 3-point locking mechanism protects the cabinet from dust and moisture and unauthorized entry.

5. Reliable cable fixation, earthing and stripping protection

6. Clear indications of splicing and distribution of each fiber

7. IDC Connection: 30 degree angle between adaptor and the cabinet to ensure fiber bend radius and to prevent laser from hurting eye.

8. Module design: integrated 12-cores splicing and distribution module for FC and SC adapter installation .

9. Optical arrangement for optical cables and optical fibers with fiber storage units.

10. Good waterproof performance.



Specification

1. Under the general air pressure, 500VDC,insulation resistance≥1000MΩ;

2. The high voltage protection can undertake 3000VDC,no spark-through and flashover within 1 minutes.

3. Technical and quality grade reaches the ISO/IEC11801 requirement.

4. Working temperature-40°C~+60°C;

5. Working humidity≤95% (30°C);

6. Working atmospheric pressure 70~106KPa


Packaging & Delivery:

Packaging Details: 1 pcs optic fiber cross connect cabinet/bag+carton;

Delivery Time: 7~15 days;


Shipping Ways:

Fiber Cross Connection Cabinet shipping ways.jpg


Company Certificates:

ISO & CE & CPR certificates.jpg

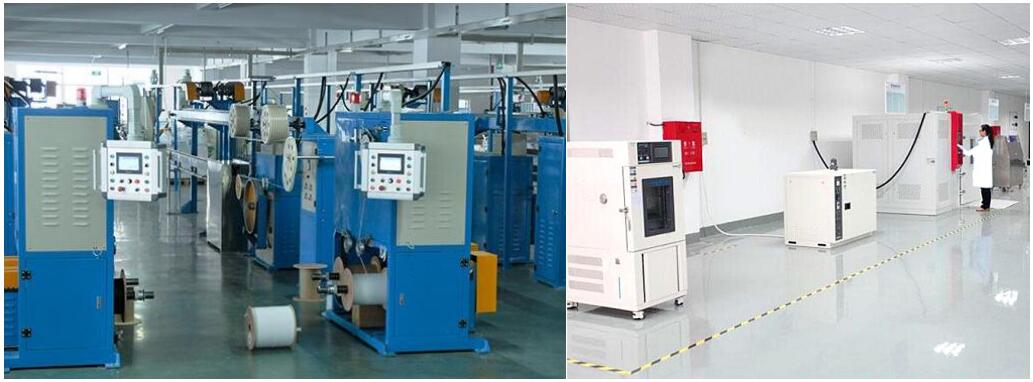

Company Strength:

fiber optic factory.jpg
