SC SC Fiber Optic Adapter

SC SC Fiber Optic Adapter We are one of the leading factories of SC SC Fiber Optic Adapter in Shenzhen, China. Since the year of 2000, we have made our efforts in this field of fiber optic components for more than 18 years. Our products have successfully exported to more than 30 countries, and...

Chat Now

SC SC Fiber Optic Adapter

We are one of the leading factories of SC SC Fiber Optic Adapter in Shenzhen, China. Since the year of 2000, we have made our efforts in this field of fiber optic components for more than 18 years. Our products have successfully exported to more than 30 countries, and our main market are covering most of America market. We are wishing to become your long-term and mutual-benefit business partner in China.

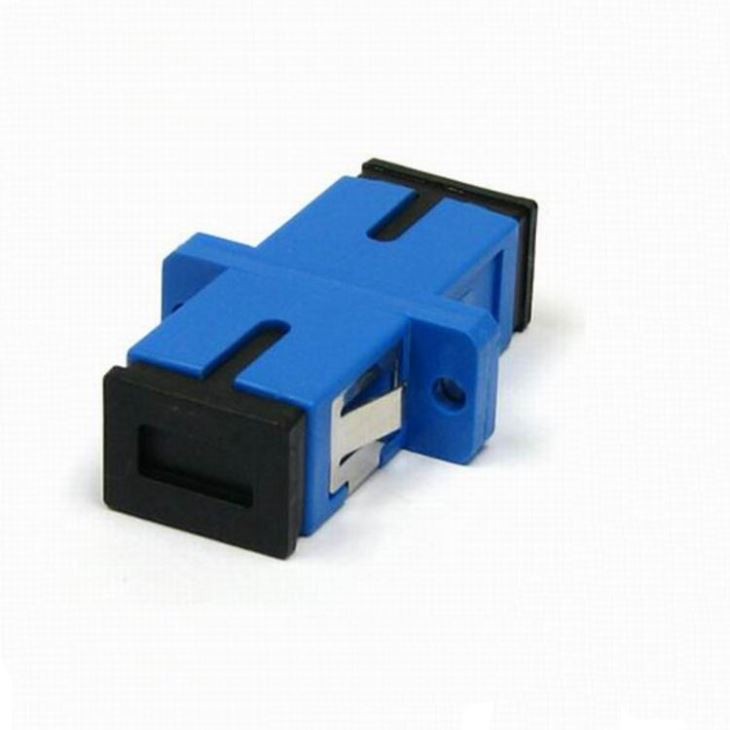

SC SC Fiber Optic Adapter


Introduction of the SC SC Fiber Optic Adapter :

Manufactured under high quality standard, SC SC Fiber Optic Adapter  is specifically designed for EU FTTH&FTTX solution project. It is high quality with low insertion loss(IL<=0.2dB)(APC) and high return loss (RL>=65dB)(APC). Since the year of 2000, we have made our efforts in this field of fiber optic components for more than 18 years. Our products have successfully exported to more than 30 countries, and our main market are covering most of America market. We are wishing to become your long-term and mutual-benefit business partner in China.


Parameters of the SC SC Fiber Optic Adapter :

Insertion Loss

<=0.25dB

Return Loss

>=60dB

Durability

<=0.20dB typical change, 1000 matings

Operating Temperature

-40℃ to +85℃

Ferrule Hole Sizes

125.0+1/-0μm, Concentricity: <=0.5μm

125.5+1/-0μm, Concentricity: <=0.5μm
126.0+1/-0μm, Concentricity: <=0.5μm


Characteristics of SC SC Fiber Optic Adapter :

Applications:

CATV

FTTH System

Test equipment

Premise installations

Data processing networks

Telecommunication networks

Local Area Networks (LANs)

Wide Area Networks (WANS)

Active device termination



Features:

High precision alignment

Compact design

Nickel plated brass body

Free-floating ceramic ferrule

Low insertion loss and high return loss

Precision anti-rotation key and corrosion resistant body


Product ORDERING OPTIONS

Housing Color

Housing Material

Sleeve Material

Channel

Application

Flange

Beige

Plastic

Zirconia

Simplex

SC/PC

With

Blue

Metal

PB

Duplex/Quadplex

SC/APC

Without



Certificates of the SC SC Fiber Optic Adapter :

Quality Control Standard: Insertion Loss(IL)≤0.2dB(APC), IL<=0.3dB(PC); Return Loss(RL)≥50dB(PC), RL≥65dB(APC);

Certificates: We have passed CPR, ISO, CE certificates;



Packing Details of SC SC Fiber Optic Adapter :

Suitable quantity per opp bag, suitable quantity per carton, carton size: 46cm x 46cm x 26cm;

OEM/Customized packaging/carton service is also available/acceptable; /We also provide custom/OEM packaging/carton service.


Production lead time, Delivery Ways and After-service of the SC SC Fiber Optic Adapter :

Production lead time: 7~15 days after deposit;

Delivery way: By International Express e.g. DHL, UPS, Fedex, TNT, etc., or by air, by train, by sea etc;

Expiration date: 5 years; Usage life: 10 years.

Specific person to follow up.


FAQ of the SC SC Fiber Optic Adapter :

1, I don’t have forwarders, can you choose the economic shipping way for us?

Sure, we have cooperated forwarders, and we will choose the ideal shipping way for you.

2, What’s  nearest port in your place?

Shenzhen port.

3, How many years have you dealt in fiber optic field?

Since the year of 2000.

4, Can mix different models in my order?

Yes, you can.

5, Besides fiber optic patch cord, what other fiber optic components do you produce?

Besides fiber patch cord, we also produce fiber optic pigtail, patch cable, PLC splitter, optical ODF, fiber optic cable, optical connector, optical adapter, etc.

6, What scale is your factory?

2000 squared meters.

7, how many staff does your company have?

We have 126 staffs.




Hot Tags: sc sc fiber optic adapter, China, manufacturers, suppliers, factory, wholesale, customized
