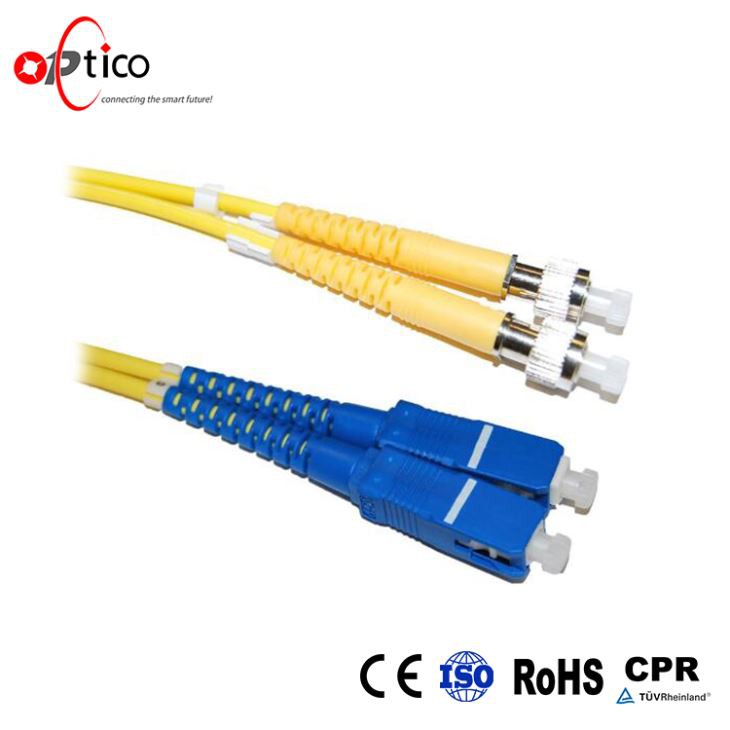

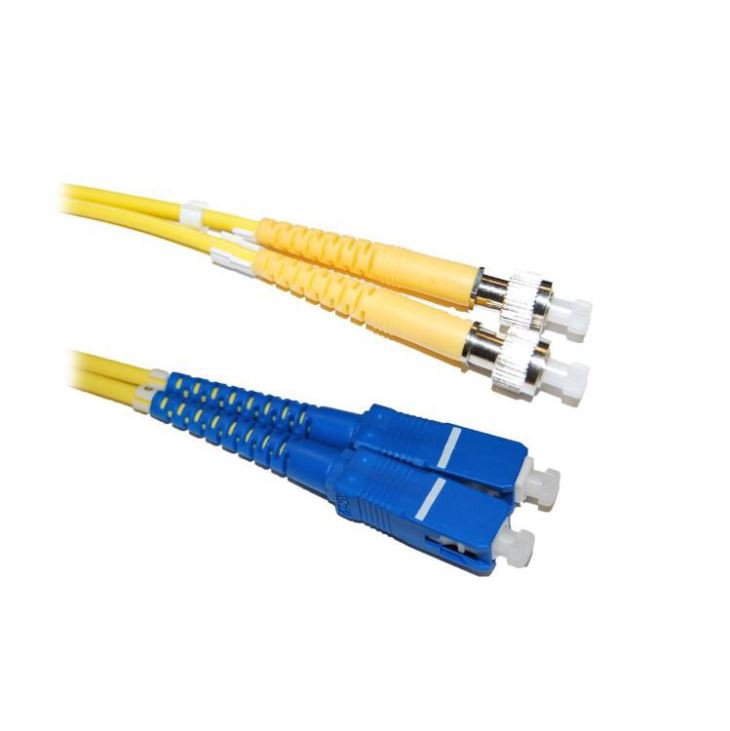

Duplex Fiber Optic Connectors

Duplex Fiber Optic Connectors Located in Shenzhen, China, Optico Communication Co., Ltd was established in 2000. It is one of the leading manufacturers of fiber optic products, supplying Duplex Fiber Optic Connectors. We have made efforts to fiber optic components field for no less than 18...

Chat Now

Dup
lex Fiber Optic Connector



Optical fiber connector connects two optical fibers permanently or separably, it has the protective part i the connection part. The fiber connector is the end device of the fiber.



Quick Details

Place of Origin: Shenzhen, China (Mainland);

Brand Name: Optico;

Model Number: Duplex fiber optic connector;

Matching Cables: 0.9mm; 2.0mm ;2.8mm, 3.0mm, 4.0mm;

Connector Type: SC, LC, FC, ST;

Polishing Method: PC/APC;

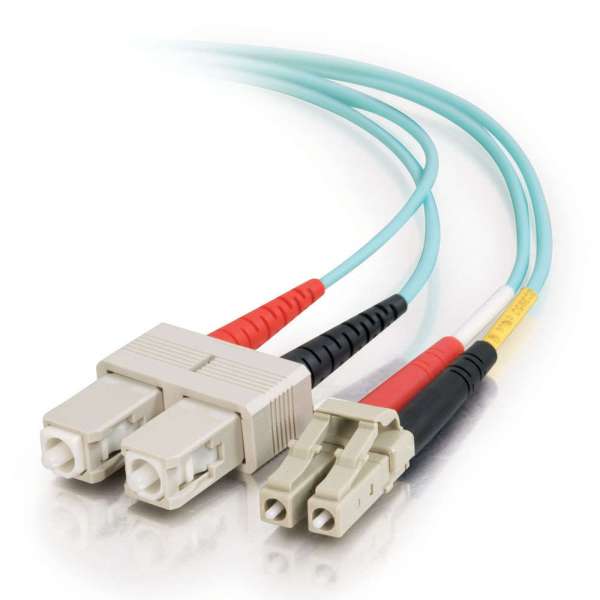

LC-SC Fiber Optico Duplex Connector.jpg



Packaging & Delivery:



Packaging Details:

200pcs in one PE bag, Suitable quantity per packing in a carton;

Delivery Time:

Shipped in 7 days after payment;



Duplex fiber optic connector Features:

* Single mode and Multimode;

* Zirconia sleeves or Phosphor bronze sleeves;

* Available without flanges or with flange for duplex, saving panel space;

* SC2 8Port high density for patch panel mount applications;

* Meet JIS5974 and bellcore GR-326 standard;

* Compliant with IEC874-14 & IEC874-19;

* All parts compliant with ROHS;



Ap
plication:

* Telecommunication;

* CATV;

* LAN & WAN;

* Network;

* Broadband;

* FTTH;



Specification:



Parameter

Unit

FC,LC,SC

ST,MU

SM

MM

SM

MM

PC

UPC

APC

PC

PC

UPC

PC

Insertion loss(typical)

dB

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

Operating wavelength

nm

1310,1510

1310,1510

Exchangeability

dB

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

Operating temperature

°C

-40~+75

-40~+75

Storage temperature

°C

-45~+85

-45~+85

Cable diameter

mm

Φ3.0,Φ2.0,Φ0.9

Φ3.0,Φ2.0,Φ0.9


 Company Pictures:

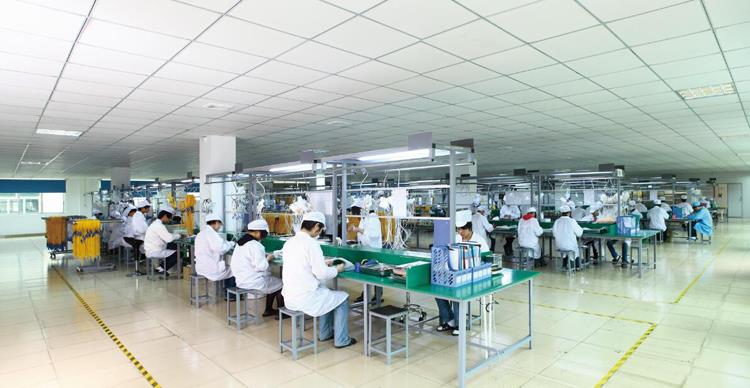

Optico Communication Workshop(1).jpg

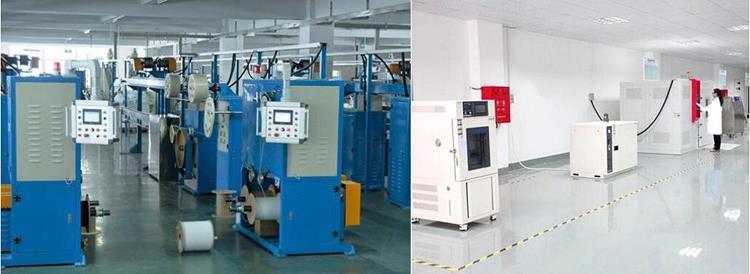

fiber optic factory.jpg
