LC APC Fiber Connectors

LC APC Fiber Connectors Optico Communication Co., Ltd is a full experience manufacturer providing LC APC Fiber Connectors in Shenzhen, China. Founded in 2000, we have been devoting to fiber optic industry for 18 years. Our products have successfully exported to more than 30 countries and Europe...

Chat Now

LC APC Fiber Connectors

Optico Communication Co., Ltd is a full experience manufacturer providing LC APC Fiber Connectors in Shenzhen, China. Founded in 2000, we have been devoting to fiber optic industry for  18 years. Our products have successfully exported to more than 30 countries and Europe is our main market. We are hoping to establish long-term mutual-benefit business cooperation with you.

LC APC Fiber Connectors

Brief Product Introduction of the LC APC Fiber Connectors:
Manufactured under high quality standard, LC APC Fiber Connectors  is designed for fiber optic networks connection solution project. It is with low insertion loss(IL<=0.2dB)(APC) and high return loss (RL>=65dB)(APC). Founded in 2000, we have been devoting to fiber optic industry for  18 years. Our products have successfully exported to more than 30 countries and Europe is our main market. We are hoping to establish long-term mutual-benefit business cooperation with you.

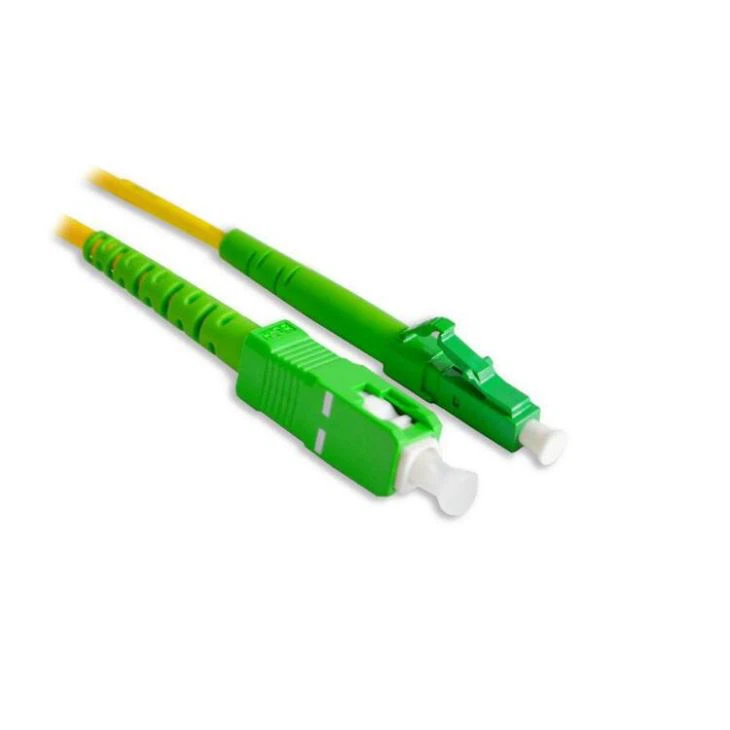

LC APC fiber connector 4.jpg


Product Parameters of the LC APC Fiber Connectors :


Insertion Loss<=0.20dB(APC), <=0.30dB(PC)
Return Loss>=60dB(APC), >=50dB(PC)
Durability<=0.20dB typical change, 1000 matings
Operating Temperature-40℃ to +85℃
Ferrule Hole Sizes125.0+1/-0μm, Concentricity: <=0.5μm
125.5+1/-0μm, Concentricity: <=0.5μm
126.0+1/-0μm, Concentricity: <=0.5μm

Product Characters of LC APC Fiber Connectors:

FEATURES:

Low insertion loss and high return loss
High precision alignment
Free-floating ceramic ferrule
Precision anti-rotation key and corrosion resistant body

APPLICATIONS:
CATV
Metro
Test equipment
Local Area Networks (LANs)
Wide Area Networks (WANS)
Premise installations
Data processing networks
Telecommunication networks
Active device termination

Product Ordering Options of the LC APC Fiber Connectors :

Housing ColorHousing MaterialSleeve MaterialChannelApplicationFlange
GreenPlasticZirconiaSimplexLC/PCWith
BlueMetalPBDuplex/QuadplexLC/APCWithout



LC APC Fiber Connectors Certificates:
Quality Control Standard: Insertion Loss(IL)≤0.2dB(APC), IL<=0.3dB(PC); Return Loss(RL)≥50dB(PC), RL≥65dB(APC);
Certificates: We have passed CPR, ISO, CE certificates;

Packing Information of LC APC Fiber Connectors :
Suitable quantity per opp bag, suitable quantity per carton, carton size: 46cm x 46cm x 26cm;
We also provide OEM packaging carton service.

Production lead time, Delivery Ways and After-service of the LC APC Fiber Connectors :
Production lead time: 7~15 days after deposit;
Delivery way: By International Express e.g. Fedex, DHL, UPS, TNT, etc., or by air, by train, by sea etc;
Expiration date: 5 years; Usage life: 10 years.
Specific person to follow up.

FAQ of the LC APC Fiber Connectors :
1, What is the product packing?
1 pcs/opp bag, suitable quantity per carton;
2, Do you supply separate parts and components?
Yes, separate parts and components are available.
3, Besides optic fiber components, I also have demand for other products, can you supply or source for us?
Yes, we will try our best to fulfil your demands according to your detailed requirements.
4, Can you do with our brand on the product?
Yes, of course.
5, Can you design products based on our requirements?
Yes, we have R&D team, and we can custom the product according to your requirements.
6, I ordered different products from other suppliers, can we send them to you, and you help arrange the shipment together for us?
Sure, no problem.
