SC Fiber Optic Jumper

SC Fiber Optic Jumper We are one the major manufacturers of SC Fiber Optic Jumper in China. We have devoted to fiber optic components for over 18 years since 2000. Our products are covering most of Europe market. We are hope to become your long-term business partner in China. Brief Product...

Chat Now

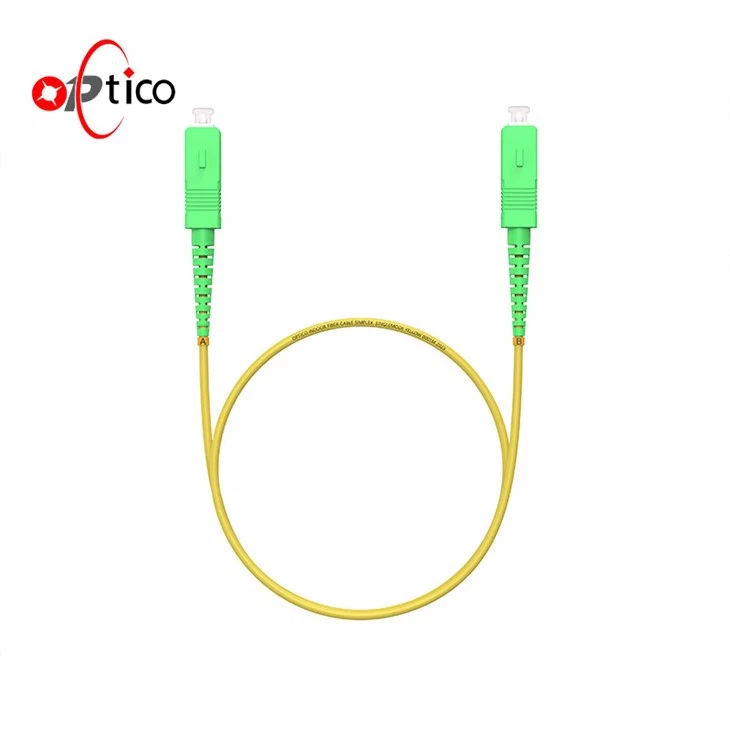

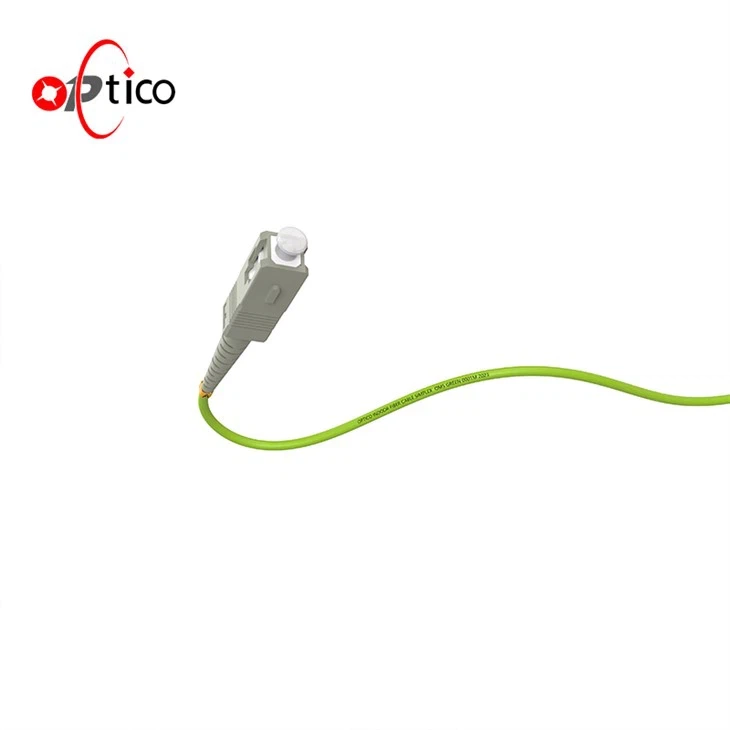

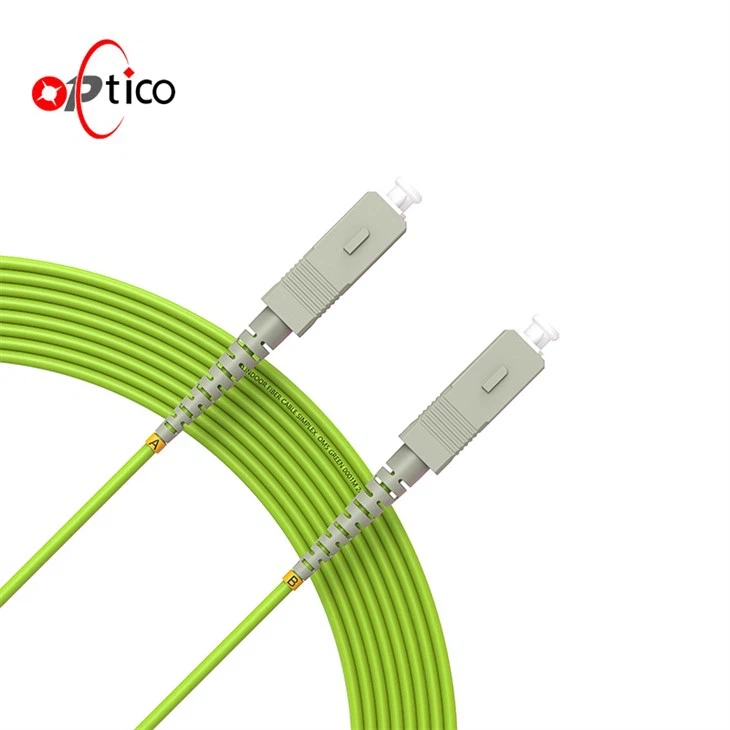

SC Fiber Optic Jumper
We are one the major manufacturers of SC Fiber Optic Jumper in China. We have devoted to fiber optic components for over 18 years since 2000. Our products are covering most of Europe market. We are hope to become your long-term business partner in China.

Brief Product Introduction of the SC Fiber Optic Jumper :
This SC Fiber Optic Jumper  is the high quality standard design for EU FTTH solution project. It is made of G657A2 LSZH fiber cable with low insertion loss(IL<=0.2dB)(APC) and high return loss (RL>=65dB)(APC) and up to at least 80% 3D test. We have devoted to fiber optic components for over 18 years since 2000. Our products are covering most of Europe market. We are hope to become your long-term business partner in China..


sc apc sc pc patch cord 2.jpg


Product Parameters of the SC Fiber Optic Jumper :


 Single modeMultimode
Insertion Loss≤0.2dB(APC), IL<=0.3dB(PC);≤0.25dB
Return Loss≥50dB(PC), ≥65dB(APC)
Repeatability≤0.1
Durability≤0.2dB typical change, 1000 matings
Interchangeability≤0.2dB
Tensile strength>70N
Operating Temperature-40°C to +85°C-20°C to +70°C


Product Characters of SC Fiber Optic Jumper :
FTTH solution connection;
Telecommunication networks;
Active device termination;

Product Qualification of the SC Fiber Optic Jumper :
Fiber optic able type: G657A2, LSZH;
Quality Control Standard: Insertion Loss(IL)≤0.2dB(APC), IL<=0.3dB(PC); Return Loss(RL)≥50dB(PC), RL≥65dB(APC); 80% products 3D test;
Certificates: We have passed CPR, ISO, CE certificates.

FAQ of the SC Fiber Optic Jumper :
1, What is the packing?
Usually, 1 item/opp bag; suitable quantity per cartoon;
2, I don't have forwarders, can you choose the economic shipping way for us?
Sure, we have cooperated forwarders, and we will choose the ideal shipping way for you.
3, How long will my cargo be ready?
7~15days after deposit and order confirmed;
4, What kinds of certificate do you get?
ISO, CPR, CE certificates.
5, Can mix different models in my order?
Yes, you can.

6, What is the fiber type that you usually use for patch cord?

The usually used ones are G657A2, G652D.

7, What is your company advantage?

A, high quality standard on products. Our product meets ISO, CPR, CE, RoHS, Telcordia, UL certificate standards.

B, Fast production lead time: 7~15 days, based on good quality standard.

C, Best service for pre-sales/after-sale, fast reaction and responsible solutions for any problems.

8, What is your MOQ? Can we place a trial order less than the MOQ?

Yes, sure. Trial order is acceptable.


Hot Tags: sc fiber optic jumper, China, manufacturers, suppliers, factory, wholesale, customized
