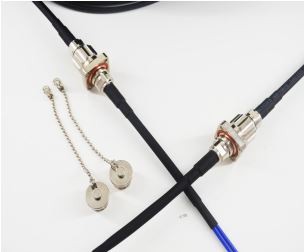

ODC Fiber Patch Cord Type A

ODC Fiber Patch Cord Type A

ODC fiber optic patch cables are used in outdoors, which suitable for different environment and large temperature range, typically used in FTTA. And ODC connector is next generation connectors for wireless base station application inclouding WCDMA, TD-SCDMA, CDMA200, Wi-MAX, GSM. ODC provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of shock, strongest vibration, or accidental misuse.

Description:

        ODC fiber optic patch cables are used in outdoors, which suitable for different environment and large temperature range, typically used in FTTA. And ODC connector is next generation connectors for wireless base station application inclouding WCDMA, TD-SCDMA, CDMA200, Wi-MAX, GSM. ODC provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of shock, strongest vibration, or accidental misuse.


Application:

Telecommunication
 CATV
LAN & WAN
Network
 Broadband
 FTTP


Features:

Easy and safe intallation Screwed locking mechanism

2 fibers singlemode

Extension connector for cable chaining

Built-in plug with square or hexagonal flange

Water proof protection caps

EMI protected, ROHS compliant

Compact design with 2x1.25mm ferrules

Water proof, dust proof and corrosion resistant


Specification:

Item

Parameters

Fiber Type

G657A2

Connector Type

LC

Jacket Materials

PE

Core Quantity

2

Ferrule   Materials

Ceramic

Insertion   Losss(dB)

0.2dB

TIA/EIA-455-107

(PC/UPC)

Return Loss(dB)

65dB

Exchangeability

0.2dB

Operating   Temperature (° C)

-40~ + 85

Storage   Temperature (° C)

-40 ~ +85

Package

1unit/bag

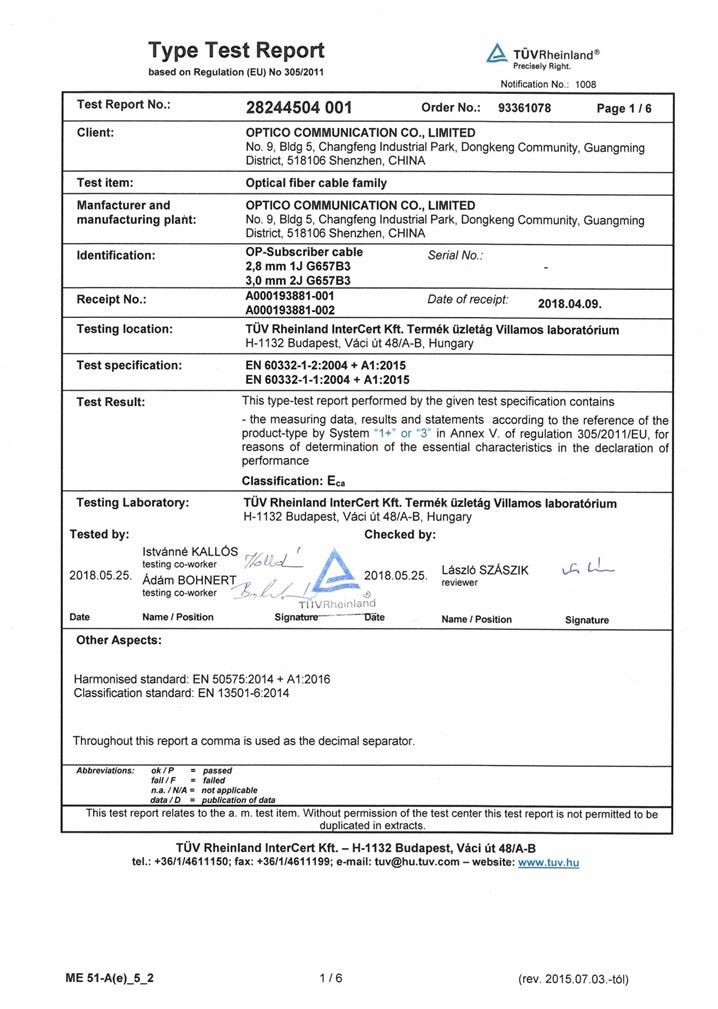

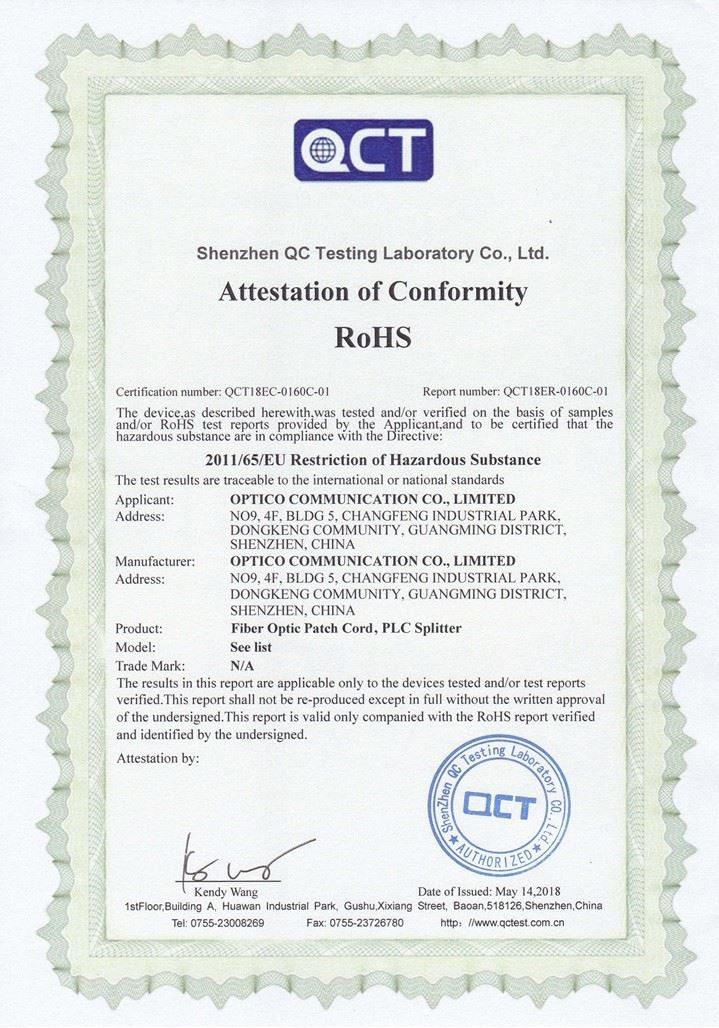

Certificates:


Specification:

Optico Communication Workshop(1).jpg

fiber optic factory.jpg
