Networks FC Pigtail

Networks FC Pigtail Optico Communication Co., Ltd is one of the leading factories of Networks FC Pigtail in Shenzhen, China. Our company Established in 2000. We have made endeavor to fiber optic products for more than 18 years. Our products main market are covering most of Europe market. We are...

Chat Now

Networks FC Pigtail
Optico Communication Co., Ltd is one of the leading factories of Networks FC Pigtail in Shenzhen, China. Our company Established in 2000. We have made endeavor to fiber optic products for more than 18 years. Our products main market are covering most of Europe market. We are expecting to establish long-term mutual-benefit business relationship with you.

Brief Product Introduction of the Networks FC Pigtail :
Manufactured under high quality standard, Networks FC Pigtail  is designed for EU FTTX solution project. It is made of G657A2 LSZH fiber cable and connectors with low insertion loss(IL<=0.2dB)(APC) and high return loss (RL>=65dB)(APC) and up to at least 80% 3D test. Our company Established in 2000. We have made endeavor to fiber optic products for more than 18 years. Our products main market are covering most of Europe market. We are expecting to establish long-term mutual-benefit business relationship with you.

Product Parameters of the Networks FC Pigtail :


 Single modeMultimode
Insertion Loss≤0.2dB(APC), IL<=0.3dB(PC);≤0.25dB
Return Loss≥50dB(PC), ≥65dB(APC)
Repeatability≤0.1
Durability≤0.2dB typical change, 1000 matings
Interchangeability≤0.2dB
Operating Temperature-40°C to +85°C-20°C to +70°C


Product Characteristic of Networks FC Pigtail:

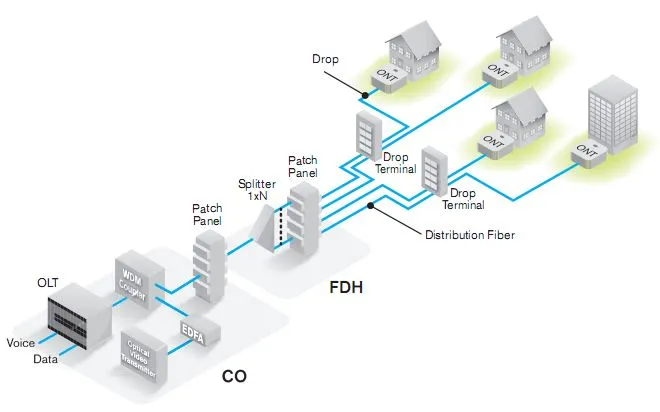

FTTX solution connection;
CATV connection;
Telecommunication networks;
Active device termination;

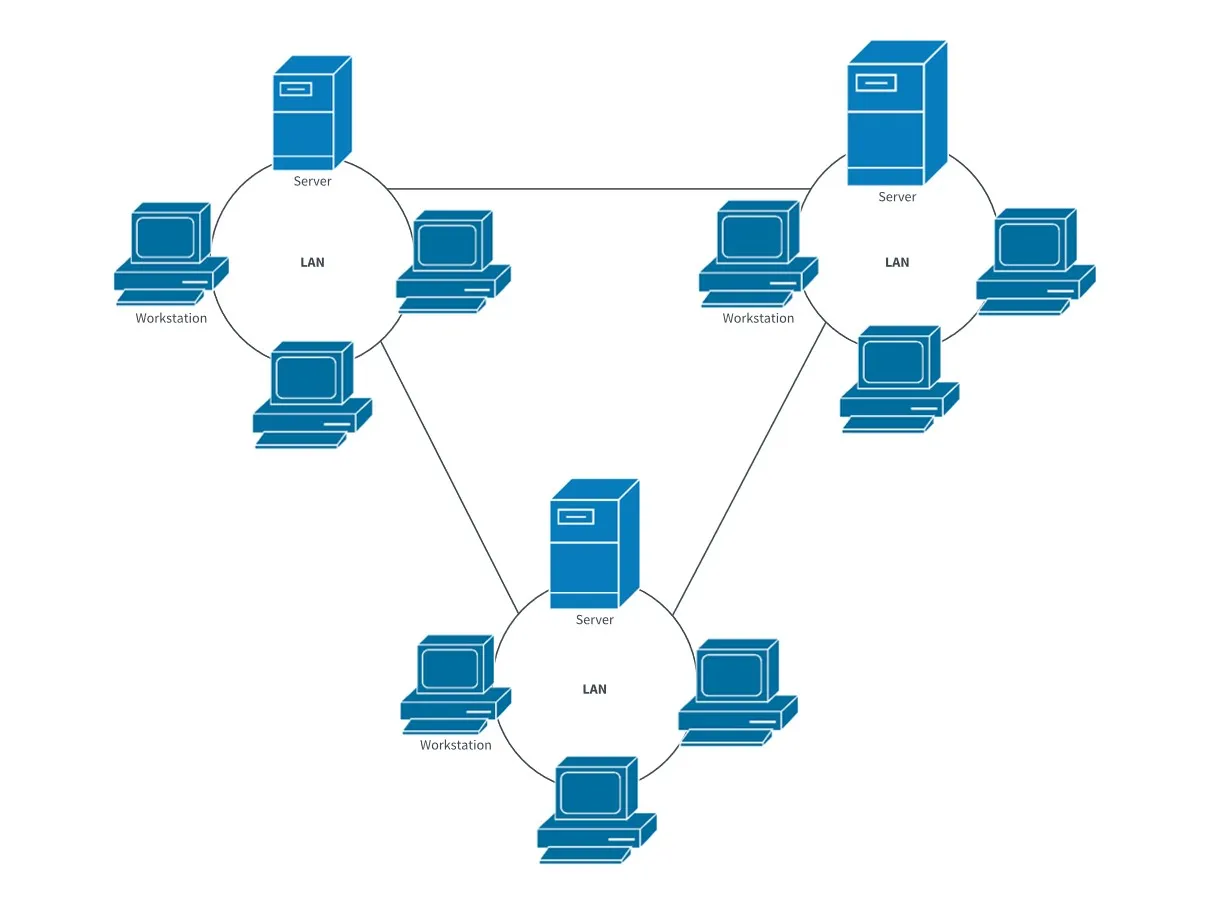

Local Area Networks(LANS);
Data processing networks;
Test equipment;
Premise installations;
Wide Area Networks(WANS);

Product Details Ordering Choice of the Networks FC Pigtail :
Available cable colors: Black, brown, red, white, ivory, etc.;
Available cable sizes: 0.9mm, 2.0mm, 2.8mm, 3.0mm, 4.0mm;
Available boot colors: Black, blue, yellow, green, red, white, gray, etc.
Available Fiber Type: 9/125μm SM, 50/125μm SM, 62.5/125μm SM;
Connector types: FC/PC, FC/APC, FC/UPC;
Cable length: 1.5m, 2m, 2.5m, 10m, 20m, 30m, etc; Or customized cable length.
We also provide custom cable printing service.

Product Qualification of the Networks FC Pigtail :
Fiber optic able type: SM Simplex G657A2, LSZH;
Quality Control Standard: Insertion Loss(IL)≤0.2dB(APC), IL<=0.3dB(PC); Return Loss(RL)≥50dB(PC), RL≥65dB(APC); 80% products 3D test;
Certificates: We have passed CPR, ISO, CE certificates; Our product also meets ROHS, Telcordia, UL certificate standards.

Production lead time, Delivery Ways and After-service of the Networks FC Pigtail :
Specific person to follow up.
Production lead time: 7~15 days after deposit;
Delivery way: By International Express e.g. DHL, Fedex, TNT, etc., or by air, by train, by sea etc;
Expiration date: 5 years; Usage life: 10 years.

FAQ of the Networks FC Pigtail :
1, Can I customize the printing part on the cable?
Yes, you can decide the printing part content on the cable.
2, What is your product advantage?
High quality standard. Take patch cord for example, our common standard is IL<=0.2dB, RL>=60dB for each connector; up to 80% 3D testing.
3, What is your company advantage?
A, high quality standard on products. Our product meets ISO, CPR, CE, RoHS, Telcordia, UL certificate standards.
B, Fast production lead time: 7~15 days, based on good quality standard.
C, Best service for pre-sales/after-sale, fast reaction and responsible solutions for any problems.
4, How do you control your product quality?

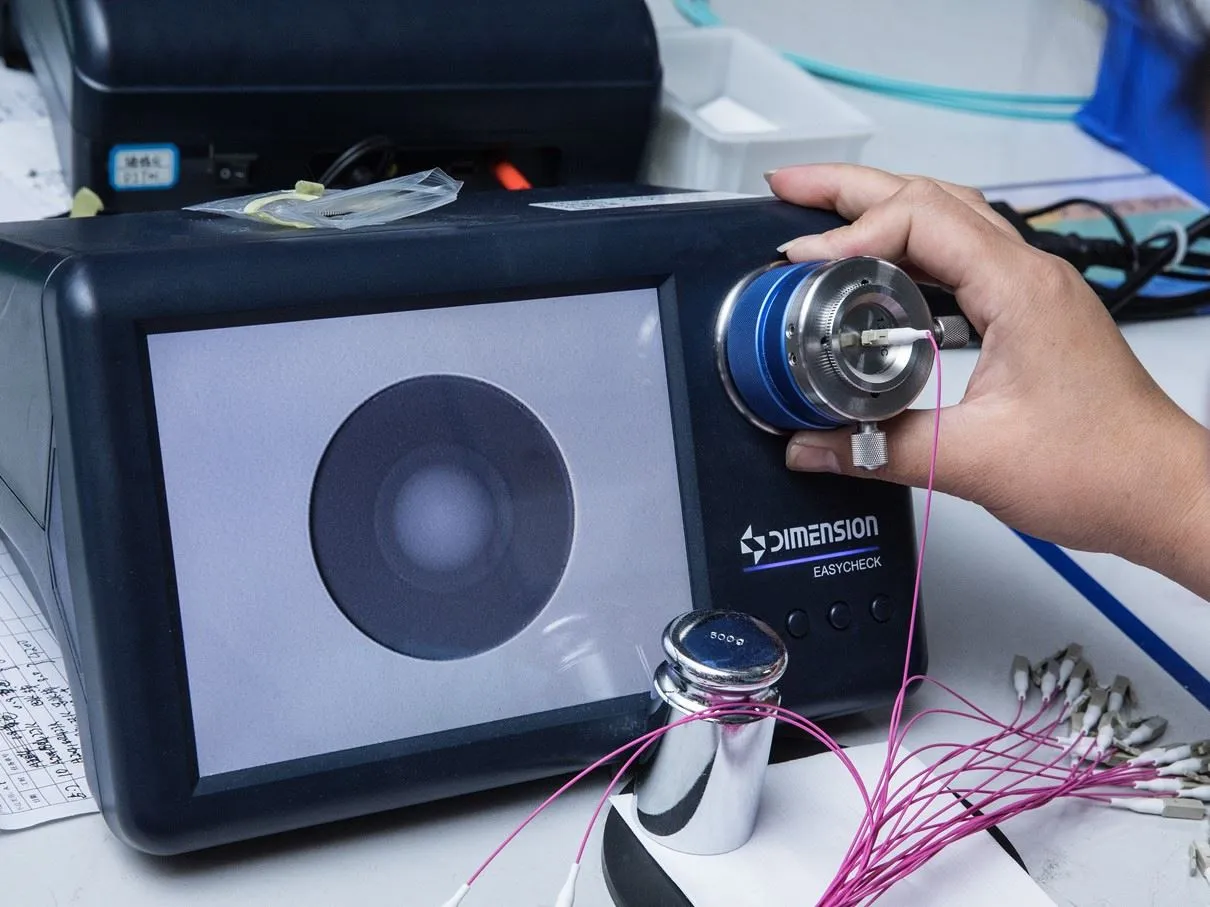

We have a thorough quality control system. Raw material inspection, inspection during production by specific staffs, parameters testing by machines, finished product inspection by QC, inspection during packaging, and packing inspection before shipment.
5, I want to be your regional agency, what should I do?
Regional agency will be authored after detailed negociation and files confirmed.
