24 Cores Horizontal Splice Closure

Horizontal fiber optic cable splice closure, also known as optical cable connection box and barrel, is where the cable end access, and then access the optical switch through fiber jumpers. It can prevent the materials aging caused by heat, cold, light, oxygen and microorganisms in nature, And has excellent mechanical strength.

Chat Now

24 cores horizontal splice closure



Horizontal fiber optic cable splice closure, also known as optical cable connection box and barrel, is where the cable end access, and then access the optical switch through fiber jumpers.



It can prevent the materials aging caused by heat, cold, light, oxygen and microorganisms in nature,

And has excellent mechanical strength. The rugged splice closure shell and the main structural components can withstand the harshest environmental changes, and play a role of flame retardant, waterproof. It can protect the fiber cable from vibration, impact, cable stretching, distortion and so on.



Quick Details:

Place of Origin: Shenzhen, China (Mainland);

Brand Name: OPTICO;

Outside dimension (L*W*H): 420x180x125 (mm);

Weight (excluding outside box): 2650g-2975g;

Number of inlet/out ports6: 3 in 3 out;

Fiber Counts: Bunchy: 12-96 (Cores); Ribbon: max. 144(Cores);

Diameter of Fiber Cable: 13mm-20mm;

Material: PC;

NO.of trays: 1-4;

Sealing Method: mechanical;

Working Temperature: -40℃ to +70℃;

Certrificate: ISO9001 ROHS;

Packaging Details: 1pcs/inner box, 10 pcs/carton;

Delivery Time: Shipped in 7~15 days after down payment;

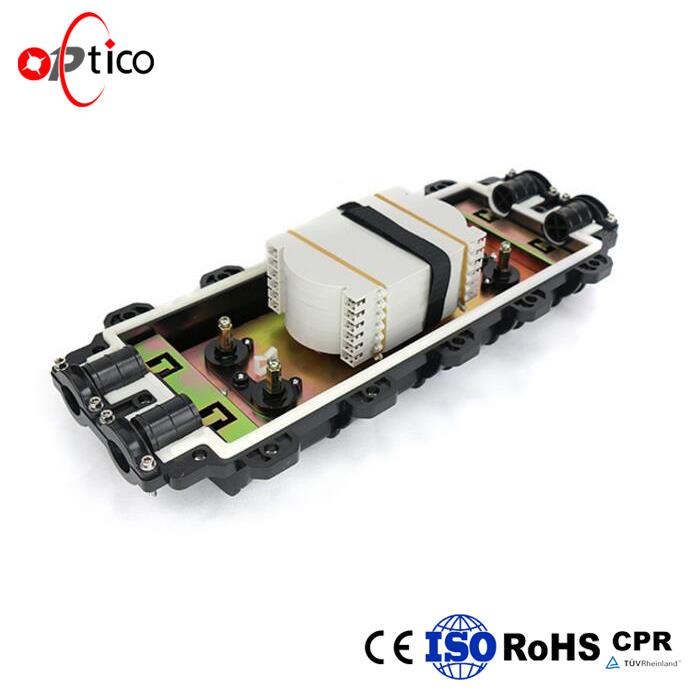

Fiber Optic Splice Closure 2.jpg



24 cores horizontal splice closure



Product Description:

The 24 cores horizontal splice closure:

The closures are applicable to ribbon type optical cable and common optical cable. The splice trays inside the closure are turnable like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.

The closure is of small volume, big capacity and convenient maintenance.

The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance. The casing can
be opened repeatedly without air leakage. No special tools are required. The operation is easy and simple.The air  valve is provided for the closure and used to check the sealing performance.



Use

24 cores horizontal splice closure used for a variety of fiber optic cable connection ways e.g. aerial, pipelines, direct burial etc, direct and branch connections.

The continuation of structured cable terminal room.

The optical cable splice box is usually suitable for indoor or non-open-air outdoor use, not suitable for outdoor use, if not, should take protective measures. Operating temperature: Indoor: -5 ℃ ~ +40 ℃; Outdoor: -20 ℃ - +60 ℃.



Dimensions and Capability:

Dimensions ( L*W*H):  420x180x125 (mm)

Maximum Capacity: Bundle – 96 Cores; Ribbon – 320 Cores.

Cable Entrances: 3 In 3 Out

Diameter of Cable:  Φ13mm - Φ20mm.

NO. of trays:  1-4

Calssification:holding screw style

Operation conditions:

Temperatures: -40℃~+60℃

Humidity: ≤95% (at 40℃)

Air Pressure: 70kPa ~106kPa
