48 Fiber Horizontal Splice Closure

48 Fiber Horizontal Splice Closure Used for fiber optic cable with various structures direct connection and brand connection via the ways of aerial, pipelines, direct burial etc.The continuation of structured fiber cables in the terminal rooms.

Chat Now

48 Fiber Horizontal Splice Closure


Quick Details:

Place of Origin: Shenzhen, China (Mainland);

Brand Name: OPTICO;

Outside dimension (L*W*H): 420x180x125 (mm);

Weight (excluding outside box): 2650g-2975g;

Number of inlet/out ports 6: 3 in 3 out;

Fiber Counts:

Bunchy:12-96 (Cores);Ribbon: max. 144(Cores);

Diameter of Fiber Cable: 13mm-20mm;

Material: PC;

NO.of trays: 1-4;

Sealing Method: mechanical;

Working Temperature: -40℃ to +65℃;

Certrificate: ISO9001 ROHS;

Packaging & Delivery

Packaging Details: Each Closure have individual box Size:47.5*19*14(cm);
10 pcs closure packed into one out carton box Size:71*40*49(cm);

Delivery Time: Shipped in 10 days after payment;

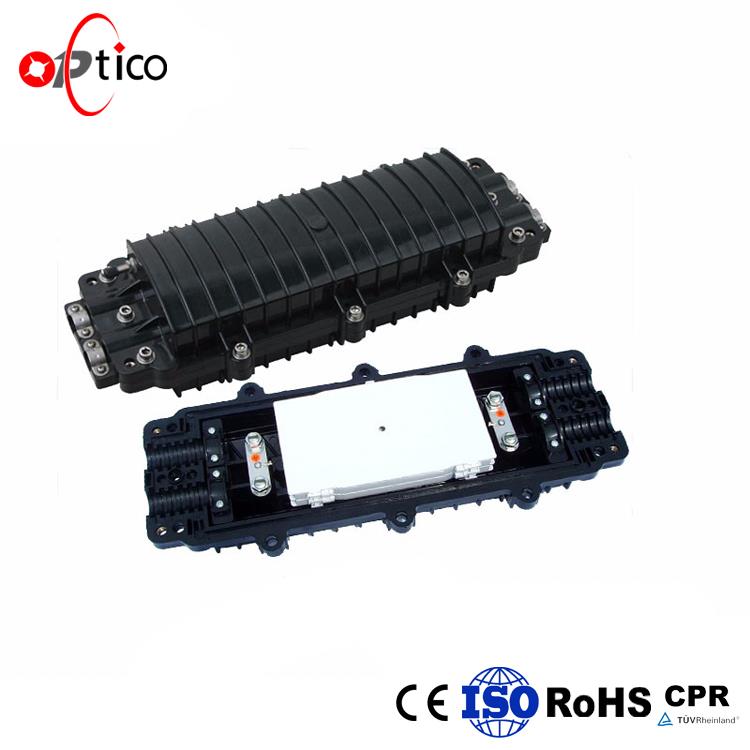

48 Fiber Horizontal Splice Closure 1.jpg


Ourdoor horizontal type 48 96 fibers optical fiber cable joint closure



Dimensions and Capability:

Dimensions ( L*W*H):  420x180x125 (mm);

Maximum Capacity: Bundle – 96 Cores; Ribbon – 320 Cores;

Cable Entrances: 3 In 3 Out;

Diameter of Cable:  Φ13mm - Φ20mm;

NO. of trays:  1-4 trays;

Calssification: holding screw style;

Operation conditions:

Temperatures: -40℃~+60℃;

Humidity: ≤95% (at 40℃);

Air Pressure: 70kPa ~106kPa ;



Technical Specifications of 48 Fiber Horizontal Splice Closure:

Seal performance: after the box is sealed, inflate to 100kPa inwards (inflation only apply to the models with the air hole), and then soak it in the water of normal temperature, after 15 minutes of steady observation, there is no bubble to overflow.

Insulation resistance: the insulation resistance between the metal work piece and the earth is greater than 20kMΩ.

Pressurization: there is no breakdown or flashover under 15kVdc/1min between the metal work piece and the earth.

The curvature radius of the fiber 40mm, without extra loss inside the splice tray.

It can bear the axial tensile strength no less than 1000N.

Lifetime: 25 years.

Other performances are all in accordance with the requirement of standard YD/T814-1998.
