DWDM

DWDM Device Established in 2000, Optico Communication Co., Ltd is one of the leading fiber optic cable components supplier producing DWDM Device in Shenzhen, China. Optico has in this field of fiber optic components for over 18 years. Our products have been successfully exported to more than 30 countries, with main market covering most of Europe. We are expecting to become your long-term business partner in China.

DWDM Device



Product Introduction of the DWDM Device:

DWDM Device

DWDM,Short for Dense Wavelength Division Multiplexing, an optical technology used to increase bandwidth over existing fiber optic backbones.

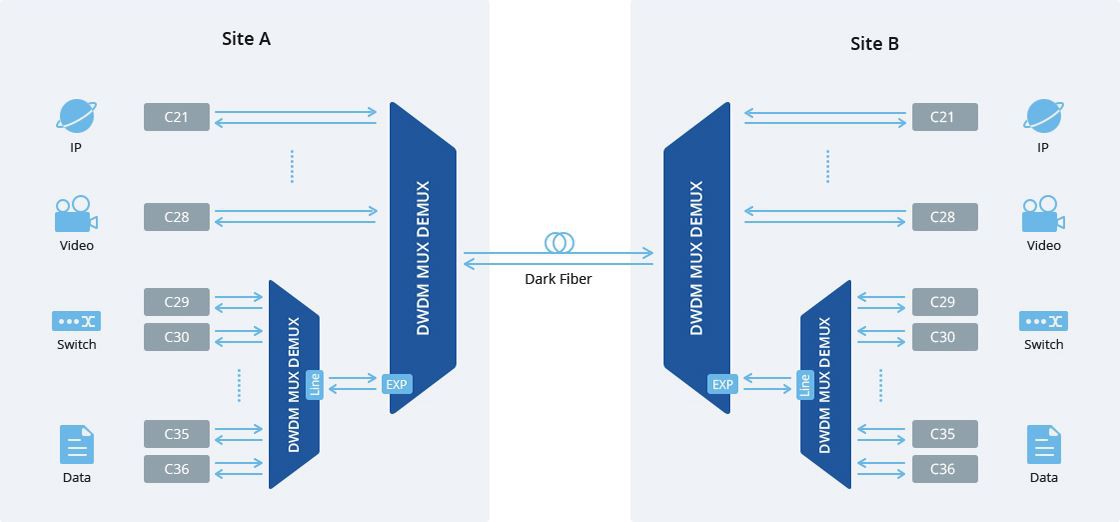

DWDM works by combining and transmitting multiple signals simultaneously at different wavelengths on the same fiber. In effect, one fiber is transformed into multiple virtual fibers. So, if you were to multiplex eight 2.5 Gbps signals into one fiber, you would increase the carrying capacity of that fiber from 2.5 Gb/s to 20 Gb/s. Currently, because of DWDM, single fibers have been able to transmit data at speeds up to 400Gb/s.

A key advantage to DWDM is that it’s protocol- and bit-rate-independent. DWDM-based networks can transmit data in IP, ATM, SONET /SDH, and Ethernet, and handle bit rates between 100 Mb/s and 2.5 Gb/s. Therefore, DWDM-based networks can carry different types of traffic at different speeds over an optical channel.

Optico Communication Co., Ltd provides 1×4, 1×8, 1×16, 1×32, 1×40 100 GHz and 200 GHz DWDM Mux/Demux Module and 1 channel, 2 channel, 4 channel 100 GHz and 200 GHz DWDM Add/Drop multiplexer module. Our DWDM modules are configured by number of channels for any customer-specify channel plan, and can be integrated with taps and detectors for a complete DWDM solution. And we can provide high quality DWDM products with different style, such as ABS box, LGX box, 19 inch Rack-mount, customized design.



DWDM 100Ghz Module 8CH.jpg

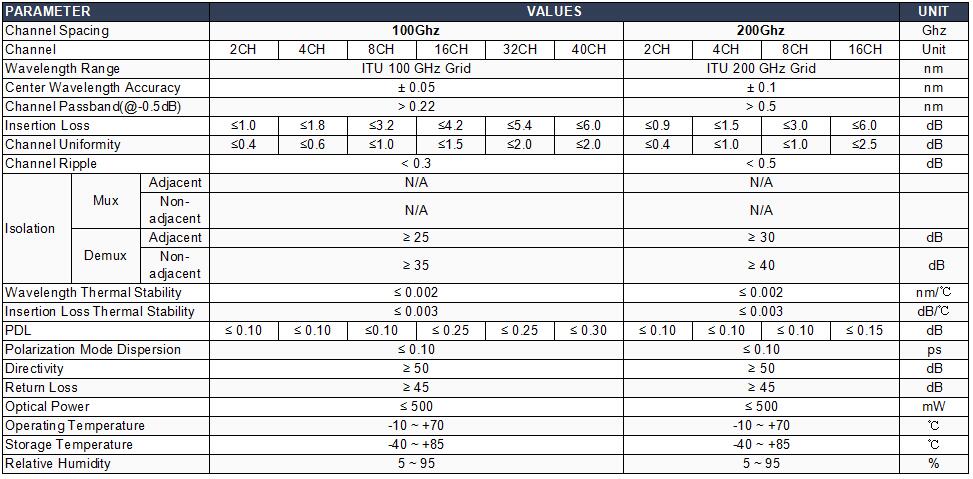

Product Parameters /Specifications/Specs of the DWDM Device :

DWDM specificaation.jpg

DWDM Notes.jpg



DWDM Device Characters and Applications:

DWDM characteristic and applications.jpg



DWDM Mux/Demux/OADM Housing Packings:

 DWDM types.jpg



Packing Details of DWDM Device:

Standard packaging; Customized packaging service is also available.



Production lead time, Delivery Ways of the DWDM Device :

Production time: 7~10 days after deposit;

Delivery way: By International Express, by train, by sea, or by air, etc;

CWDM shipping ways.jpg


DWDM Device Meeting Certificates:

ISO & CE & CPR certificates.jpg


Company Strength:

Optico Communication Workshop(1).jpgfiber optic factory.jpg
