Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of sc upc optical fast connector in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
SC UPC Optical Fast Connector
Place of Origin: Shenzhen, China
Brand Name: OPTICO
Model Number: SC UPC Fiber Optic Fast Connector
Product name: Fiber Fast Connector
Connector Type: SC UPC
Ferrule: UPC or APC
Fiber Mode: SM MM
Application: FTTH
Insertion Loss: 0.3dB~0.5dB
Return Loss: 50dB
Service Life: 20 Years
Sample status: In stock
Supply Ability: 100000 pcs/month

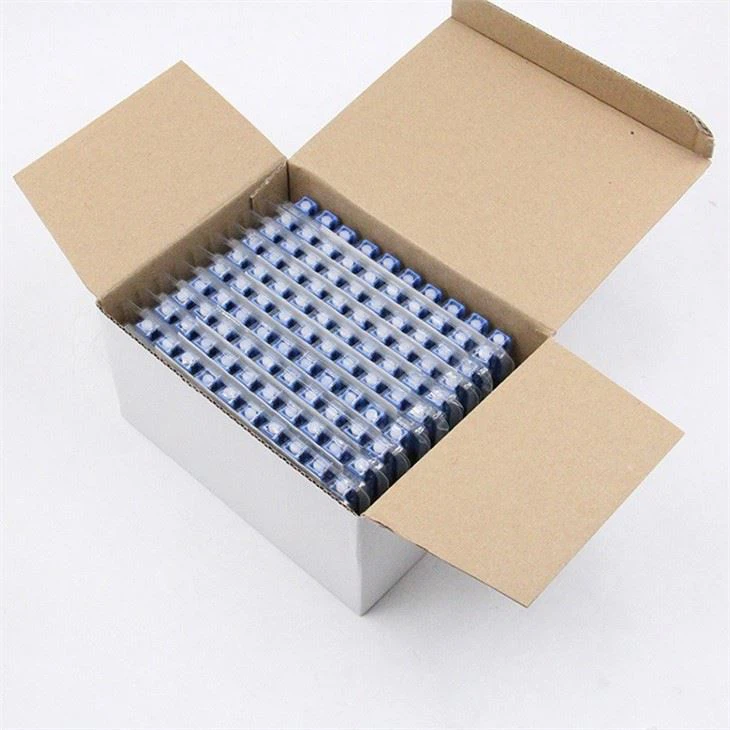

Packaging Details: 10pcs/blister
Port: shenzhen
SC UPC Optical Fast Connector
The SC/UPC fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical
fibers.
Product Name | fiber fast connector |
Connector Type | SC |
Ferrule | UPC or APC |
Fiber Mode | SM MM |
Application | FTTH |
Insertion Loss | 0.36DB |
Return Loss | ≤ -40dB |
Operation Temperature | -40~+75℃ |
Connection Steps:
1. Optical fiber quick connector is a very innovative field termination connector, which contains factory-installed optical fiber, pre-polished ceramic ferrule and a mechanical connection mechanism.
2. When terminating, only the incoming optical fiber or indoor optical fiber is inserted into the mechanical splicing mechanism, no other tools are needed, and the termination process only takes about 2 minutes, which greatly saves installation time.
3. The ferrule and end face of the optical fiber quick connector have been pre-polished and pre-polished before leaving the factory. The mechanical connection mechanism is located at the end of the ferrule to fix the inserted fiber.
4. The mechanical splicing mechanism is mainly composed of a V-shaped groove and a clamping element; when the fiber needs to be inserted, the V-shaped groove is opened with a wedge clamp to facilitate the smooth insertion of the fiber.
5. When the optical fiber is inserted into the V-shaped groove and fixed, just pull out the wedge clamp from the V-shaped groove.
Certificates:

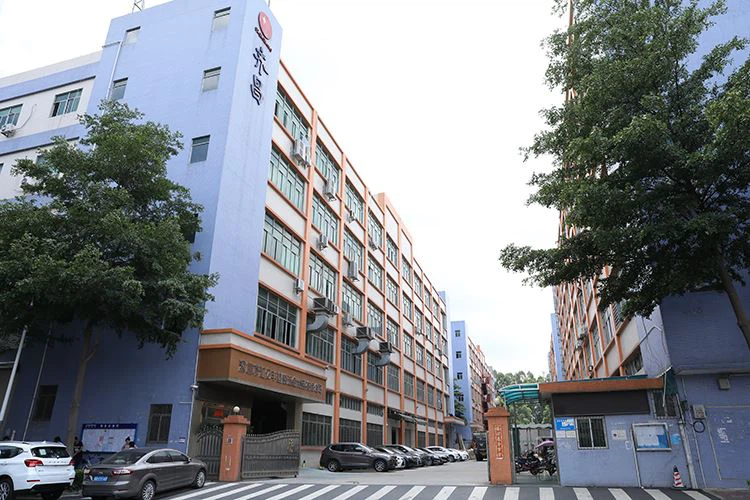

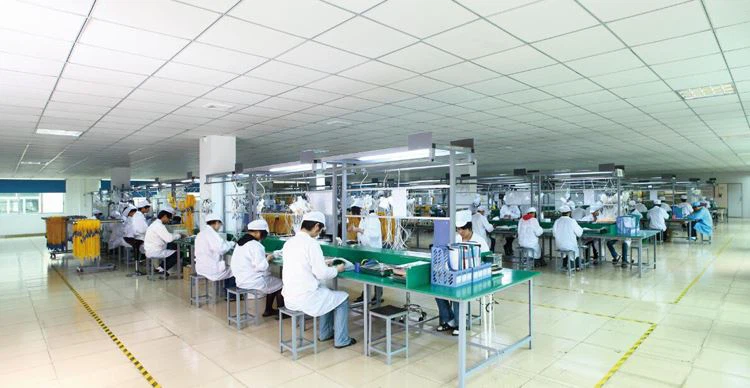

Factory:
