  • 8 Channel CCWDM Mux Demux
    8 Channel CCWDM Mux Demux
    Low IL
    Low PDL
    Compact Size
    High Channel Isolation
    Epoxy free in optical path
    High Reliability and Stability
    Wide Operating Wavelength:From 1260nm to 1620nm
    read more
  • Mux Demux 18CH CWDM
    Mux Demux 18CH CWDM
    Low Insertion Loss
    Low PDL
    Epoxy free in optical path
    High Isolation:Independent wavelengths with no crosstalk
    Single-fiber capacity expansion: Simultaneous transmission of 18...
    read more
  • CWDM
    CWDM
    Optico Communication Co., Ltd is one of the leading fiber optic cable components manufacturer supplying CWDM Device in Shenzhen, China. Established in 2000, OPTICO have devoted to fiber optic...
    read more
  • DWDM
    DWDM
    DWDM Device Established in 2000, Optico Communication Co., Ltd is one of the leading fiber optic cable components supplier producing DWDM Device in Shenzhen, China. Optico has in this field...
    read more
  • 18CH CCWDM Module With Connector
    18CH CCWDM Module With Connector
    This type CCWDM offer high stability and reliability, and has small package size. Its operating wavelength is from 1270nm to 1610nm which totally offer 18 channels with 20nm channel spacing.
    read more
  • 200G DWDM Module
    200G DWDM Module
    Optico 200GHz dense wavelength division multiplexer (DWDM) provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy...
    read more
  • 1x8 CWDM Demux+Mux Module
    1x8 CWDM Demux+Mux Module
    1x8 CWDM Demux+Mux Module Description: OpticoI's Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding...
    read more
  • Cwdm 8
    Cwdm 8
    CWDM Mux/Demux Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offer high stability and reliability, and has small package size. Its operating...
    read more
  • CWDM Mux Demux Isolator
    CWDM Mux Demux Isolator
    The CWDM Mux / Demux module is based on dielectric thin-film technology designed for integration in low cost Metro and Access networks. These include applications such as fiber to the home,...
    read more
  • 8ch CCWDM Module
    8ch CCWDM Module
    4/8 Channels CCWDM Mux Demux, Single Fiber, Side A, Optional Connectors and Housing Compact coarse wavelength division multiplexers (CCWDM Mux) is the mini version of CWDM Mux. Compared with...
    read more
  • 16ch CCWDM Module
    16ch CCWDM Module
    16-Channel CWDM Mux/Demux Module is based on thin film filter technology. They can be used in high-power applications in WDM systems. The products adopt hermetic package craft and environmental...
    read more
  • FWDM Module
    FWDM Module
    FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates...
    read more
First 1234567 Last


WHAT IS DWDM?

DWDM (Dense Wavelength Division Multiplexing) and CWDM (Coarse Wavelength Division Multiplexing) enable carriers to deliver more services over their existing fiber infrastructure by combining multiple wavelengths on a single fiber. OPTICO offers a line of DWDM/CWDM solutions and products that help alleviate your fiber exhaust in a reliable, cost-efficient way.

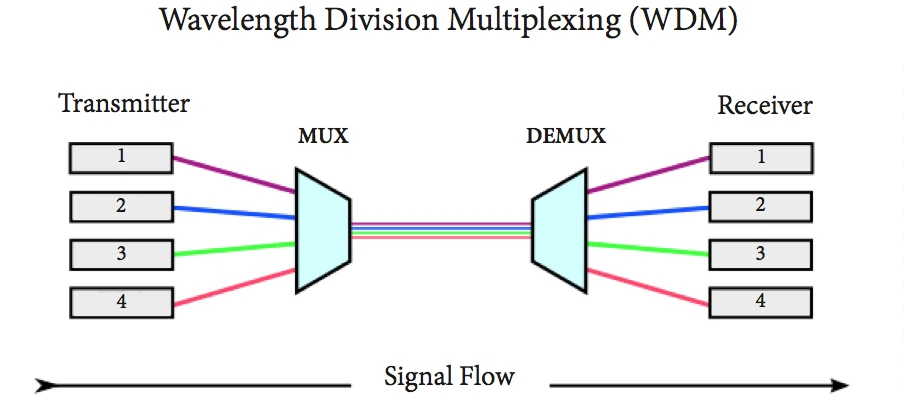

wdm-chart-final



DWDM ITU Channels Overview



ITU G.694.1 standard DWDM region is from 1528.77 nm to 1563.86 nm that resides mostly within the C band. DWDM channel plan varies, but a typical DWDM system would use 40 channels at 100 GHz (0.8nm) spacing or 80 channels with 50 GHz (0.4nm) spacing. At present, DWDM systems based on 100 GHz DWDM C-Band typically adopt a DWDM channel plan with channels 17 through to 61. The complete channel grid for 100GHz DWDM and 50GHz DWDM is shown below.

DWDM 100GHz ITU Grid





Channel Frequency(GHz) Wavelength(nm) Channel Frequency(GHz) Wavelenth(nm)
1 190100 1577.03 37 193700 1547.72
2 190200 1576.2 38 193800 1546.92
3 190300 1575.37 39 193900 1546.12
4 190400 1574.54 40 194000 1545.32
5 190500 1573.71 41 194100 1544.53
6 190600 1572.89 42 194200 1543.73
7 190700 1572.06 43 194300 1542.94
8 190800 1571.24 44 194400 1542.14
9 190900 1570.42 45 194500 1541.35
10 191000 1569.59 46 194600 1540.56
11 191100 1568.11 47 194700 1539.77
12 191200 1567.95 48 194800 1538.98
13 191300 1567.13 49 194900 1538.19
14 191400 1566.31 50 195000 1537.4
15 191500 1565.5 51 195100 1536.61
16 191600 1564.68 52 195200 1535.82
17 191700 1563.86 53 195300 1535.04
18 191800 1563.05 54 195400 1534.25
19 191900 1562.23 55 195500 1533.47
20 192000 1561.41 56 195600 1532.68
21 192100 1560.61 57 195700 1531.9
22 192200 1559.79 58 195800 1531.12
23 192300 1558.98 59 195900 1530.33
24 192400 1558.17 60 196000 1529.55
25 192500 1557.36 61 196100 1528.77
26 192600 1556.55 62 196200 1527.99
27 192700 1555.75 63 196300 1527.22
28 192800 1554.94 64 196400 1526.44
29 192900 1554.13 65 196500 1525.66
30 193000 1553.33 66 196600 1524.89
31 193100 1552.52 67 196700 1524.11
32 193200 1551.72 68 196800 1523.34
33 193300 1550.92 69 196900 1522.56
34 193400 1550.12 70 197000 1521.79
35 193500 1549.32 71 197100 1521.02
36 193600 1548.51 72 197200 1520.25



DWDM 50GHz ITU Grid

Channel Frequency(GHz) Wavelength(nm) Channel Frequency(GHz) Wavelength(nm)
1 190.1 1577.03 37 193.7 1547.72
1.5 190.15 1576.61 37.5 193.75 1547.32
2 190.2 1576.2 38 193.8 1546.92
2.5 190.25 1575.78 38.5 193.85 1546,52
3 190.3 1575.37 39 193.9 1546,12
3.5 190.35 1574.95 39.5 193.95 1545.72
4 190.4 1574.54 40 194 1545.32
4.5 190.45 1574.13 40.5 194.05 1544.92
5 190.5 1573.71 41 194.1 1544.53
5.5 190.55 1573.3 41.5 194.15 1544.13
6 190.6 1572.89 42 194.2 1543.73
6.5 190.65 1572.48 42.5 194.25 1543.33
7 190.7 1572.06 43 194.3 1542.94
7.5 190.75 1571.65 43.5 194.35 1542.54
8 190.8 1571.24 44 194.4 1542.14
8.5 190.85 1570.83 44.5 194.45 1541.75
9 190.9 1570.42 45 194.5 1541.35
9.5 190.95 1570.01 45.5 194.55 1540.95
10 191 1569.59 46 194.6 1540.56
10.5 191.05 1569.18 46.5 194.65 1540.16
11 191.1 1568.11 47 194.7 1539.77
11.5 191.15 1568.36 47.5 194.75 1539.37
12 191.2 1567.95 48 194.8 1538.98
12.5 191.25 1567.54 48.5 194.85 1538.58
13 191.3 1567.13 49 194.9 1538.19
13.5 191.35 1566.72 49.5 194.95 1537.79
14 191.4 1566.31 50 195 1537.4
14.5 191.45 1565.9 50.5 195.05 1537
15 191.5 1565.5 51 195.1 1536.61
15.5 191.55 1565.09 51.5 195.15 1536.22
16 191.6 1564.68 52 195.2 1535.82
16.5 191.65 1564.27 52.5 195.25 1535.43
17 191.7 1563.86 53 195.3 1535.04
17.5 191.75 1563.45 53.5 195.35 1534.64
18 191.8 1563.05 54 195.4 1534.25
18.5 191.85 1562.64 54.5 195.45 1533.86
19 191.9 1562.23 55 195.5 1533.47
19.5 191.95 1561.83 55.5 195.55 1533.07
20 192 1561.42 56 195.6 1532.68
20.5 192.05 1561.01 56.5 195.65 1532.29
21 192.1 1560.61 57 195.7 1531.9
21.5 192.15 1560.2 57.5 195.75 1531.51
22 192.2 1559.79 58 195.8 1531.12
22.5 192.25 1559.39 58.5 195.85 1530.72
23 192.3 1558.98 59 195.9 1530.33
23.5 192.35 1558.58 59.5 195.95 1529.94
24 192.4 1558.17 60 196 1529.55
24.5 192.45 1557.77 60.5 196.05 1529.16
25 192.5 1557.36 61 196.1 1528.77
25.5 192.55 1556.96 61.5 196.15 1528.38
26 192.6 1556.56 62 196.2 1527.99
26.5 192.65 1556.15 62.5 196.25 1527.6
27 192.7 1555.75 63 196.3 1527.22
27.5 192.75 1555.34 63.5 196.35 1526.83
28 192.8 1554.94 64 196.4 1526.44
28.5 192.85 1554.54 64.5 196.45 1526.05
29 192.9 1554.13 65 196.5 1525.66
29.5 192.95 1553.73 65.5 196.55 1525.27
30 193 1553.33 66 196.6 1524.89
30.5 193.05 1552.93 66.5 196.65 1524.5
31 193.1 1552.52 67 196.7 1524.11
31.5 193.15 1552.12 67.5 196.75 1523.72
32 193.2 1551.72 68 196.8 1523.34
32.5 193.25 1551.32 68.5 196.85 1522.95
33 193.3 1550.92 69 196.9 1522.56
33.5 193.35 1550.52 69.5 196.95 1522.18
34 193.4 1550.12 70 197 1521.79
34.5 193.45 1549.72 70.5 197.05 1521.4
35 193.5 1549.32 71 197.1 1521.02
35.5 193.55 1548.91 71.5 197.15 1520.63
36 193.6 1548.52 72 197.2 1520.25
36.5 193.65 1548.11 72.5 197.25 1519.86

Optico can also provide corresponding DWDM transceivers available for c17-c61100 ghz DWDM wavelengths and c17-c6150 ghz DWDM wavelengths, including DWDM SFP, DWDM SFP + , DWDM XFP and tunable DWDM transceivers, supporting transmission distances up to 100 km. Tunable DWDM transceivers can support specific channels in DWDM optical networks, allowing remote wavelength variations in software.



CWDM ITU Channels Overview

ITU-T G.694.2 defines 18 wavelengths for CWDM transport ranging from 1270 to 1610 nm, spaced at 20 nm apart. The complete CWDM ITU grid is shown below. Each CWDM channel is transparent to the speed and type of data, meaning that any mix of SAN, WAN, voice and video services can be transported simultaneously over a single fiber or fiber pair.

Channel Wavelength(nm) Channel Wavelength(nm)
27 1270 47 1470
29 1290 49 1490
31 1310 51 1510
33 1330 53 1530
35 1350 55 1550
37 1370 57 1570
39 1390 59 1590
41 1410 61 1610
43 1430
45 1450

Optico also offers corresponding CWDM transceivers for all 18 CWDM wavelengths, including CWDM SFP, CWDM SFP + , CWDM XFP, and 3G SDI CWDM SFP modules. These CWDM transceivers can be used for data transmissions spanning 20 to 120 kilometers.
















Shenzhen Optico Communication Co., Ltd. is one of the leading wdm devices manufacturers and suppliers in China, featured by quality products and good service. Welcome to wholesale customized wdm devices form our factory. Also, free sample is available.
