Product Profile
The GPON 19" rack is used in series with integrated PLC and WDM products. It supports 1*N multi-channel CATV signal transmission, and meets the uplink and downlink transmission of independent IP signals for each channel; aggregate data, voice, and CATV The high broadband demand for integrated services is widely used in triple play, FTTX, etc.
OPTICO provides you GPON 19" rack based on planar waveguide technology and TFF (thin film filter) wavelength division multiplexing technology, with a variety of package sizes and a variety of channel numbers to choose from.
Product Features
High-density design: The rack has a maximum capacity of 288 fibers in a single rack, which makes it ideal for large-scale PON installations.
High Isolation Value
Multiple Channels Available
Redundancy Protection: A GPON 19" Rack has dual power supply, redundant fans, hot-swappable module, and port-level redundancy, all of which ensure that the system remains operational even in the event of hardware failures, power outages, or other disruptions.
Removable Front and Rear Covers: The removable front and rear covers provide easy access to the fiber optic connections, enabling fast and easy installation and maintenance.
Advanced Management Capabilities
Compatible with both GPON and EPON technologies: The rack is compatible with both GPON and EPON technologies, providing flexibility in network design.
Applications
Aggregate data
Voice
High broadband demand for CATV integrated services
FTTX

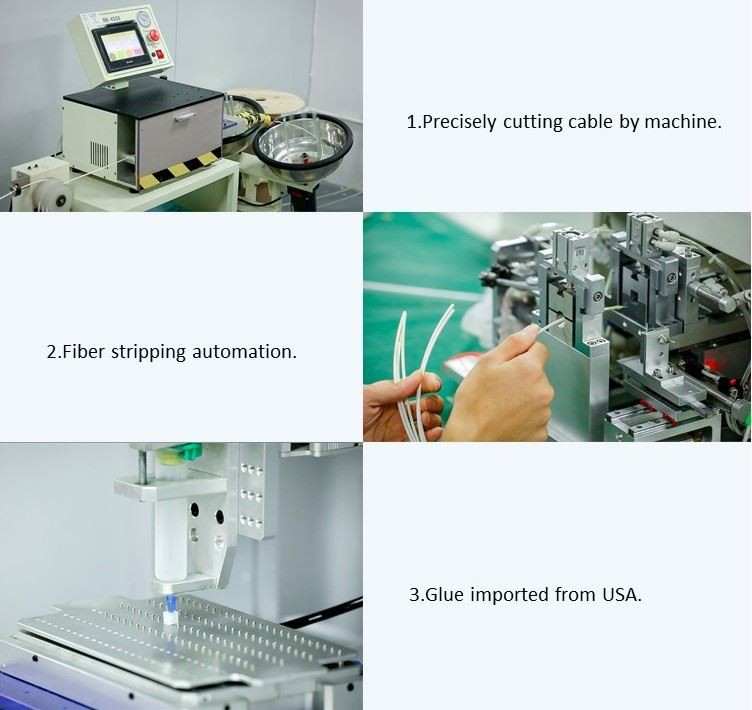

Production Details
Certificates
OPTICO Company
Delivery Ways
7-15 days are promised
Hot Tags: gpon 19 rack, China, manufacturers, suppliers, factory, wholesale, customized, 1U MTP Panel, MPO LC Duplex Casstte Module, 12 Port MTP Panel, MPO 12 Fibers Cassette Module
| Parameter | Unit | GPON 19” Rack | |||
| Aisle | CH | 16 | 32 | 64 | 128 |
| CATV signal wavelength | nm | 1540~1560 | |||
| IP signal wavelength | nm | 1260~1360 (upstream) | 1480~1500 (downstream) | ||
| Insertion loss@IP | dB | ≤1.5 | |||
| Insertion loss@CATV | dB | ≤15.0 | ≤18.2 | ≤21.8 | ≤25.2 |
| Isolation CATV@IP | dB | ≥30 | |||
| Isolation IP@CATV | dB | ≥15 | |||
| Return loss | dB | ≥50 | |||
| Directionality | dB | ≥50 | |||
| Polarization dependent loss | dB | ≤0.3 | |||
| Package size | mm | 19”1U | |||
| Operating temperature | ℃ | -40~+85 | |||
| Connector type | LC/PC(or custom) | ||||
