100G 8Channel DWDM Mux/Demux Module
The DWDM passive Mux Demux modules deliver the benefits of a Dense Wave Division Multiplexer in a fully passive solution. They are designed for long-haul transmission where wavelengths are packed tightly together over the C-band range of wavelengths, up to 48 wavelengths in 100GHz grid(0.8nm) and 96 wavelengths in 50GHz grid(0.4nm). ITU G.694.1 standard and Telcordia GR1221, GR1209, CE, RoHS, FCC are compliant.
OPTICO DWDM Mux Demux are modular, scalable and are perfectly suited to transport PDH, SDH / SONET, ETHERNET services over WWDM, CWDM and DWDM in optical metro edge and access networks.
Product Specifications
| Parameter | 4 Channel | 8 Channel | 16 Channel | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength(nm) | ITU 100GHz Grid | ||||||
| Center Wavelength Accuracy | ±0.5 | ||||||
| Channel Spacing(GHz) | 100 | ||||||
| Channel Passband(@-0.5dB bandwidth)(nm) | ≥0.22 | ||||||
| Insertion loss(dB) | ≤1.6 | ≤2.5 | ≤3.5 | ||||
| Channel Uniformity(dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||
| Channel Ripple(dB) | 0.3 | 0.3 | 0.3 | ||||
| Isolation(dB) | Adjacent | N/A | ＞30 | N/A | ＞30 | N/A | ＞30 |
| Non-adjacent | N/A | ＞30 | N/A | ＞30 | N/A | ＞40 | |
| Insertion loss Temperature sensitivity(dB/℃) | ≤0.005 | ||||||
| Wavelength Temperature Shifting(nm/℃) | ＜0.002 | ||||||
| Polarization Dependent Loss (dB) | ＜0.1 | ||||||
| Polarization Mode Dispersion(PS) | ＜0.1 | ||||||
| Directivity(dB) | ＞50 | ||||||
| Return Loss(dB) | ＞45 | ||||||
| Maximum Power Handing(mW) | 500 | ||||||
| Operating Temperature(℃) | -5~+75℃ | ||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||
| Package dimension(mm) | L100xW80xH10(8CH Mdoule) | ||||||
Applications
Project Case

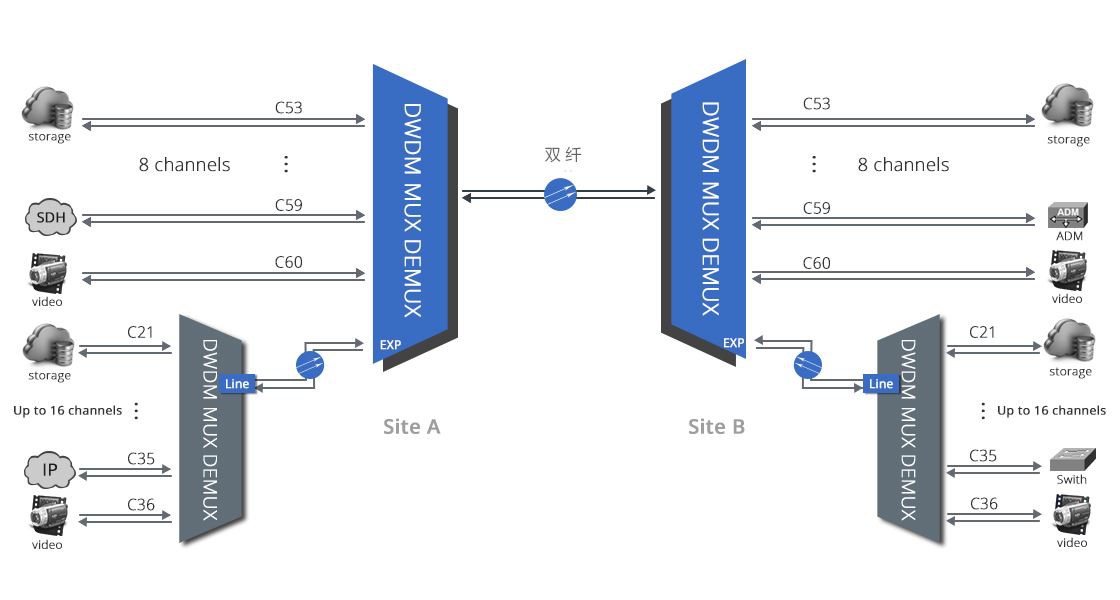

To meet customers' applications, connect 8ch C53-C60 DWDM Mux Demux to 1530nm channel of 8ch CWDM Mux Demux to achieve the hybrid. Boost amplifier is deployed to amplify the output of single channel, which optimize the residual and signal quality of the link.
Different Transmission Methods

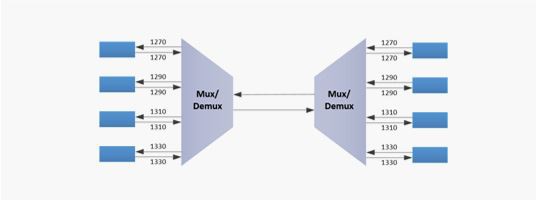

WDM single fiber bidirectional transmission system
WDM dual-fiber bidirectional transmission system
Advantages of our DWDM
Low insertion loss
High Channel Isolation
Save fiber resources
Other Highlights
• Multiplexing of 8 channels on fiber pair
• Low insertion loss
• LC/UPC connectors
• 1% monitor port for Tx and Rx, ensures easy troubleshooting without downtime
• 1310nm port allows the overlaid on an existing legacy 1310nm network such as 1000Base SFP LX, 10G SFP+ LR, 40G
QSFP+ LR4 and 100G CFP LR4
• Expansion port for future capacity expansion
• Compliant to ITU G.694.1, 100GHz ITU gird, 0.8 nm spacing
• High quality thin film filter technology
• Passive, no electricity needed (MTBF ca. 500 years)
Our brand confidence comes from a strong production team

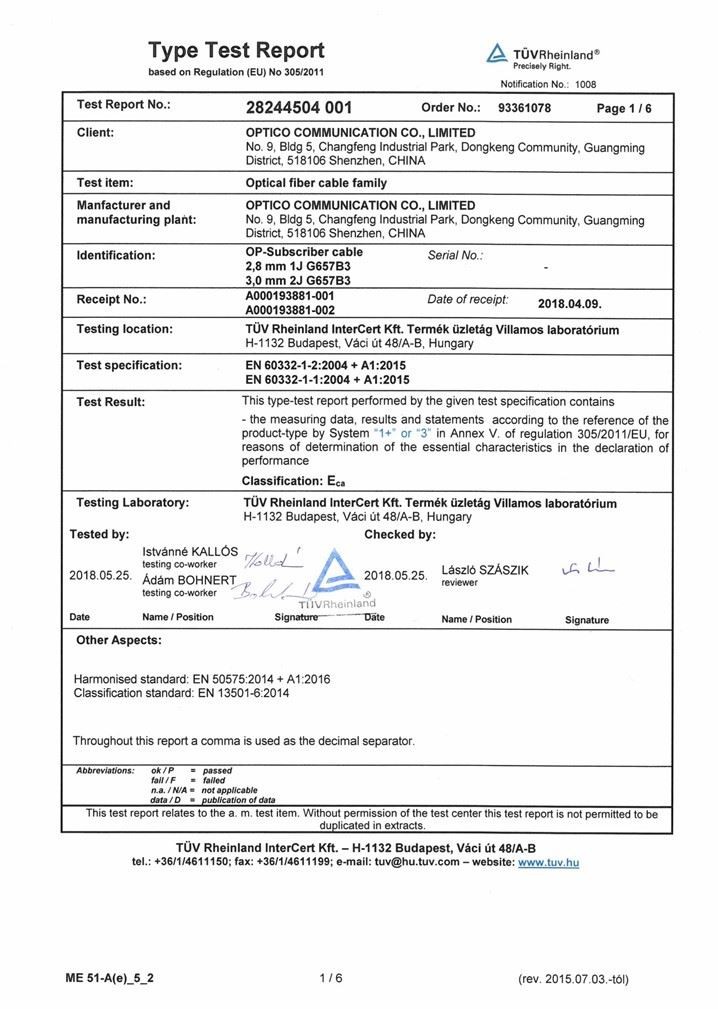

International Certificates
CE-WDM
CPR

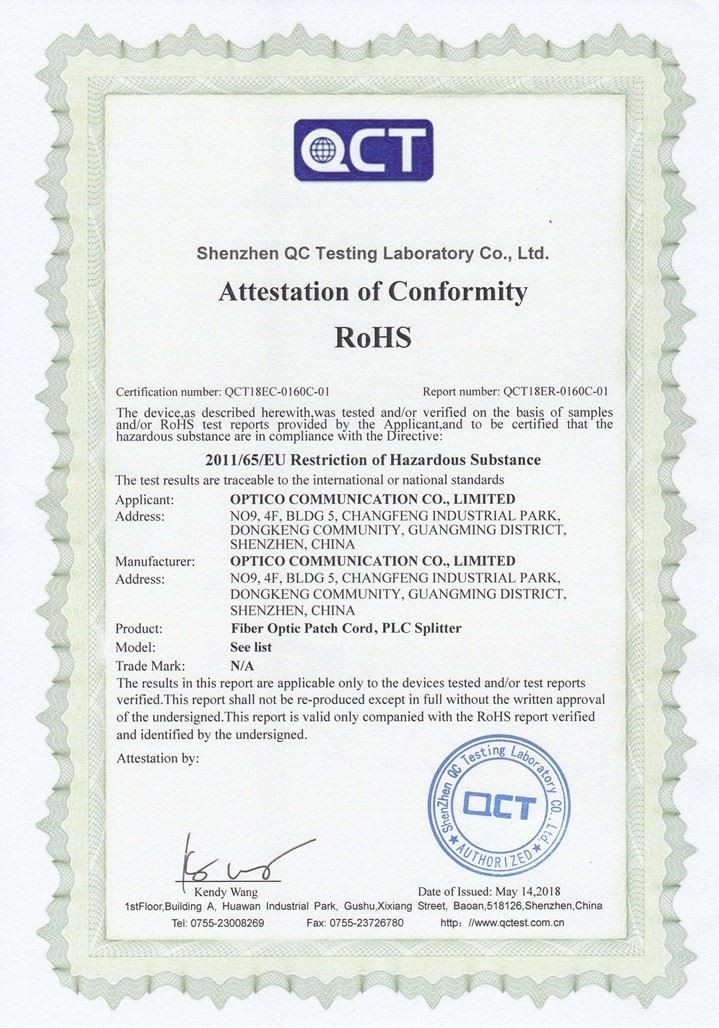

ROHS
Strong Production Strength
4 full WDM Production lines
Imported test equipment
High and low temperature cycle
How we could stand by you
-
Quick response within 24 hours
-
One-to-one service
-
Professional technical team support
-
Provide the best quality solutions
-
Strong production team
-
The most stringent quality control standards
-
Fast delivery
