Product Profile
Our ST APC ST APC Duplex Patchcord Yellow offers high-performance connectivity for your fiber optic network needs. The patchcord's low insertion loss, high back reflection loss, and stable capability make it an ideal solution for high-speed data transmission. Its LSZH jacket ensures minimal toxic and corrosive gas emission during combustion, making it a safer choice.
OPTICO ST APC Duplex Patch Cord is the high quality standard custom designed for EU FTTH project. It is made of G657A2 LSZH fiber cable with low insertion loss, high return loss, and up to at least 80% 3D test. We have made our dedication to fiber optic accessories for at least 18 years since 2000.
Products Specification
| Connector Type | SC,LC,FC,E2000 | ST,MU | MTRJ | ||||
| Transmission Mode | SM | MM | SM | MM | SM | MM | |
| Polishing Type | UPC | APC | UPC | UPC | UPC | UPC | UPC |
| Working Wavelength (nm) | 1310/1490/1550 | 850/1300 | 1310/1490/1550 | 850/1300 | 1310/1490/1550 | 850/1300 | |
| Insertion Loss(dB) | ≤0.25 | ≤0.20 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability(dB) | ≤0.10 | ||||||
| Interchangeability(dB) | ≤0.20 | ||||||
| Plug Testing(time) | ≥1000 | ||||||
| Tensile Strength(N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) | ||||||
| Durability(dB) | ≤0.20 | ||||||
| Operation Temperature(°C) | -40~+75 | ||||||
| Storage Termperature(°C) | -40~+85 | ||||||
Product Features
The optical patch cord provides low insertion loss less than 0.25dB, improving a clean and stable signal and preventing signal interference.

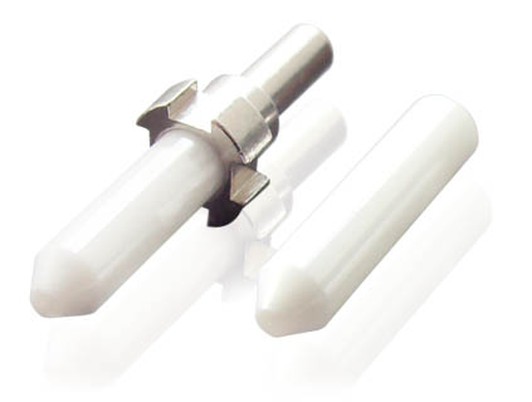

Premium Grade A Zirconia Ceramic Ferrule ensures low insertion loss, precise alignment, and high mating durability, providing stable and reliable network transmission for this fiber patch cord.
Good Reliability and Stability
The duplex patch cord is made of high-quality materials, ensuring durability and a longer lifespan. The yellow jacket also provides excellent visibility and protection.
High Quality Spare Parts
The ST APC Duplex Patchcord Yellow is packed with spare parts for maintenance, repair, and replacement of damaged or faulty components, and can be quickly connected or disconnected without damages.
Our Brand Confidence Comes from a Strong Production Team
Application
FTTH

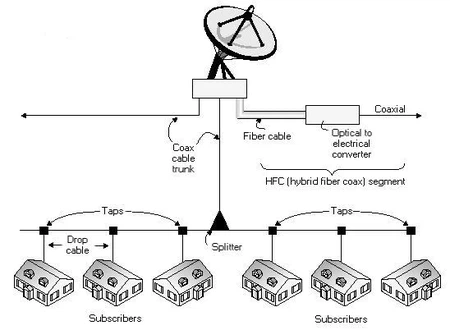

CATV
LANs
WANs
Strict Performance Tests

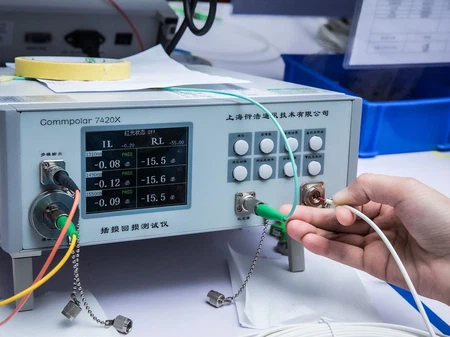

IL/RL Test
3D Test
End Face Test

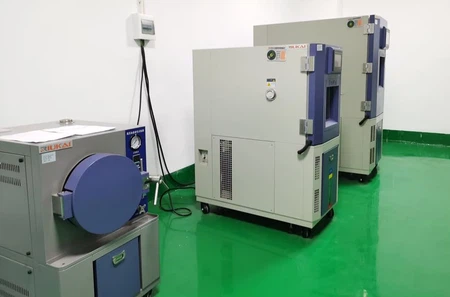

Temperature Test
Certificates
CE
CPR
ISO
ROHS
Full Ranges of Reliability Test Report from 3rd Lab
Coupling
Drop
Durability
High/Constant Temperature and Humidity
High/Low Temperature
Loss
Micro Cross Section Inspection
Resistant to Repeated Bending
Single Vertical Burning
Temperature Change
UV
Ordering Process
1. Please send an email to Sales@fiberopticom.com expressing your interest in our products. It's preferable to include product images or webpage links to help OPTICO's sales team quickly and accurately locate the product.
2. OPTICO's sales team will respond with relevant information within 24 hours.
3. Both parties can discuss specific production specifications.
4. OPTICO's sales team will provide a quote based on your required quantity and specifications.
5. If the price is acceptable, you will make payment and OPTICO will begin the production process.
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand by You
- Quick response within 24 hours
- One-to-one consulting Service
- Professional technical team support (RL can even reach 85dB/ Grade B connectors)
- Super strict quality control (Real 1000 times plug experiment)
- Huge production capacity
- Never change prices arbitrarily
After-sales Services
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase. When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Hot Tags: ST APC ST APC Duplex Patchcord Yellow, China, manufacturers, suppliers, factory, wholesale, customized, fiber patch cord lengths, sc fiber patch cable, lc lc single mode fiber patch cord, duplex lc fiber connector, single mode fiber patch cables, lc to sc fiber patch cable
|
Connector Type |
SC/LC/FC/E2000 | ST/MU | MTRJ | ||||
| Transmission Mode | SM | MM | SM | MM | SM | MM | |
| Polishing Type | UPC | APC | UPC | UPC | UPC | UPC | UPC |
| Working Wavelength (nm) | 1310/1490/1550 | 850/1300 | 1310/1490/1550 | 850/1300 | 1310/1490/1550 | 850/1300 | |
| Insertion Loss(dB) | ≤0.25 | ≤0.20 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability(dB) | ≤0.10 | ||||||
| Interchangeability(dB) | ≤0.20 | ||||||
| Plug Testing(time) | ≥1000 | ||||||
| Tensile Strength(N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) | ||||||
| Durability(dB) | ≤0.20 | ||||||
| Operation Temperature(°C) | -40~+75 | ||||||
| Storage Termperature(°C) | -40~+85 | ||||||
