Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 48f sc to sc om4 fiber patch cord in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
product profile

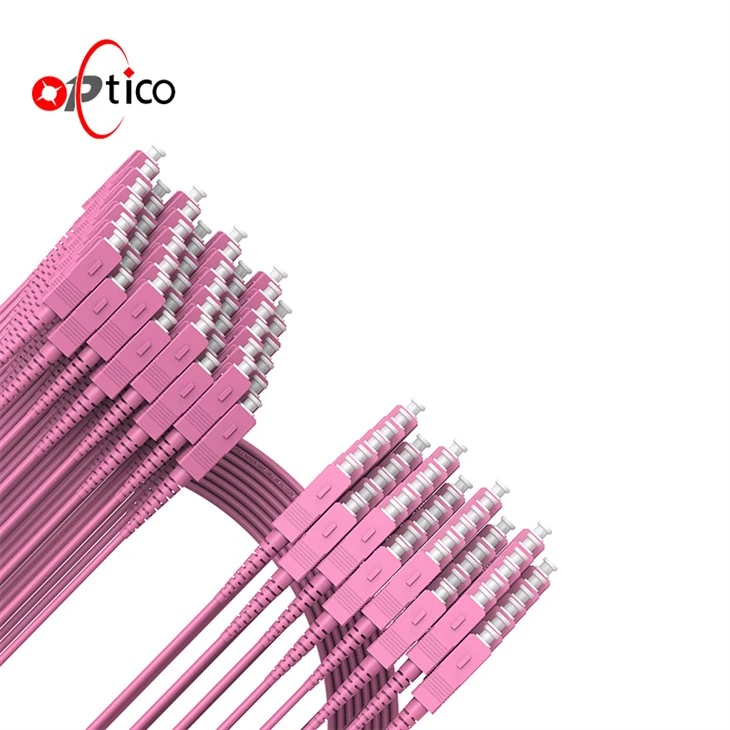

48F SC To SC OM4 Fiber Patch Cord uses APC / UPC polished Japanese-made zirconium oxide ceramic ferrules have excellent characteristics of high return loss, low insertion loss, and low attenuation, enabling precise alignment to ensure signal integrity.
OPTICO focuses on quality, 48F SC To SC OM4 Fiber Patch Cord is secondarily tested and 3D tested at the factory to meet quality control and insertion loss requirements, providing customers with high-quality products.
Product specifications
| Brand | OPTICO | OPTICO |
| Color | Yellow/Orange/Aqua/Pink/Purple /Custom | Yellow/Orange/Aqua/Pink/Purple /Custom |
| Connector Type | LC/SC/FC/ST/MPO/MTP | LC/SC/FC/ST/MPO/MTP |
| Specifications | Single Mode | Multi-Mode |
| Work Wavelength (nm) | 1310,1490,1550 | 850,1300 |
| Insertion Loss(dB) | ≤0.3 | ≤0.25 |
| Return Loss(dB) | APC≥60, UPC≥55 | ≥35 |
| Cable OD (mm) | 0.9 / 2.0 / 3.0 | 0.9 / 2.0 / 3.0 |
| Repeatability(dB) | ≤0.10 | ≤0.10 |
| interchangeability(dB) | ≤0.20 | ≤0.20 |
| Plug Testing(time) | ≥1000 | ≥1000 |
| Tensile Strength(N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) |
| Durability(dB) | ≤0.20 | ≤0.20 |
| Operation Temperature(°C) | -40~+85 | -40~+85 |
| Storage Temperature(°C) | -40~+85 | -40~+85 |
Product features
48F SC To SC OM4 Fiber Patch Cord is light, easy to manage, and perfect for connecting 200g qsfp56, 200g AOC cable, 400g qsfp sr4, 400g sr8.
48F SC To SC OM4 Fiber Patch Cord is easy to route and install. Smaller cables save space and improve airflow in high-density environments such as server rooms.
48F SC To SC OM4 Fiber Patch Cord combines optical transceivers, fiber optic cables, and equipment in data centers eliminates clutter and complex cable connections, and simplifies cable management in computer rooms.
OPTICO end-face inspection is performed using SUMIX inspection equipment in accordance with international standard IEC 61300-3-35 and is critical to maintaining the quality of fiber optic connections, especially in data center network environments.
The goal is to ensure that the connector endface remains clean, free of scratches and defects. This inspection is particularly important in data center environments, as defects can cause signal loss or increased latency. By utilizing advanced 3D interferometer SUMIX testing, connector geometry can be rigorously evaluated to meet stringent technical requirements, supporting the efficient operation of data center high-speed networks.
These tests help minimize the probability of connection failures in data center networks, improve the overall reliability of the system and ensure smooth data transmission. Ultimately, integrating a robust inspection process like SUMIX not only maintains the performance standards of optical connectors, but also supports the efficient operation of data centers, making it key to modern telecommunications infrastructure.
Corning/YOFC fiber(IL<0.2dB)
CCTC Ceramic ferrule
High quality spare parts
PVC Material
our brand confidence comes from a strong production team
Customized production drawings
Customized production drawings can be accepted.
You can directly customize exclusive production drawings with our engineering team,
Therefore, effectively reducing the cost of multi-party communication, making your OEM design more efficient and faster, improving the efficiency of work and production, and saving your cost.
Therefore, contacting OPTICO is an effective way to save costs and improve efficiency.
applications
FTTX network
Data center
WANs
CATV
100% strictly tested before delivery
IL/RL test
3D test
End face test
Temperature test
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
delivery(7-15 days)
Optico can supply full range of FTTH passive products. All are in high quality and competitive prices. Welcome to inquire and welcome to visit our Shenzhen production bases any time!
how we can stand by you
- Quick response within 24 hours
- One-to-one consulting Service
- Professional technical team support (RL can even reach 85dB/ Grade B connectors)
- Super strict quality control (Real 1000 times plug experiment)
- Huge production capacity
- Never change prices arbitrarily
