1x2 ABS Box PLC Splitter SC(PC)
ABS box type is one of the packaging methods of PLC splitter. In addition to the ABS box type, PLC splitters are classified into rack type, bare wire type, plug-in type, and tray type. ABS PLC splitter is the most commonly used splitter in PON network.
|
Parameters |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
2x4 |
2x8 |
2x16 |
|
Operating Wavelength (nm) |
1260~1650 |
||||||||
|
Fiber Type |
Single mode fiber |
||||||||
|
Fiber OD |
250um bare fiber/900um with loose tube/ 2mm with kevlar /3mm with kevlar |
||||||||
|
Insertion Loss (dB) S Grade |
4 |
7.3 |
10.5 |
13.7 |
16.9 |
21 |
4.2 |
7.8 |
11.2 |
|
Insertion Loss (dB) P Grade |
3.8 |
7 |
10.2 |
13.5 |
16.5 |
20.5 |
3.8 |
7.4 |
10.8 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
1 |
1.4 |
1.5 |
|
Return Loss (dB) S Grade |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Return Loss (dB) P Grade |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
0.2 |
0.2 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
0.8 |
|
Temperature Stability(-40~85 °C)(dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (°C) |
-40~85 |
||||||||
|
Storage Temperature (°C) |
-40~85 |
||||||||
|
Note |
1) Specified without connectors; 2)Add an additional 0.2dB loss per connector |
||||||||
The inner structure of 1x2 ABS Box PLC Splitter SC(PC)
Types of advantages
Corning/YOFC/Customized fiber
High quality ceramic ferrule
Small size, easy to install
OPTICO PLC Splitter Porduction Show
Scenes of applications
CATV Links
FTTH Networks
LAN Networks
Strictly tested by our production line
End surface polishing
IL/RL Test

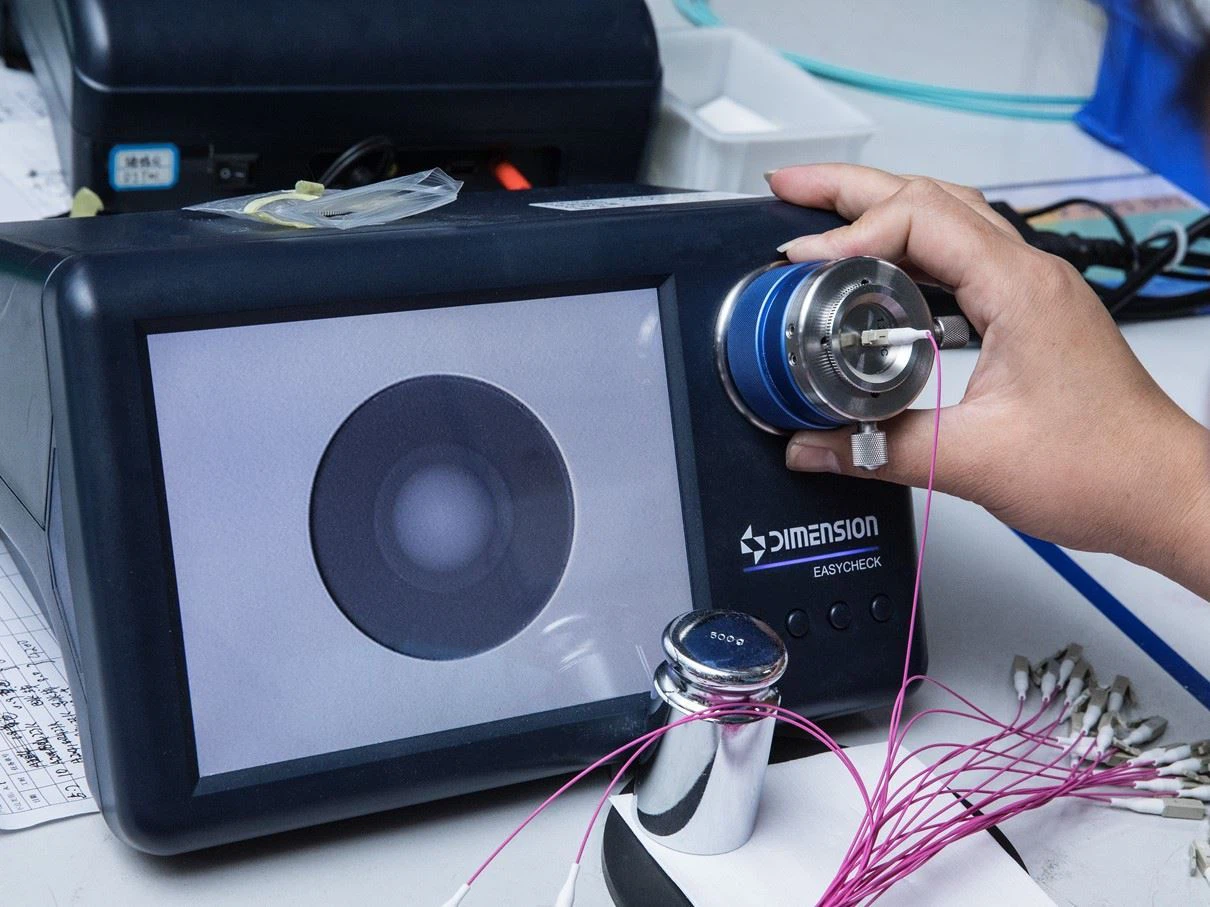

End surface test
Temperature test
Types of certificates
CE
CPR
ISO
ROHS
7-15 DAYS
The PLC splitter provided by OPTICO has a variety of modes such as 1xN/2xN/MxN to meet the diversified needs of customers; compared with FBT splitter, PLC splitter has the advantages of not sensitive to wavelength, uniform light splitting, high stability, and high density.They are currently widely used in WANs, LANs, FTTX and other fields.
