Product Profile
SC APC SC UPC Patch Cord White is a high-quality fiber optic patch cord designed for reliable and efficient optical signal transmission. It features SC APC (Angled Physical Contact) and SC UPC (Ultra Physical Contact) connectors on both ends. The white color adds a clean and professional look to the patch cord. It is suitable for various applications that require SC connectors and ensures excellent performance in optical networks.
OPTICO provides a full set of fiber optic patch cord customization services, such as fiber optic connector, length, color, fiber grade, specification, material, packaging, etc.All jumpers have been 100% tested before leaving the factory to ensure that the end faces are spotless, and the insertion loss and return loss are in compliance with international telecommunication standards. The multimode patch cord uses G.651 OM1 multimode fiber, which is RoHS compliant.
Product Specifications
| Item | SC/LC/FC/E2000 | ST/MU | MTRJ | ||||
| SM | MM | SM | MM | SM | MM | ||
| UPC | APC | UPC | UPC | UPC | UPC | UPC | |
| Work Wavelength (nm) | 1310/1490/1550 | 850/1300 | 1310/1490/1550 | 850/1300 | 1310/1490/1550 | 850/1300 | |
| Insertion Loss(dB) | ≤0.25 | ≤0.20 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability(dB) | ≤0.10 | ||||||
| Interchangeability(dB) | ≤0.20 | ||||||
| Plug Testing(time) | ≥1000 | ||||||
| Tensile Strength(N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) | ||||||
| Durability(dB) | ≤0.20 | ||||||
| Operation Temperature(°C) | -40~+75 | ||||||
| Storage Termperature(°C) | -40~+85 | ||||||
Product Features
Versatile Connectivity: With SC APC and SC UPC connectors available, the patch cord provides flexibility in connecting different devices and equipment in optical networks.
Enhanced Signal Quality: The low insertion loss of 0.25dB and excellent return loss contribute to the superior signal quality of SC APC SC UPC Patch Cord White, minimizing data transmission errors.
Easy Identification: The white color of the patch cord allows for easy identification and organization in network setups.
Environmental Compliance: The use of RoHS-compliant materials in the construction of SC APC SC UPC Patch Cord White demonstrates OPTICO's commitment to environmental responsibility.
Corning/YOFC fiber

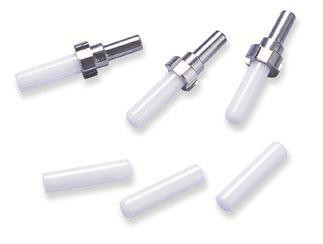

CCTC Ceramic ferrule
Printing helps clarify and recognize different cables
High quality PVC Material
Our brand confidence comes from a strong production team
100% Strictly Tested Before Delivery
IL RL Test
3D tested by Daisi
End-surface
Temperature test
Applications
CATV
FTTH

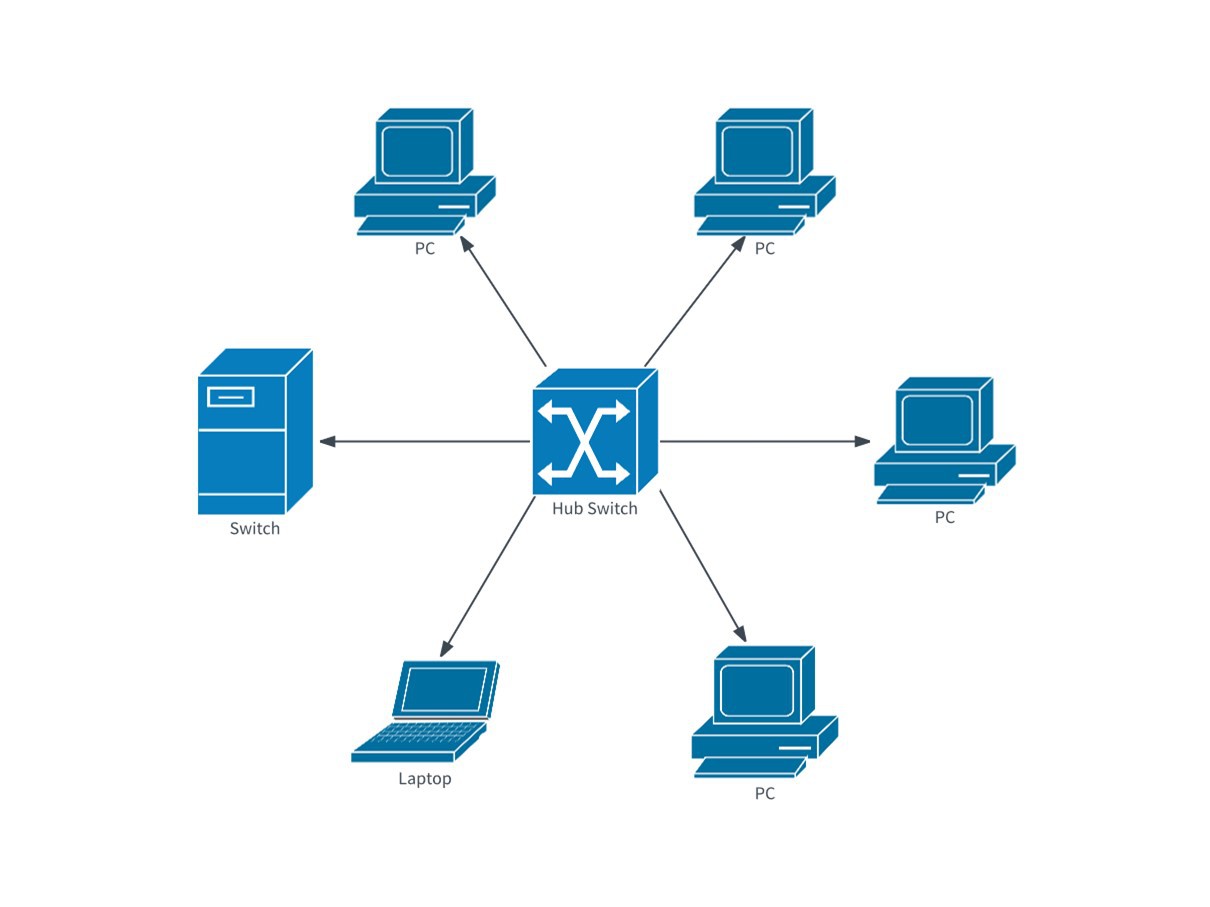

LANs
Fiber sensing system
Certificates
CE
CPR
ISO
ROHS
Rich warehousing and fast delivery
7-15 days
OPTICO can provide a full set of customized services for products according to your requirements, including fiber optic connectors, length, color, fiber grade, materials, and packaging. Labels etc.
Welcome to contact us for any requests -Your trustworthy partner on fiber optics/OPTICO!
