Description

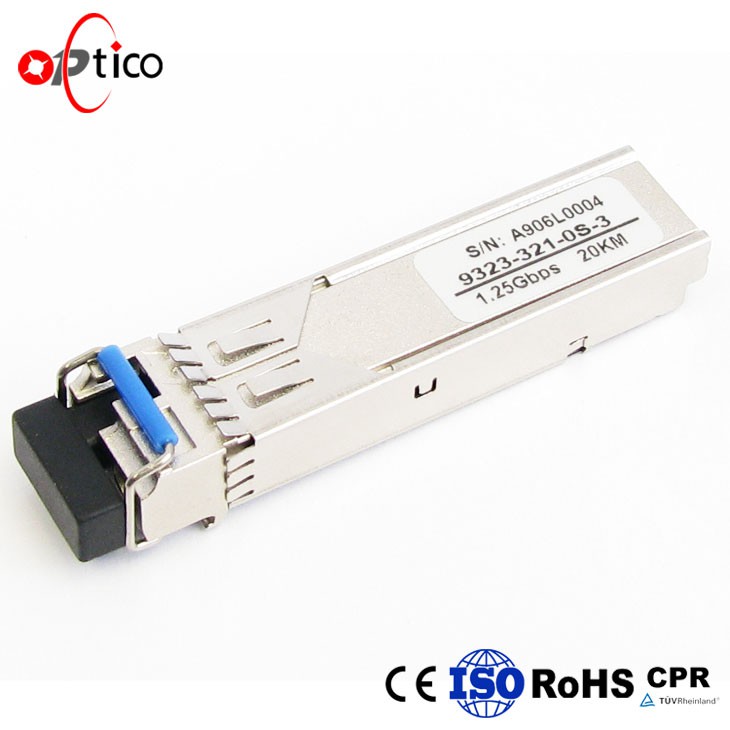

20KM SFP Optical Transceiver series single-mode transceivers is SFP+ module for bi-directional serial optical data communications such as 10GBASE-LR. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for single-mode fiber and operates at a nominal wavelength of 1310 nm. The transmitter section uses a 1310 nm multiple quantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Specification
* Operating data rate up to 10.3Gbps
* 1310 nm DFB-LD Transmitter
* Distance up to 20Km
* Single 3.3V Power supply and TTL Logic Interface
* Duplex LC Connector Interface
* Hot Pluggable
* Operating Case Temperature: Standard: 0C~+70C, Industrial -40C~+85C
* Compliant with MSA SFP+ Specification
* Digital diagnostic monitor interface compatible with SFF-8472
Features
* 10G Ethernet at 10.3125Gbps
