Product profile
This SC to LC fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
Product specifications
|
Item |
Parameters |
|
Fiber Type |
OM4 |
|
Connector Type |
LC to SC |
|
Jacket Materials |
LSZH |
|
Ferrule Materials |
Ceramic |
|
Core Quantity |
2 |
|
Insertion Losss(dB) |
≤ 0.2dB |
|
TIA/EIA-455-107 |
UPC |
|
Return Loss(dB) |
≥35dB |
|
Exchangeability |
≤ 0.3dB |
|
Operating Temperature (° C) |
-40~ + 85 |
|
Storage Temperature (° C) |
-40 ~ +85 |
|
Package |
1unit/bag |
Product features
Customizable Printing and Labeling: The SC To LC Duplex OM4 Fiber Patch Cord can be customized with printing and labeling options, making it easy to identify and manage different connections within the network.
Bidirectional Communication: The duplex configuration of the optical patchcord facilitates bidirectional communication by providing two fibers in a single cable. It enables seamless integration into various network setups and equipment that use either LC or SC connectors, without the need for additional adapters or converters.
Low Insertion Loss: With an insertion loss of ≤ 0.2dB, the patch cord efficiently transmits data with minimal signal degradation.
Corning/YOFC Fiber

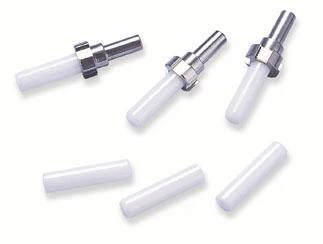

CCTC Ceramic ferrule
Standard: Telcordia GR-326-CORE
Connectors grade can reach B
our brand confidence comes from a strong production team
applications
CATV

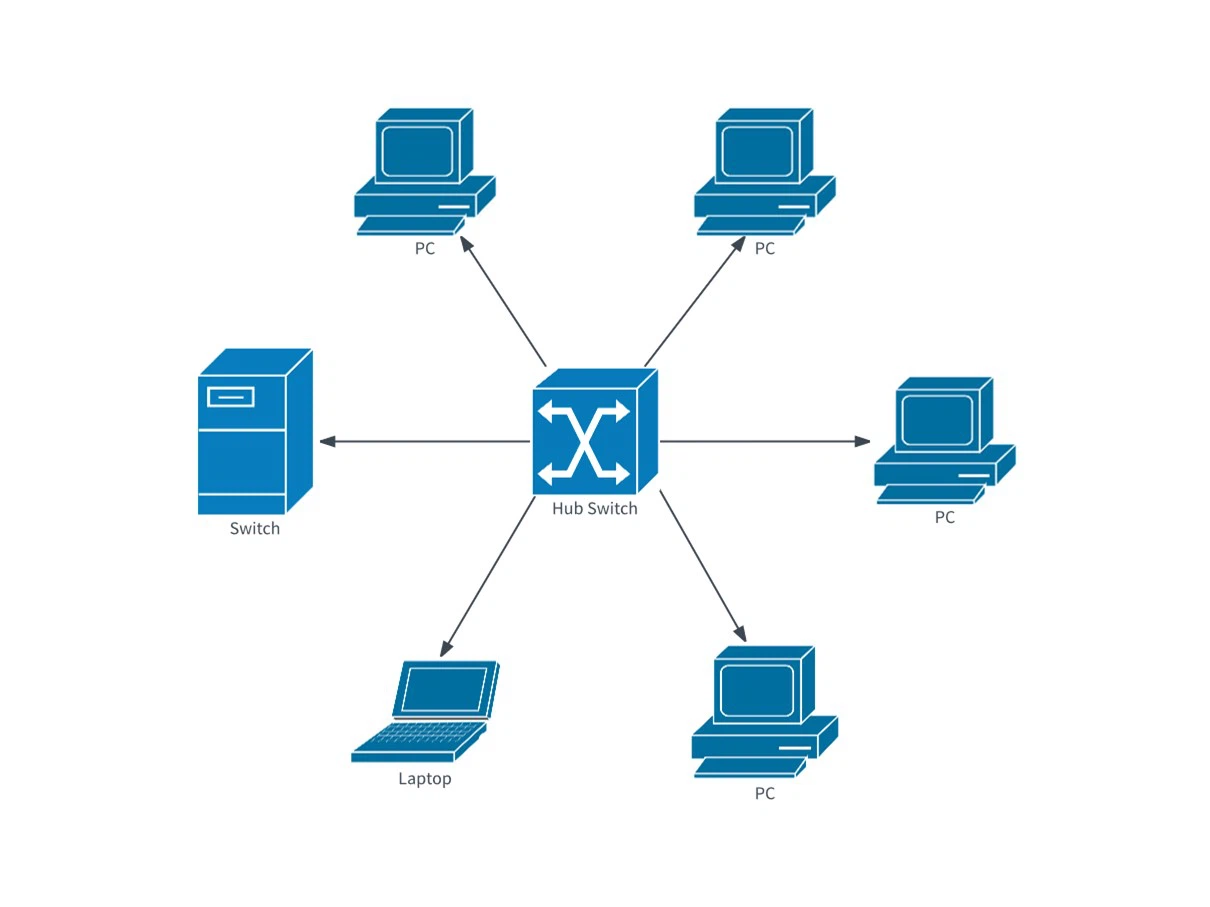

LANs

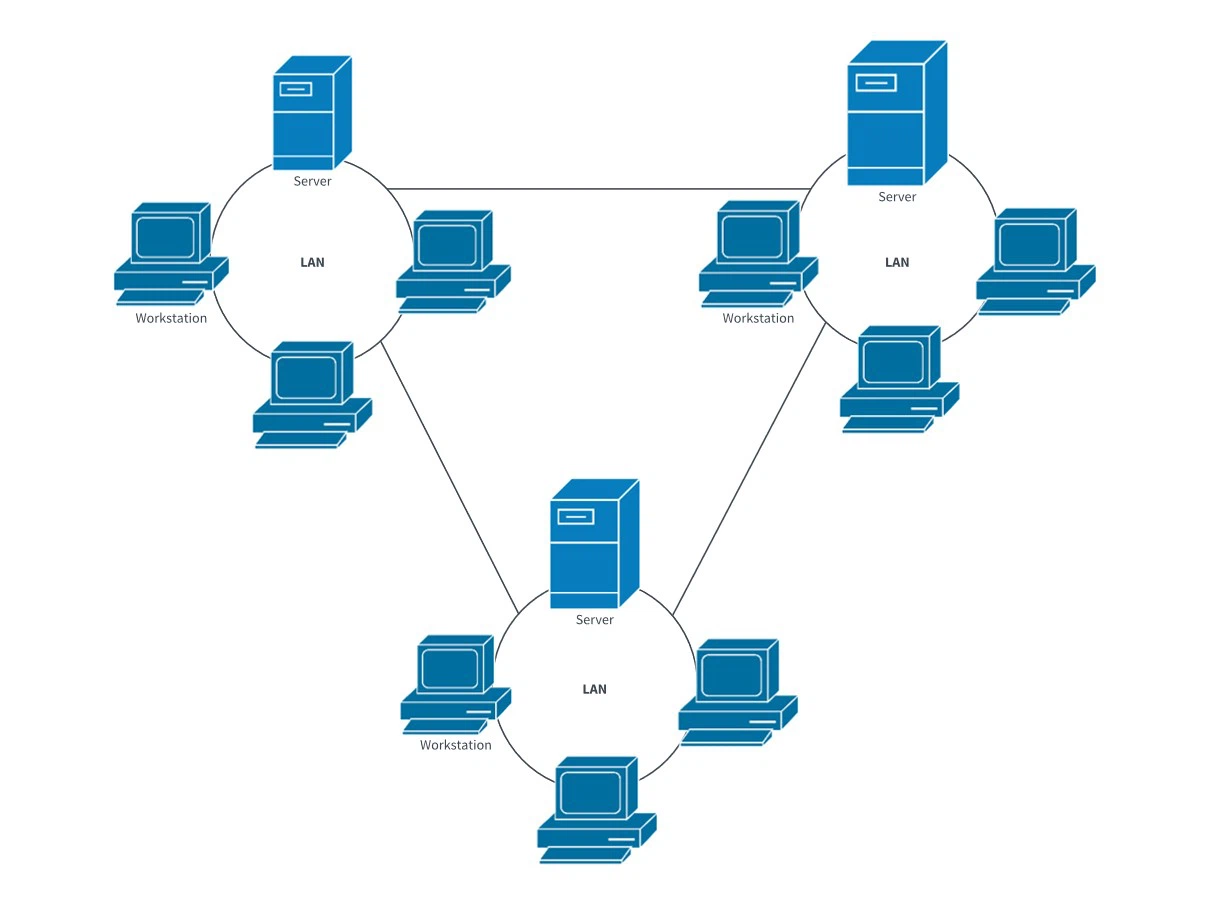

WANS
100% strictly tested before delivery
IL/RL test
3D tested by DAISI
End surface test
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
purchase guide
| Surface type | Cable diameter | Fiber length | Fiber type | Tube type |
| APC | 2.0mm | 0.5m | OM1 | PVC |
| UPC | 2.8mm | 1m | OM2 | LSZH |
| 3.0mm | 2m | OM3 | OFNR | |
| ... | ... | OM4 | CPR | |
| Custom555 | Custom | Custom |
delivery(7-15 days)
how we can stand by you
- Quick response within 24 hours
- One-to-one consulting Service
- Professional technical team support (RL can even reach 85dB/ Grade B connectors)
- Super strict quality control (Real 1000 times plug experiment)
- Huge production capacity
- Never change prices arbitrarily
