Product Profile
The MPO Patch Cord uses a compact and robust 3 mm cable that optimizes space in the wiring area and helps improve airflow. MPO fiber patch cords help quickly deploy high-density cabling in data centers or other high-fiber density environments, reducing network installation or reconfiguration time and cost. Use these components to quickly and easily patch or interconnect MPO device ports between data center areas.
Optico Communication Co., Ltd, with its highly integrated design and manufacturing capability, specializes in producing and supplying a wide range of MPO/MTP trunk patch cables and fan-out patch cables. These cables are available in 8/12/24/48 fiber configurations and come with various cable jacket types, colors, and lengths to cater to diverse system requirements and applications.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | Customizable |
| Fiber Mode |
SM(OS2)/MM(OM3/OM4/OM5) |
| Connector Type | MTP Female/Male; MPO Female/Male |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow/Aqua/Rose/Purple/Green |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | SM:1310/1550; MM:850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
MPO patch cords cater to diverse needs by offering a range of fiber and cable options. They are available in Single Mode (SM), OM3, OM4, and OM5 variants. The standardized color-coding simplifies identification: SM in yellow, OM3 in aqua, OM4 in rose (with purple available), and OM5 in green. And the standardized color-coding simplifies identification: SM in yellow, OM3 in aqua, OM4 in rose (with purple available), and OM5 in green.
The factory-terminated nature of MPO patch cords significantly reduces installation and reconfiguration time during moves, adds, and changes. Configurable length assemblies further contribute to efficient cable management by minimizing slack and patch field congestion.
Premium MPO connectors with low loss and Bend Insensitive fiber contribute to optimized performance of the MPO patch cord, reducing signal losses and minimizing power penalties. Each MPO assembly undergoes 100% factory testing, ensuring reliable connectivity that adheres to TIA 568 and IEC 61754 standards.
MPO patch cords future-proof networks by supporting next-generation speeds. Their modular connectivity facilitates smooth migration plans for evolving network requirements, accommodating speeds like 400G and 800G.
100% Strictly Tested Before Delivery
IL/RL test

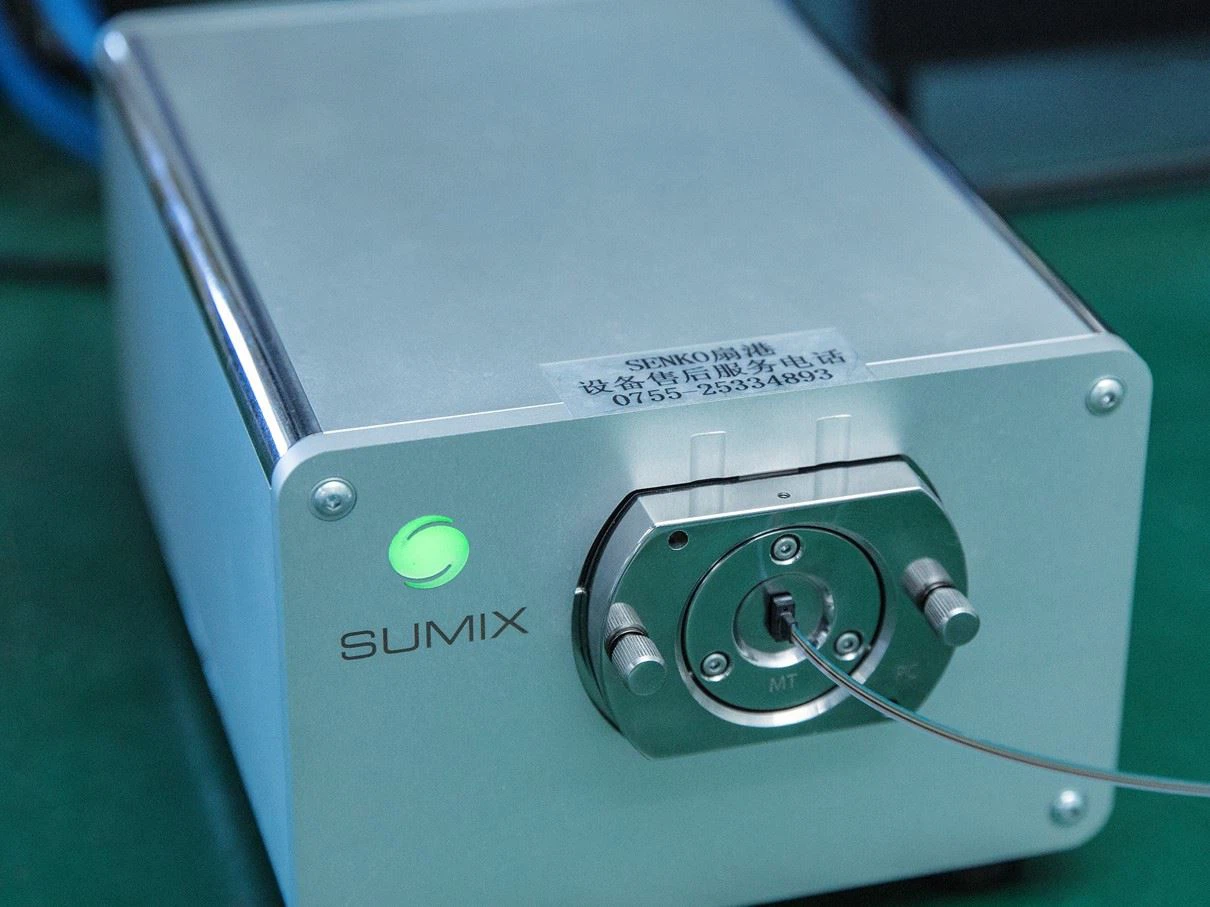

3D Test

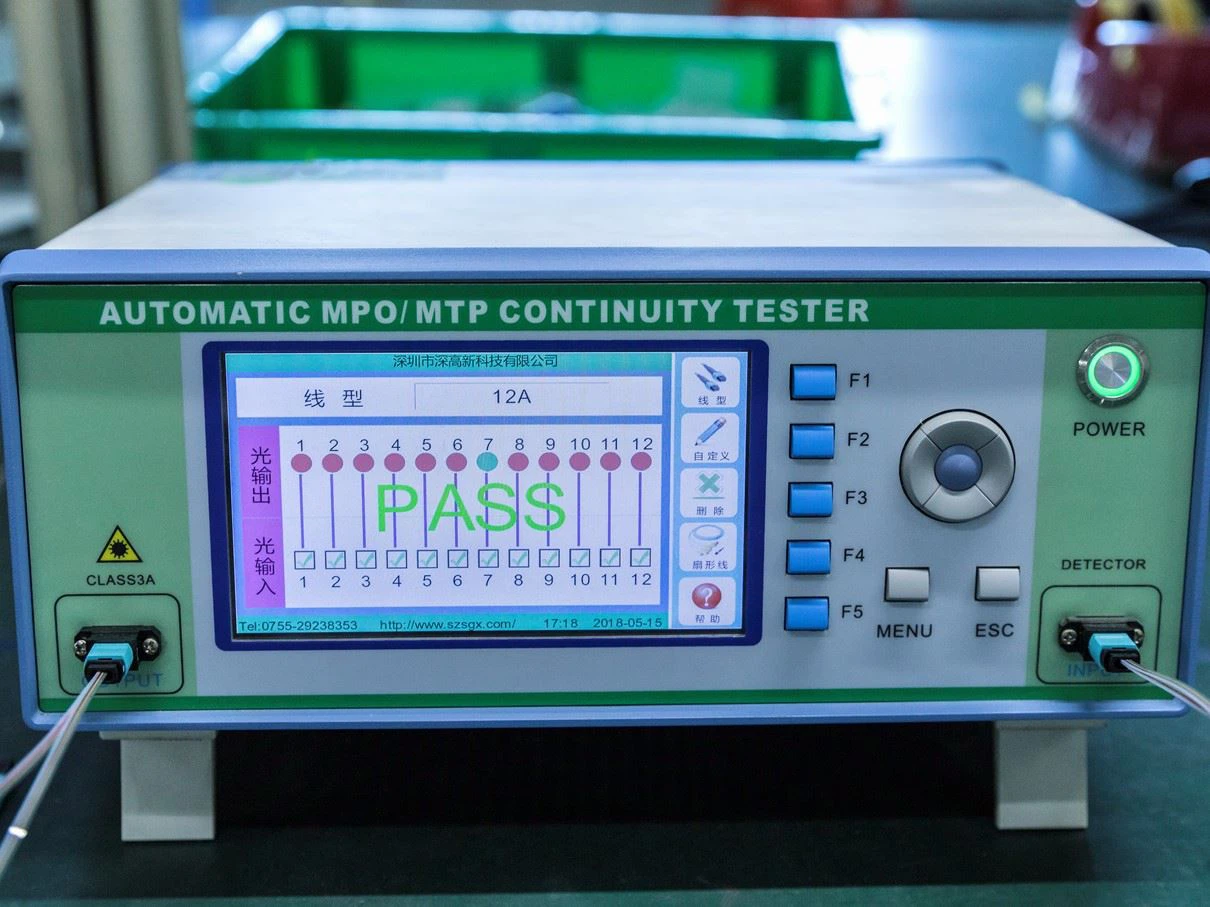

Polarity Test
Production Drawing
OPTICO own a powerful team of engineers, production instruction drawings, logos, colors, connectors, number of cores, and other special requirements can be customized.
Connectivity Solutions
25G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment: Use a high-performance switch with 25G SFP28 Optical Transceiver Module to send and receive signals, the data transmission rate can reach speeds of 25.78 Gb/s.
b. Fiber Connection Method: Connect equipment with LC UPC to LC UPC Duplex OM4 Multimode Patch Cord or MTP Patch Cord 12 Cores.
c. Fiber Cabling Management:
Utilize MTP-12 Cassette (12 Fibers OM4 Multimode, MTP to 6 x LC Duplex) and a High-Density 1U Rack Mount Enclosure with a sliding drawer for cable organization.
Alternatively, use 24F 2×12F MPO-6LC MPO Cassette OM3, Quad LC in the same 1U Rack Mount Enclosure.
2. Core to Access Connection
Use 12F MTP MPO Fiber Cable for core-to-access connections.
3. Access Cabling Solution
This mirrors the specifications of the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Purchase Guide
| Polarity | Color | Cable type | Fiber length | Fiber Count |
| A | Yellow | Bare fiber ribbon | 1m | 8 |
| B | Orange | Oval | 2m | 12 |
| C | Aqua | Circle | 3m | 24 |
| ... | ... | ... | ... | |
| Custom | Custom | Custom | Custom |
Delivery(7-15 Days)
