Network fiber PLC Splitter
We are a professional factory of fiber optic accessories providing Network fiber PLC Splitter in China. We have made our dedication to fiber optic accessories for at least 18 years since 2000. Our main markets cover Europe, America. We look forward to establish mutual-benefit cooperation with you.The Network fiber PLC Splitter is the design with high quality for EU FTTX connection project. It is made of G657A2 LSZH fiber cable and connectors with low insertion loss, high return loss and 100% high/low temperature test. We have made our dedication to fiber optic accessories for at least 18 years since 2000. Our main markets cover Europe, America. We look forward to establish mutual-benefit cooperation with you.
| Item | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
| Fiber Type | SMF-28e or Customized | ||||||
| Operating Wavelength (nm) | 1260-1650 | ||||||
| Insertion Loss (dB) | Max(P/A) | 4 | 7.2 | 10.5 | 13.5 | 16.9 | 20.5 |
| Loss Uniformity (dB) | Max | 0.4 | 0.6 | 0.8 | 1 | 1.5 | 2 |
| Return Loss(dB) | Min (P/A) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 50 |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) |
Max | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 |
| Temperature Stability (-40 ～85 ℃)(dB) | Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 |
| Operating (℃) /Storage(℃) | -40～+85 | ||||||
The inner structure of our PLC Splitter
Advantages of our PLC Splitter
The light signal is evenly distributed
Corning or YOFC Fiber
High quality ceramic ferrule connector
Scenes of application
PON Networks
LAN Networks
WAN Networks
100% tested before delivery

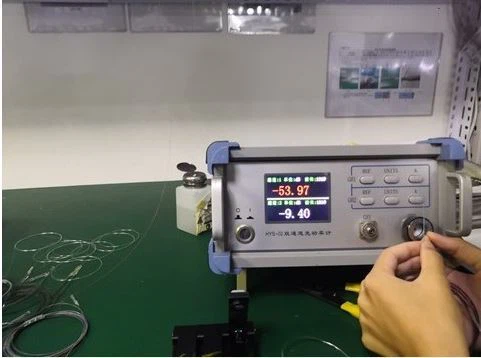

IL RL Test

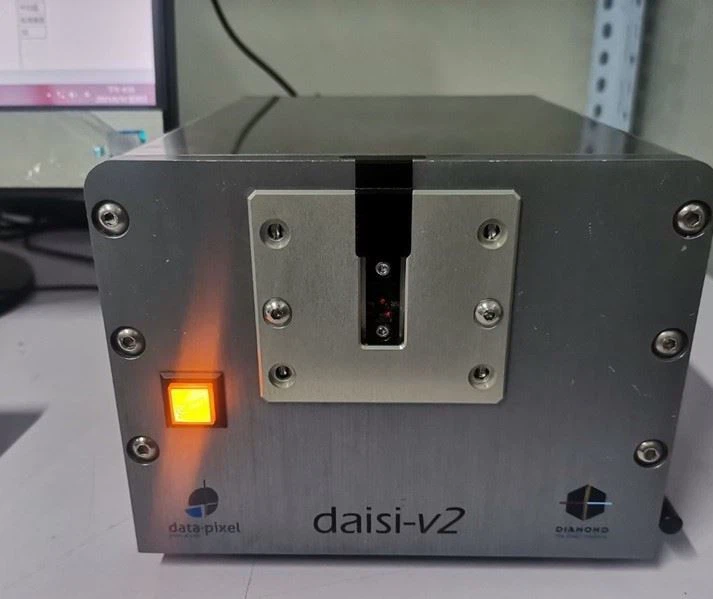

3D tested by Daisi device
Temperature test
Our brand confidence comes from a strong production team
Types of certificates
CE
CPR
ISO
ROHS
7-15 DAYS
Packing Details of Network fiber PLC Splitter
| Item | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
| Package Size (mm) | Bare type | 40*4*4 | 40*4*4 | 40*4*4 | 50*7*4 | 50*7*4 | 60*12*4 |
| Steel tube 0.9 | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 | |
| ABS box | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 141*115*18 |
What we could promise you
Quick response within 24 hours
One-to-one service
Professional technical team support
Provide the best quality solutions
Strong production team
The most stringent quality control standards
Fast delivery
