Product Profile

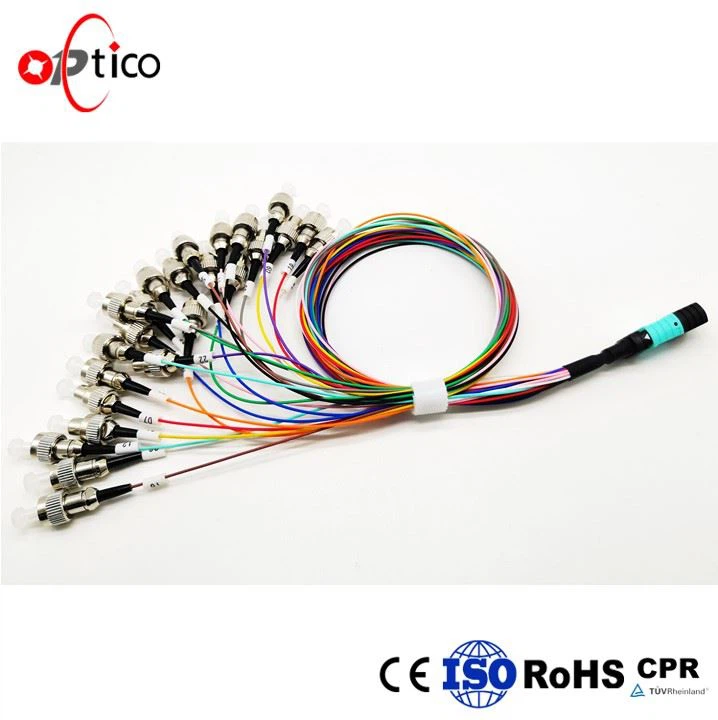

24F MPO FC UPC OM4 Patchcord is a high-performance fiber optic cable designed to deliver superior connectivity and data transmission for various network applications.
Engineered with precision and using top-quality materials, this 24F MPO FC UPC OM4 Patchcord ensures reliable and efficient performance, making it an ideal choice for modern network infrastructures.
24F MPO FC UPC OM4 Patchcord can be 8F/12F/16F/24F/32F/36F/48F/72F/96F/120F/144F, and the number of cores can be customized according to requirements.
As a professional manufacturer, OPTICO offers a full range of OEM customization services, including fiber core count, fiber pattern, type, fiber length, printing, color coding, etc. to meet the specific needs of different customers.
Product specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | Connector A: US Conec MTP Female/Male; MPO Female/Male | ||
| Connector B: LC/SC/FC/ST | |||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Premium Optical Performance
The patchcord boasts low insertion loss, generally ranging from 0.35 to 0.7dB, ensuring minimal signal degradation during data transmission. With a return loss between 20 to 60 dB, it provides excellent signal reflection suppression.
Enhanced Interchangeability
The patchcord exhibits exceptional interchangeability, with a value of ≤0.20 dB. This feature ensures that connectors can be easily swapped without compromising signal quality, providing flexibility in network configurations.
Durable and Reliable
Designed for longevity, the patchcord offers remarkable durability with a maximum change of <0.20 dB after 500 matings, as per EIA-455-21A standard. It can withstand a tensile strength of ≤0.3 dB (max 66N), making it suitable for demanding network environments.
Wide Operating Range
The patchcord is designed to operate efficiently within a temperature range of -20°C to +70°C, making it versatile for various indoor and outdoor installations.
Corning /YOFC Fiber
US Conec MTP Connector
Color branches, easy to identify
Not sensitive to bending
our brand confidence comes from a strong production team
Procurement scene
Data center solutions
Data center solutions
100% strictly tested before delivery
MPO 3D test
MPO Polarity test
End surface test
applications
LAN
WAN
Data center

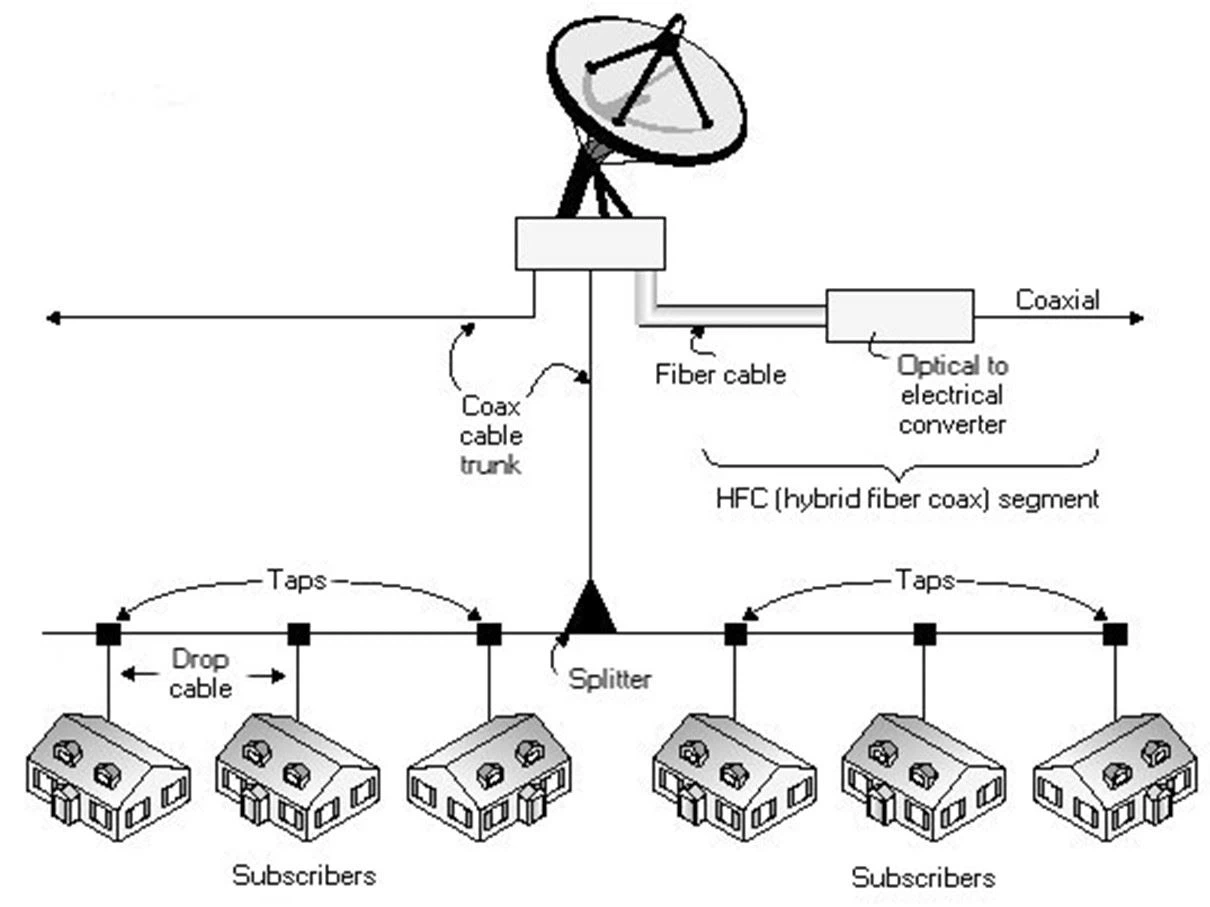

CATV
delivery(7-15 days)
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
how we can stand by you
- Quick response within 24 hours
- One-to-one consulting Service
- Professional technical team support (RL can even reach 85dB/ Grade B connectors)
- Super strict quality control (Real 1000 times plug experiment)
- Huge production capacity
- Never change prices arbitrarily
