PLC splitter, also called Planar Waveguide Circuit splitter, is a device used to divide one or two light beams to multiple light beams uniformly or combine multiple light beams to one or two light beams. It is a passive optical device with many input and output terminals, especially applicable to PON (EPON,GPON, BPON, FTTX, etc.) to connect the MDF (main distribution frame) and the terminal equipment and to branch the optical signal.
PLC splitter provides a low-cost light distribution solution with high stability and reliability. PLC splitters can offer a splitting ratio of up to 1x64, which is generally higher than the splits of FBT splitter that another common type of optical splitter.
Parameter | Unit | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
Insertion Loss at 23℃ | Max | dB | 3.8 | 7.1 | 10.4 | 13.7 | 17.0 | 20.3 |
Channel Uniformity | Max | dB | 0.5 | 0.6 | 1.0 | 1.3 | 1.5 | 1.7 |
PDL | Max | dB | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
Operating wavelength | nm | 1260～1650 | ||||||
Return Loss | Min | dB | 55 | |||||
Directivity | Min | dB | 55 | |||||
Operating Temperature | ℃ | -40～85 | ||||||
Storage Temperature | ℃ | -40～85 | ||||||
Fiber Type | - | G.657.A1 or Customized | ||||||
Basic Type | Dimension: | mm | 4×4×40 | 4×4×40 | 4×4×40 | 4×4×50 | 4×7×50 | 4×12×60 |
900um SFF Type | mm | 4×7×60 | 4×7×60 | 4×7×60 | 4×12×60 | 6×20×80 | 6×40×100 | |
ABS Module Type | mm | 10×80×100 | 10×80×100 | 10×80×100 | 18×80×120 | 18×80×120 | 18×115×140 | |
Corning/YOFC/Customized fiber
High quality ceramic ferrule connector
Small size and saving space
PON Network
CATV and LAN system
FTTH Network
End surface polishing
IL/RL test
End surface test
CE
CPR
ISO
ROHS
| PLC Splitter Type | Characteristics |
|---|---|
| Bare Fiber PLC Splitter | -All ends are bare fibers (0.9/2.0/3.0µm), easy to be spliced. -Requires little space during cabling. |

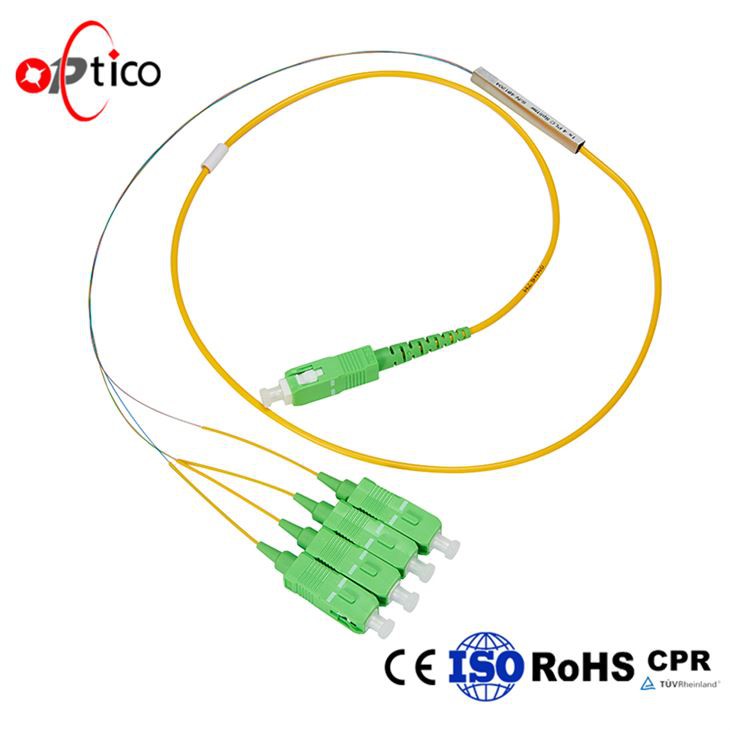

| Blockless PLC Splitter | -Resembles bare fiber PLC splitter with fiber optic connectors. Uses stainless tube package for the PLC splitter chip. |
| Fanout PLC Splitter | -Generally uses 0.9mm buffer fiber. -Adds a length of ribbon fiber terminated with fanout kit behind the PLC split chip. |
| ABS PLC Splitter | -Uses ABS plastic box to hold the PLC splitter chip. -Input fiber and output fibers are arranged on the same plate of the ABS box. -Can be installed in a standard 19” rack unit/enclosure. |
| LGX Box PLC Splitter | -The whole PLC splitter is housed in a metal box and the fiber optic adapters for both input and output fibers are on its front panel. -Can be used stand alone or be installed in the standard rack unit/enclosure. |
| Mini Plug-in PLC Splitter | -Looks like LGX box PLC splitter but usually uses ABS material box. -Can be used in outdoor fiber distribution boxes in FTTX. |
| Rack Mount PLC splitter | -Uses a standard 19” design package. -Can be installed in server racks in data centers or server rooms. -Suitable for high density cabling, up to 64 output ports in 1U pack. |
We are here to be your long-term partners,welcom to consult us!
