Fiber Optic IP68 Splice Closure
Place of Origin: Shenzhen,China
Brand Name: OPTICO
Type: FTTx Solutions
No. of Fiber: 24
Use: FTTH
Color: Black
Application: FTTH FTTB FTTX Network
Fiber count: 24 cores
Material: PP+GF
Function: Splicing
IP rating: IP 68
Product name: Joint closure termination box
Mounting: Pole or facade
Usage: Outdoor
Supply Ability:
500 Piece/Pieces per Day
Packaging Details: 1 pcs/inner box, 6 pcs per outer carton
Port: Ningbo
Application:

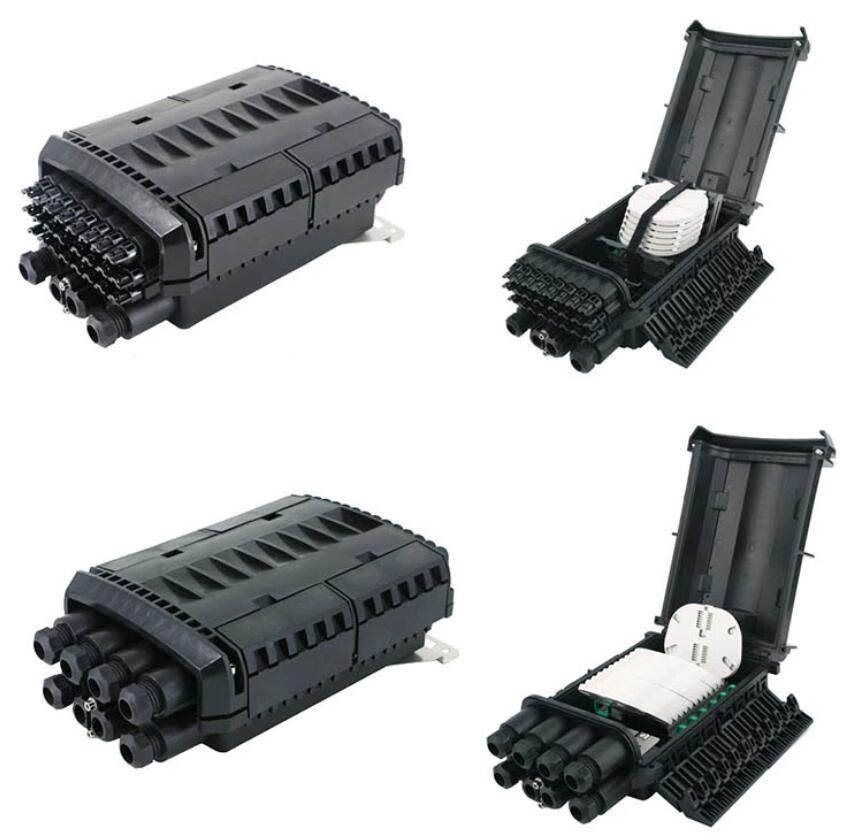

This Fiber Optic IP68 Splice Closure is a fiber optical distribution box that provides a cost-effective secure solution for the feeder cable to connect with out door drop cable in FTTx communication network system. Mounted on pole or on facade or in hanhole, It integrates both splicing and splitting functions. It has a IP 68 rating and it is a good solution to FTTH cable deployment. It is an IP68 rated enclosure manufactured from high quality PP+GF.
Features:
Water-proof design with IP-68 Protection level.

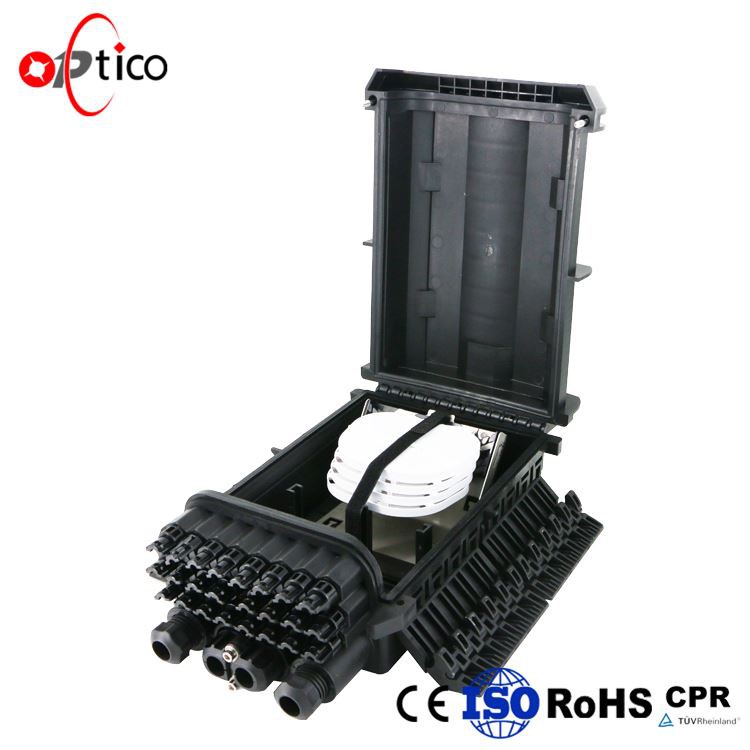

Integrated with flap-up splice cassette and adaptor holder.
Impact test:IK10,Pull Force:100N,Full rugged design
All stainless metal plate and anti-rusting bolts, nuts.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
Mechanical sealing structure and mid-span cable entry.
24 ports cable entrance for drop cable .
Applications:
Wall mounting and pole mounting installation
FTTH pre-installation and filed installation
2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
Standard Accessories:
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, cable tube, wreach, cover holder, rubber seal for cable entrance.
Optional Accessories: Pole ring
Technical Data:
Dimensions | 385*240*155mm |
Number of ports | 4in and 24 out |
Suitable connector type | SC/ LC |
Color | Black |
Max tray capacity | 4 |
Maximum inlet cable diameter (single port) | 16mm |
Maximum outbound cable diameter | 2*3/2*5 drop cable or round cable |
IP rating | IP 68 |
Certificates:

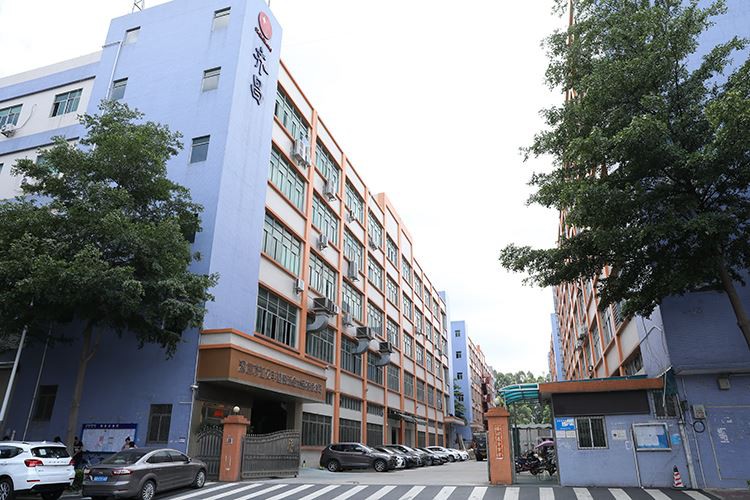

Factory:
OPTICO COMMUNICATION (www.fiberopticom.com) focuses on the development of fiber optic network communication product lines and provides a comprehensive solution to the fiber connectivity system components. We supply fiber optic components, such as fiber patch cord, PLC splitter, SFP transceiver, MTP/MPO, CWDM/DWDM, FTTH solution, Data center wiring solution, etc. All the products adopt strict quality standards in the production and inspection, ensuring excellent operation performance and good product stability, and safely and reliably ensuring the long-term use of products.
For more details, pls visit OPTICO website: www.fiberopticom.com
