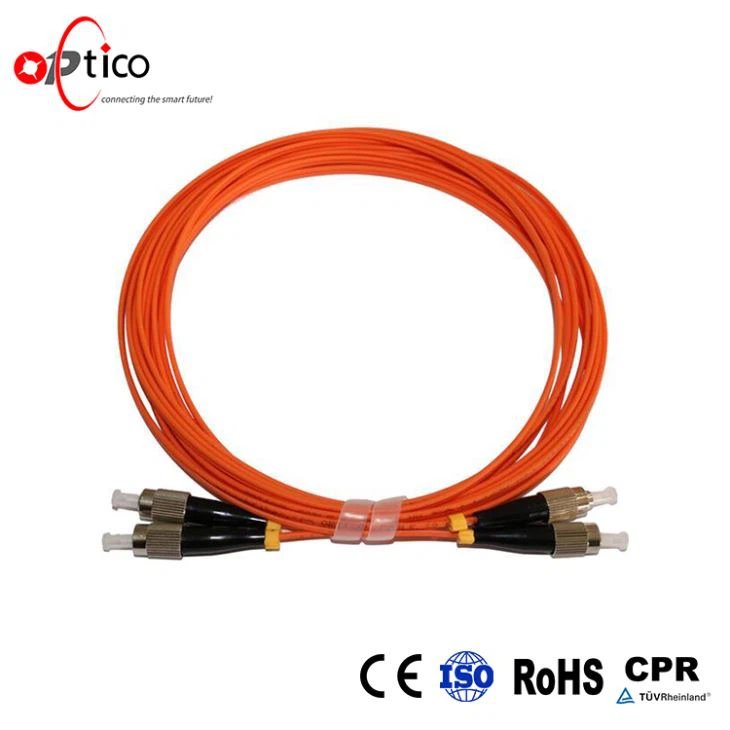

Product profile
The Duplex FC Fiber Patch Cord is a reliable and high-performance fiber optic cable designed for seamless data transmission in various networking applications. Similar to a coaxial cable, this jumper is free from a mesh shield and features a light-transmitting glass core. With precision engineering, it ensures excellent signal integrity and optimal data transfer for both single-mode and multimode fiber networks.
Product specifications
| Item | Single mode | Multimode |
| Insertion Loss | ≤0.2dB(APC), IL<=0.3dB(PC); | ≤0.25dB |
| Return Loss | ≥50dB(PC), ≥65dB(APC) | |
| Repeatability | ≤0.1 | |
| Durability | ≤0.2dB typical change, 1000 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40°C to +85°C | -20°C to +70°C |
Product features
Superior Light Transmission: The core of this fiber patch cord serves as the conduit for light transmission. The surrounding glass envelope with a lower refractive index than the core protects the light within the core, minimizing signal loss and ensuring efficient data transmission.
Low Insertion Loss: The Duplex FC Fiber Patch Cord exhibits remarkably low insertion loss for both single-mode and multimode variants. For single-mode, the insertion loss is ≤0.2dB (APC) and ≤0.3dB (PC), while for multimode, it is ≤0.25dB, guaranteeing reliable and consistent signal transfer.
High Return Loss: With excellent return loss values of ≥50dB (PC) and ≥65dB (APC), this fiber patch cord maintains optimal signal reflections, reducing signal distortion and enhancing network performance.
Durable and Reliable: The Duplex FC Fiber Patch Cord boasts exceptional durability, with a typical change of ≤0.2dB after 1000 matings. It has been engineered to withstand harsh environmental conditions, ensuring consistent and reliable connectivity.
Wide Operating Temperature Range: Whether operating in single-mode or multimode, this patch cord can withstand a wide range of temperatures, from -40°C to +85°C for single-mode and -20°C to +70°C for multimode, making it suitable for various indoor and outdoor settings.
Corning/YOFC Fiber
CCTC Ceramic ferrule
our brand confidence comes from a strong production team
applications

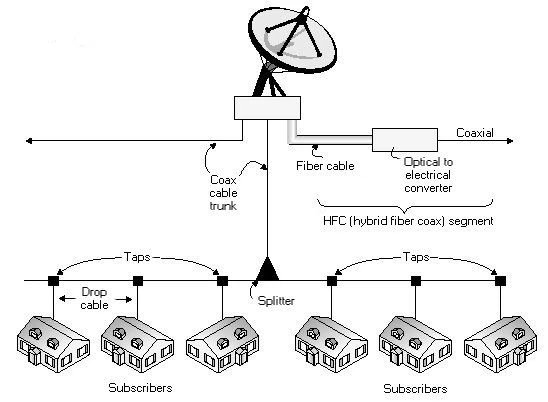

CATV

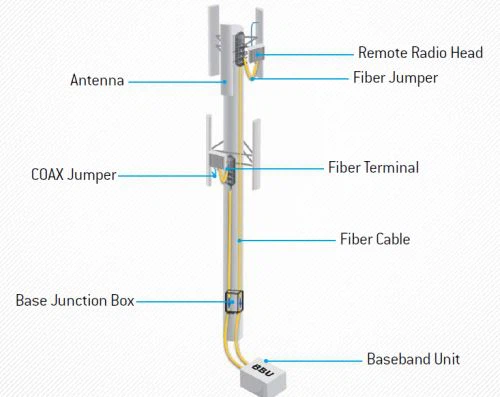

FTTA
FTTH
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
100% strictly tested before delivery
IL RL Test
3D tested by Daisi
End surface test
Temperature test
delivery(7-15 days)
How To Manage And Maintain Duplex FC Fiber Patch Cord?
Method / Steps:
1. Pay attention to the bending radius of the fiber jumper. Generally speaking, fiber benders with diameters of 1.6mm and 3.0mm can withstand a bending radius of not less than 3.5cm, while MPO fiber jumpers can withstand a bending radius of not less than 10 times their diameter;
2. Do not pull or squeeze the fiber jumper. When installing fiber patch cords, excessive force may stress the fiber jumpers and connectors at both ends, affecting performance. It's worth noting that if you need to use a lot of effort to pull a fiber jumper, there may be some problems in the middle;
3. Route the jumpers according to the path of the fiber jumper. If the existing jumper length matches the current application, the jumper can be reused, but you still need to remove the jumper from the fiber distribution frame and reinstall the jump according to the new path. line. This is the only way to ensure that the jumper is not knotted, not bent and not stretched. In order to effectively route the jumpers, a suitable path should be found for the jumpers between the two ports, while avoiding the jumpers intertwined and crowded;
4. Managing fiber jumpers in a bundle or tie can make the panels look neat, but if you bundle them too tightly or tie the fiber jumpers, you increase the risk of over-squeezing. To avoid this problem, you can properly "unbundle" the fiber jumper to allow the fiber jumper to move freely;
5, labeling is a very necessary job, but also one of the most important tasks of network system administrators. It is necessary to properly label any management point (including the wiring panel) of the network cabling infrastructure so that network technicians can accurately find the start and end points of the cable;
6. Check the fiber patch cord for physical damage, including indentation and connector damage due to sudden bending of the sheath. The above related management tools and complete solutions are available from OPTICO.
