1x8 MM ABS PLC Splitter
OPTICO supply standard quality of Multimode OM2, OM3, OM4 fiber optic splitter with different length from 0.3m to 2.0m with 0.9mm or 2.0mm or 3.0mm diameter of pigtail. Terminal connector help you add any type of terminal connector such as SC/UPC, LC/UPC, FC/UPC, etc.
|
Parameters |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
2x4 |
2x8 |
2x16 |
|
Operating Wavelength (nm) |
1260~1650 |
||||||||
|
Fiber Type |
Single mode fiber |
||||||||
|
Fiber OD |
250um bare fiber/900um with loose tube/ 2mm with kevlar /3mm with kevlar |
||||||||
|
Insertion Loss (dB) S Grade |
4 |
7.3 |
10.5 |
13.7 |
16.9 |
21 |
4.2 |
7.8 |
11.2 |
|
Insertion Loss (dB) P Grade |
3.8 |
7 |
10.2 |
13.5 |
16.5 |
20.5 |
3.8 |
7.4 |
10.8 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
1 |
1.4 |
1.5 |
|
Return Loss (dB) S Grade |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Return Loss (dB) P Grade |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
0.2 |
0.2 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
0.8 |
|
Temperature Stability(-40~85 °C)(dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (°C) |
-40~85 |
||||||||
|
Storage Temperature (°C) |
-40~85 |
||||||||
|
Note |
1) Specified without connectors; 2)Add an additional 0.2dB loss per connector |
||||||||

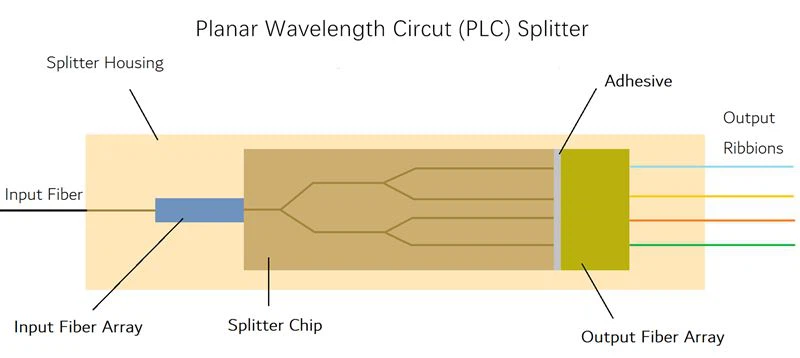

The inner structure of PLC Splitter
Features of 1x8 MM ABS PLC Splitter

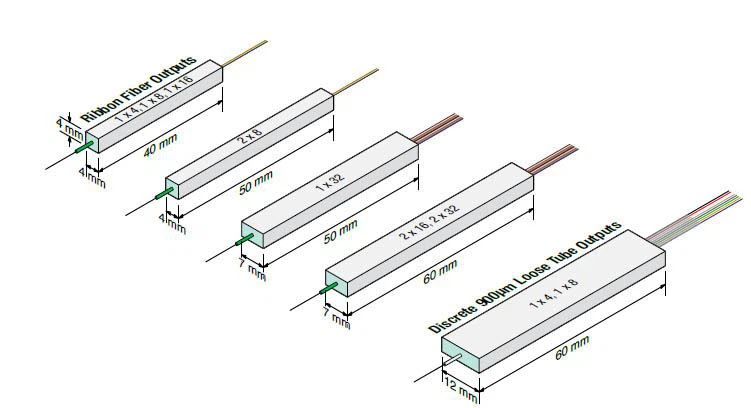

Different number of branches, different sizes

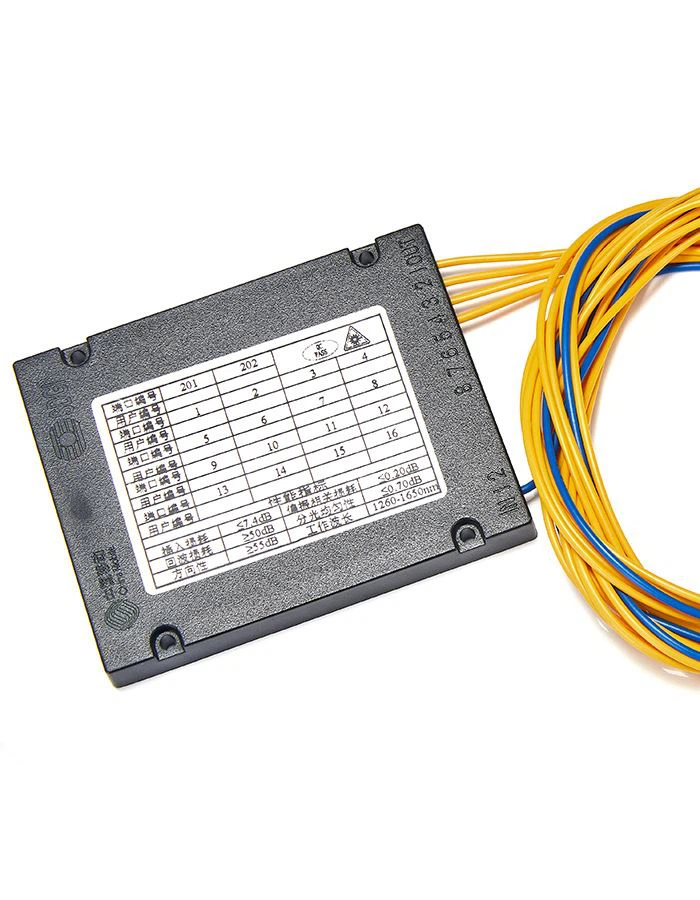

Compact design

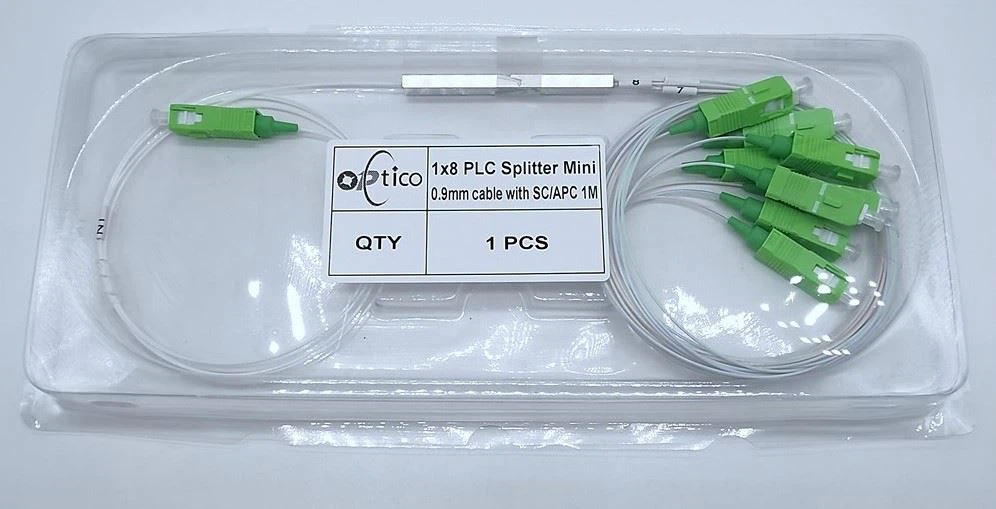

Safe and beautiful packaging
Scenes of application

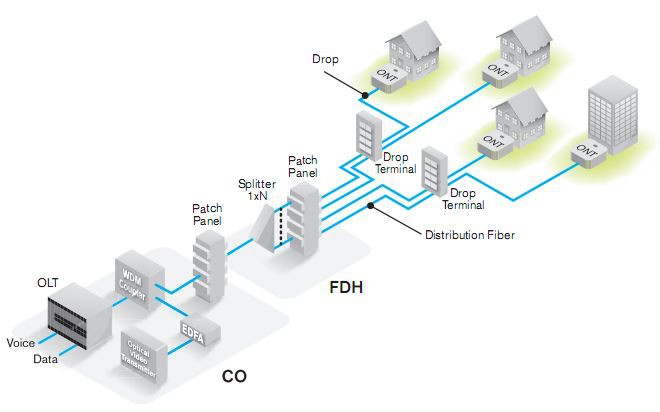

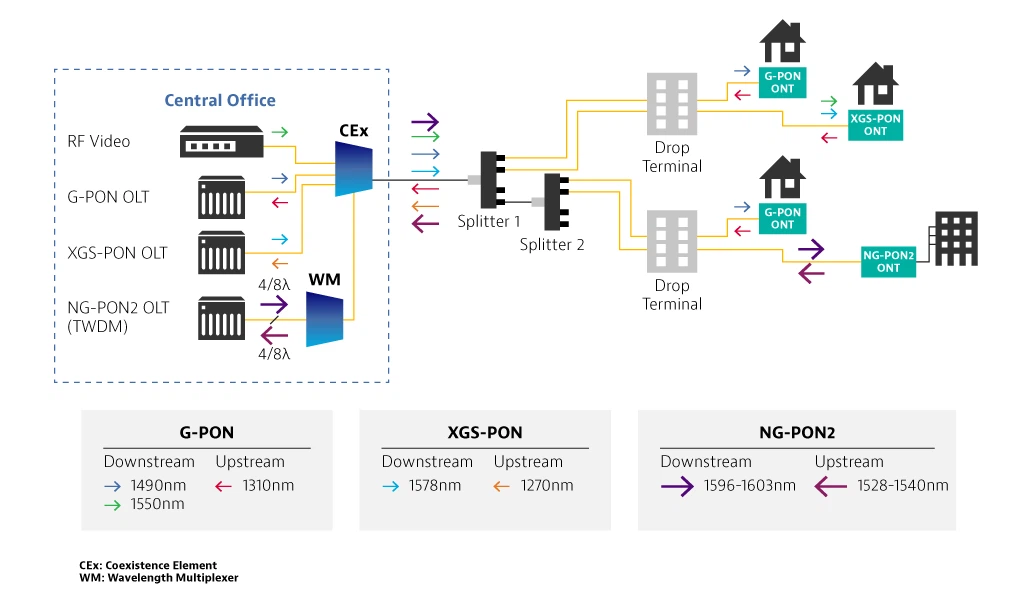

PON network

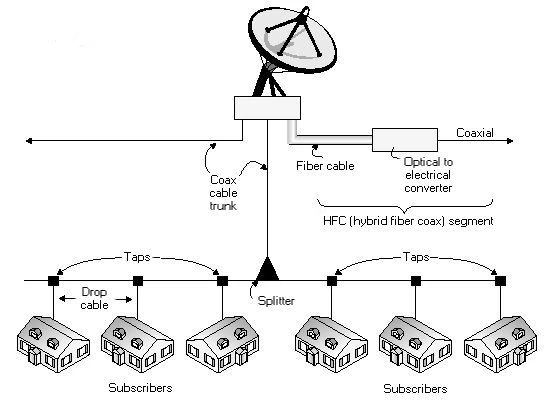

CATV
FTTX networks
Types of certificates
CE

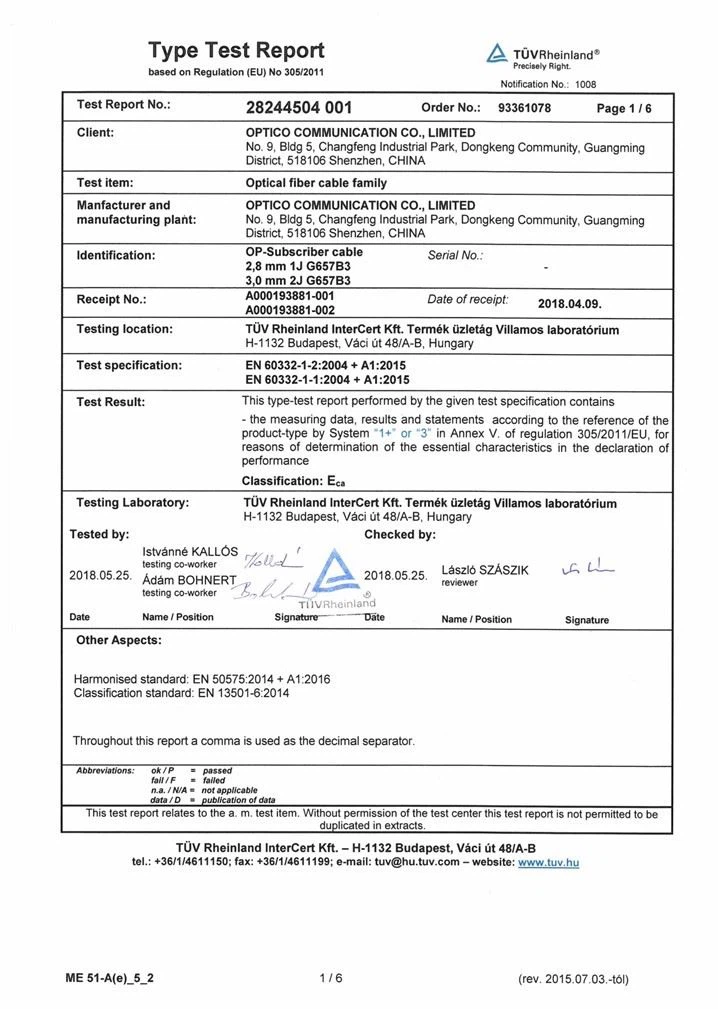

CPR

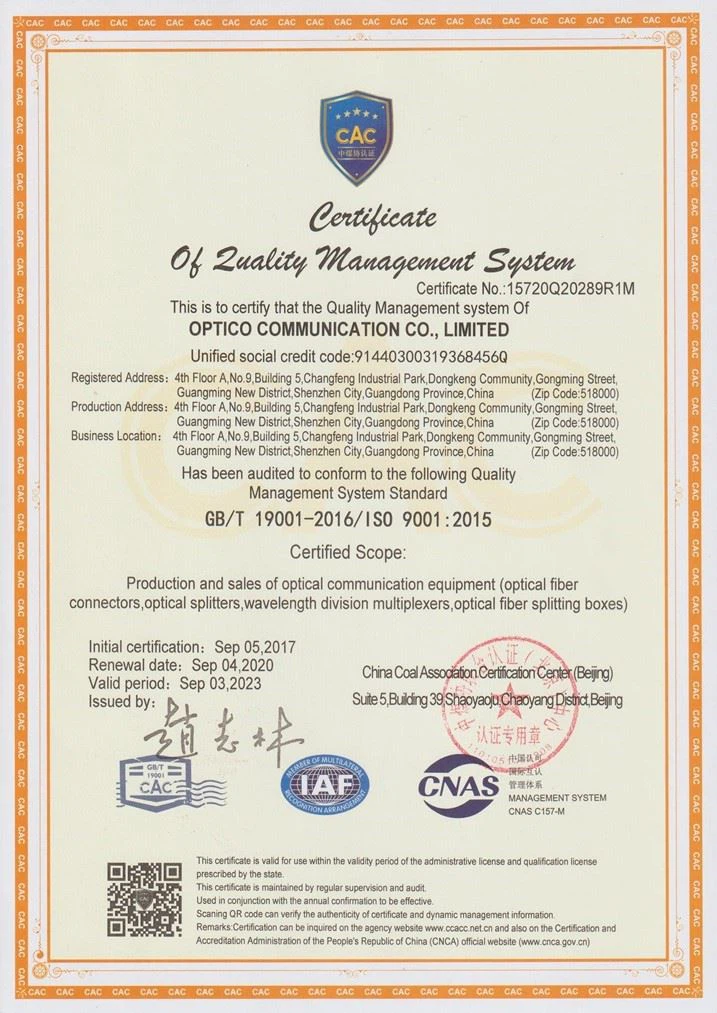

ISO
ROHS
Mission will be achieved in 7-15 days
Application advantages:
1. Loss is not sensitive to the wavelength of transmitted light, and can meet the transmission needs of different wavelengths (1260-1650nm).
2. The light is evenly distributed, and the signal can be evenly distributed to users.
3. The FC Fiber Optic PLC Splitter mall size (such as the minimum size of 1 × 32 can be achieved, 4 × 7 × 50mm), can be directly installed in the existing various transfer boxes, without special design to leave a lot of installation space.
4. There are many shunt channels for a single device, which can reach more than 32 channels.
5. Low cost of multiple channels, the more branches, the more obvious the cost advantage.
A strong production team is our confidence and pride!
Details of our company:
Place of Origin: Shenzhen, China
Brand Name: OPTICO
Model Number: OP-ABSPLC104-SCP
Type: ABS module type
Use: FTTX
Product name: 1x4 ABS Box PLC Splitter SC(PC)
Application: FTTH, FTTB, FTTX Network
Apply for Fiber OD: 2mm cable, 3mm cable
Splitter Wavelength: 1260~1650nm
Certification: CE,ROHS,ISO9001
Supply Ability: 100000 pcs/month
Packaging Details: 2 pcs ABS Box 1x4 PLC Splitter SC(PC)/inner box, suitable quantity per carton
