Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of cv014 dome fiber optic splice closure ip68 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
CV014 is widely applied to the splicing, distributing variable optical cables and splitting.

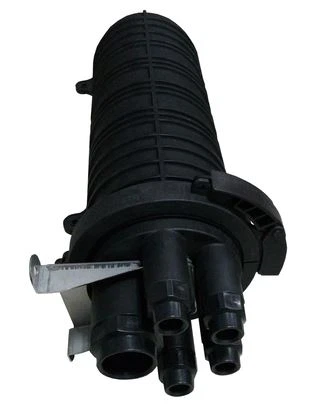

Overlook
Inside look
Outlook
Features:
Adapter: can load 36pcs SC simple adapters or 36pcs LC duplex adapters
Splitter: can loaded 1pc PLC splitter 1*8,1*16 or 1*32
Splice tray: 3pcs, each 24cores
Cable port: 5 cable ports: 4pcs(φ18mm), 1pcs (φ42mm, cable no cutting). All cable ports are mechanical sealing
With different size rubber gasket for simplex, FTTH drop cable entry/exit
Waterproof: IP68
Wall-mounting, aerial hanger and pole holding
Material: high impact resistance PP materials with UV
Specification：
Model | Capacity | Dimension | Splice tray | Weight |
CV014 | 72 fibers Max. 144 fibers | φ182.5 x 521.1 mm | 3pcs, each 24 fibers If without adapter panel, Max.6pcs | 4.0 kgs |
