Horizontal Fiber Optic Splice Closure CH006F

Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of horizontal fiber optic splice closure ch006f in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.

CH006F is suitable for outdoors cable direct succeeded and optical shunt connection protection. The box body is made of high quality ABS material, internal turning plate of wiring is metal material, rubber ring sealing between the box body can be repeated.

The waterproof head PG21 which is on the left of box body has 12 round holes Φ 2.2 mm can output the FTTH cable to the client, another two waterproof heads PG21 which are on the right of box body can be in and out of the Φ12mm outdoor fiber optic cable. Its protection grade is IP66, product standard configuration is for wall installation accessories, overhead and or derrick installation hanging fixture are optional.

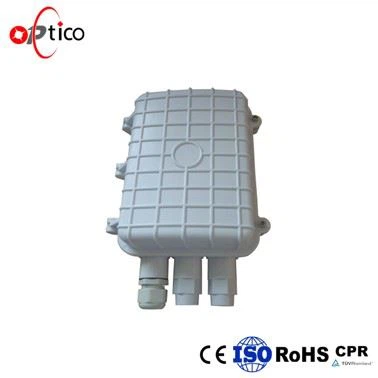

Outlook

Inside

Overlook

Features:

Can install 1pc 1x16 PLC, install 2 splice trays, each 12 fibers

Turning plate is integrated for metal material integrated wiring and line management, can install adapter SC, LC,…

Environmental temperature: -40°C to + 85°C

Atmospheric pressure:70-106 Kpa

Intensity:15 KV(DC) not being broken down, has no flying arc.

Components: Sealing tape, Insulation tape, Nylon tie, optical cable heat shrinkable sleeve, mental hook, seal fittings, numeral bar, retaining ring
