Products Description

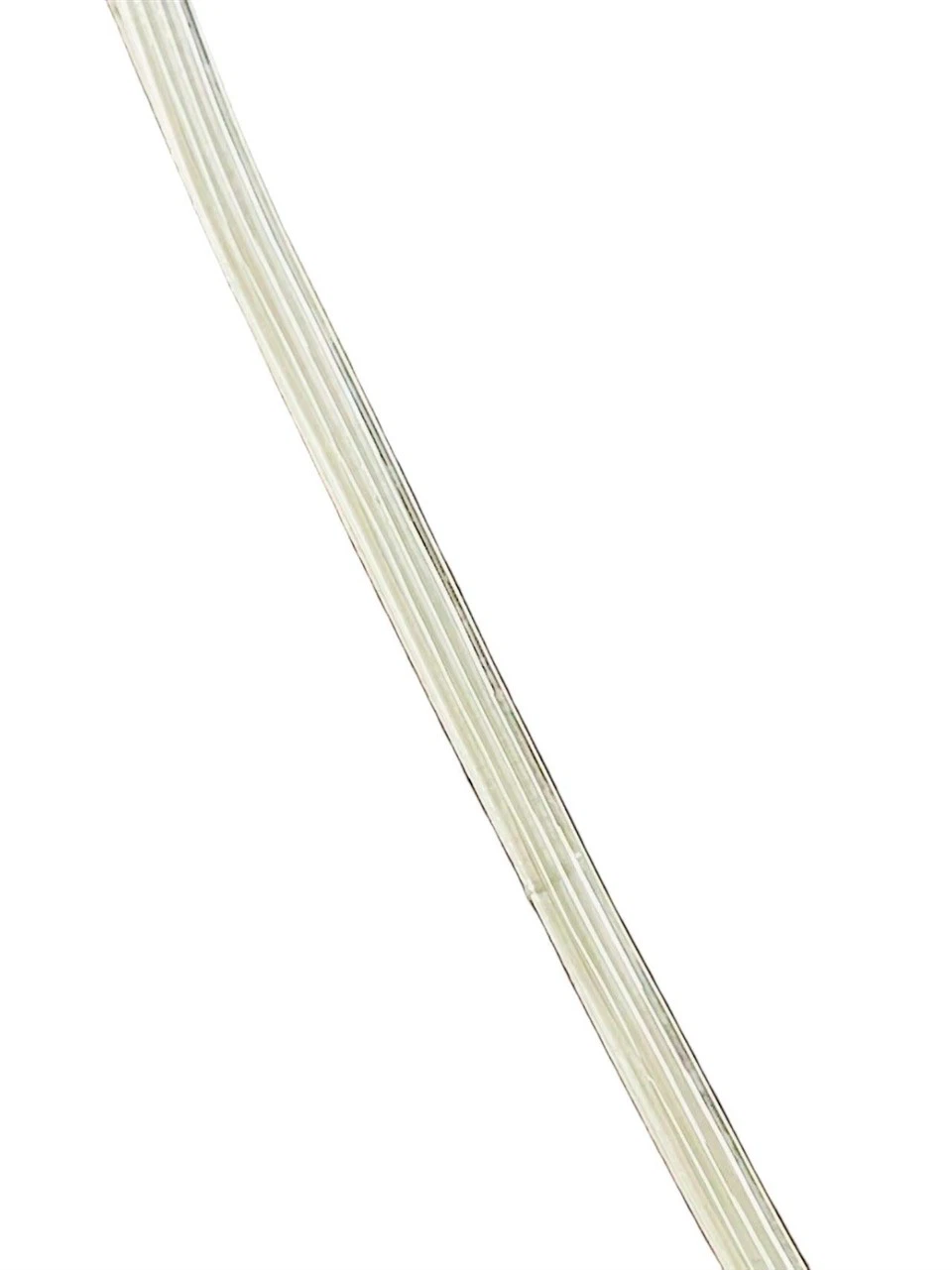

The rapid development of Fiber to the Home, that is FTTR, all-optical Wi-Fi solution directly extends the fiber to each room to achieve Gigabit coverage anywhere in the home or building. But in some specific scenarios, FTTR is more difficult to achieve, such as already renovated houses and offices that only support FTTH, so we need some external force to help achieve FTTR construction. This Invisible Fiber self Adhesive is an extension of FTTR solutions that provides a virtually invisible and faster installation method to extend fiber optic cables inside the room. It can help accelerate the adoption of fiber services by installing faster than traditional installation techniques with virtually invisible results. These benefits can lead to higher subscriber acceptance and acceptance rates. Utilizing 3M clear adhesive, engineers or subscribers can easily attach to the wall.
Installation instruction: Simply remove the adhesive protective film and you can proceed with direct pasting and laying, achieving a minimalist construction method that "gets it right in one step" and significantly enhancing efficiency. Simultaneously, it strengthens tensile performance and optimizes long-term adhesion, marking a dual breakthrough in ease of use and reliability.
Product specifications
Fiber parameter
|
No. |
Items |
Unit |
Specification |
||
|
G.657B3 |
|||||
|
1 |
Mode Field Diameter |
1310nm |
μm |
8.8±0.4 |
|
|
1550nm |
μm |
9.8±0.5 |
|||
|
2 |
Cladding Diameter |
μm |
125.0±0.7 |
||
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
||
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
||
|
5 |
Coating Diameter |
μm |
245±5 |
||
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
||
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
||
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
||
|
9 |
Attenuation |
1310nm |
dB/km |
≤0.35 |
|
|
1550nm |
dB/km |
≤0.21 |
|||
|
10 |
Macro-Bending Loss |
1turn×5mm radius @1550nm |
dB |
≤0.15 |
|
|
1turn×5mm radius @1625nm |
dB |
≤0.45 |
|||

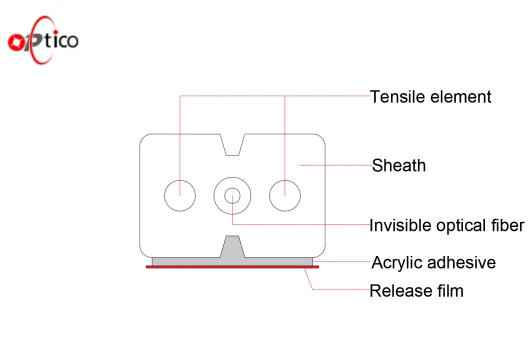

Cable Parameters
|
Items |
Specifications |
|
|
Fiber Count |
1 |
|
|
Fiber |
Dimension |
245±5μm |
|
Color |
Natural |
|
|
Jacket |
Dimension |
(3.0±0.15)×(1.1±0.1) mm |
|
Material |
PVC |
|
|
Color |
Natural |
|
|
Tensile element |
2*250um Fiber |
|
|
Adhesive backing |
3M |
|
Mechanical and Environmental Characteristics
|
Items |
Unite |
Specifications |
|
Tension(Long Term) |
N |
20 |
|
Tension(Short Term) |
N |
40 |
|
Crush(Long Term) |
N/10cm |
100 |
|
Crush(Short Term) |
N/10cm |
500 |
|
Min. Bend Radius(Dynamic) |
mm |
20 |
|
Min. Bend Radius(Static) |
mm |
10 |
|
Operating Temperature |
℃ |
-20～+60 |
|
Storage Temperature |
℃ |
-20～+60 |
