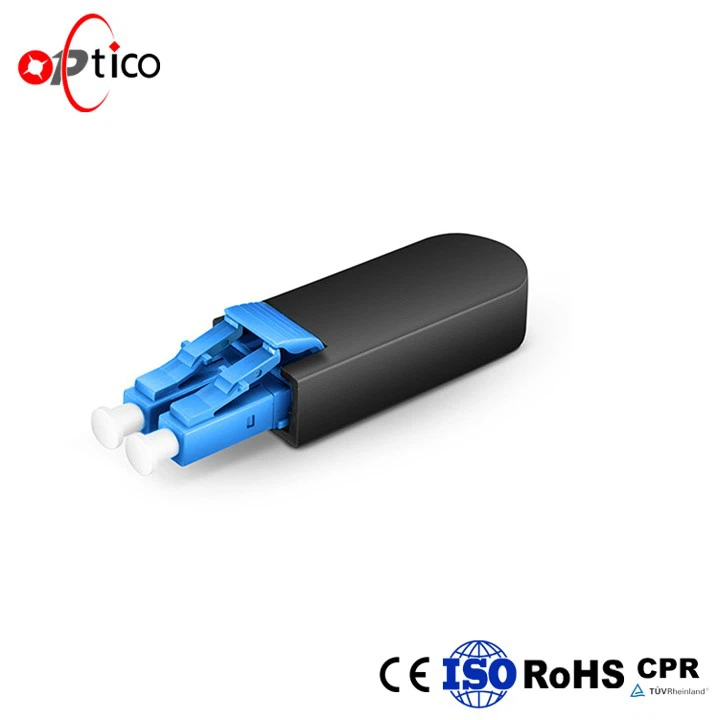

LC UPC Duplex SM Loop Back
Through the return signal (mainly connecting the TX transmitting end to the receiving end of the RX in pairs), various potential abnormalities in the network link can be detected to achieve the test and evaluation of a single component or interface on the optical fiber network and the network. It is an ideal choice for testing the transmitted optical power and receiving sensitivity.
Advantage:
High temperature stability
Precise connector
Excellent mechanical capability
Compliant with ISO9001:2008,RoHS standard and Telcordia GR-326-CORD
Application:
Cabling system,ODF
Optical data transmission
Building network access
FTTX
Some details of our product line
One of our office near the factory
Types of our certificates
Various delivery way to keep your products safe
7-15 days are promised
LC UPC Duplex SM Loop Back is matched with 40G/100G optical module, used for fiber test, network repair and diagnosis of equipment failure. It is an ideal choice for testing the transmitted optical power and receiving sensitivity.
If interested,welcom to consult!
Hot Tags: lc upc duplex sm loop back, China, manufacturers, suppliers, factory, wholesale, customized, 12F MTP MPO Female OM4 Loopback, Fiber Connectors, 12F MTP MPO Female SM Loopback, LC UPC Duplex SM Loop Back
| Fiber Optic Loop Back | |
| Style | LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type | 9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, |
| 10G (Multimode) OM3 | |
| Cable Type | Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber |
| PVC or LSZH | |
| Polishing Manner | UPC, APC (8°& 6°) |
| Insertion Loss | ≤ 0.2dB (For Singlemode Master) ≤ 0.3dB (For Singlemode Standard); ≤ 0.5dB (For Multimode) Tested by JDS RM 3750 |
| Return Loss (For Singlemode) | UPC ≥ 50dB, APC ≥ 60dB (typ.65dB) |
| Durability | ±0.2dB typical change,1000 matings |
| Interchangeablity | ≤ 0.2dB |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Geometry Requirement (For Singlemode) | Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm |
