FC FC Patch Cord Cable

Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of fc fc patch cord cable in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.

FC fiber patch cord jumper is a fiber jumper with FC connector at the end, and a metal sleeve is used on the outside of the connector, which is conducive to multiple insertion and removal. FC fiber jumpers are fastened with screw buckles and can be used in high vibration environments.It was first developed by Japan NTT. It has a metal shell and a bolt connection structure. The end uses an FC connector. It can very accurately locate the fiber optic cable transmitted by the light source transmitter and receiver photoinspector.



Corning/YOFC Fiber

CCTC Ceramic ferrule

Scenes of applications

1. communication system;

2. Optical fiber access network;

3. data transmission;

4. CATV;

5. local area network;

6. Optical test equipment;

7. Fiber Optic Sensor

Features and advantages

1. All our fiber patchcords' connectors can reach Grade B

2. FC fiber patch cord jumper has simple structure and convenient operation;

3. The metal shell used for FC fiber jumper has certain reliability;

4. Low insertion loss and large return loss;

5. Good inter-insertion performance;

6. Good temperature stability.

Our brand confidence comes from a strong production team

100% Strictly Tested before delivery

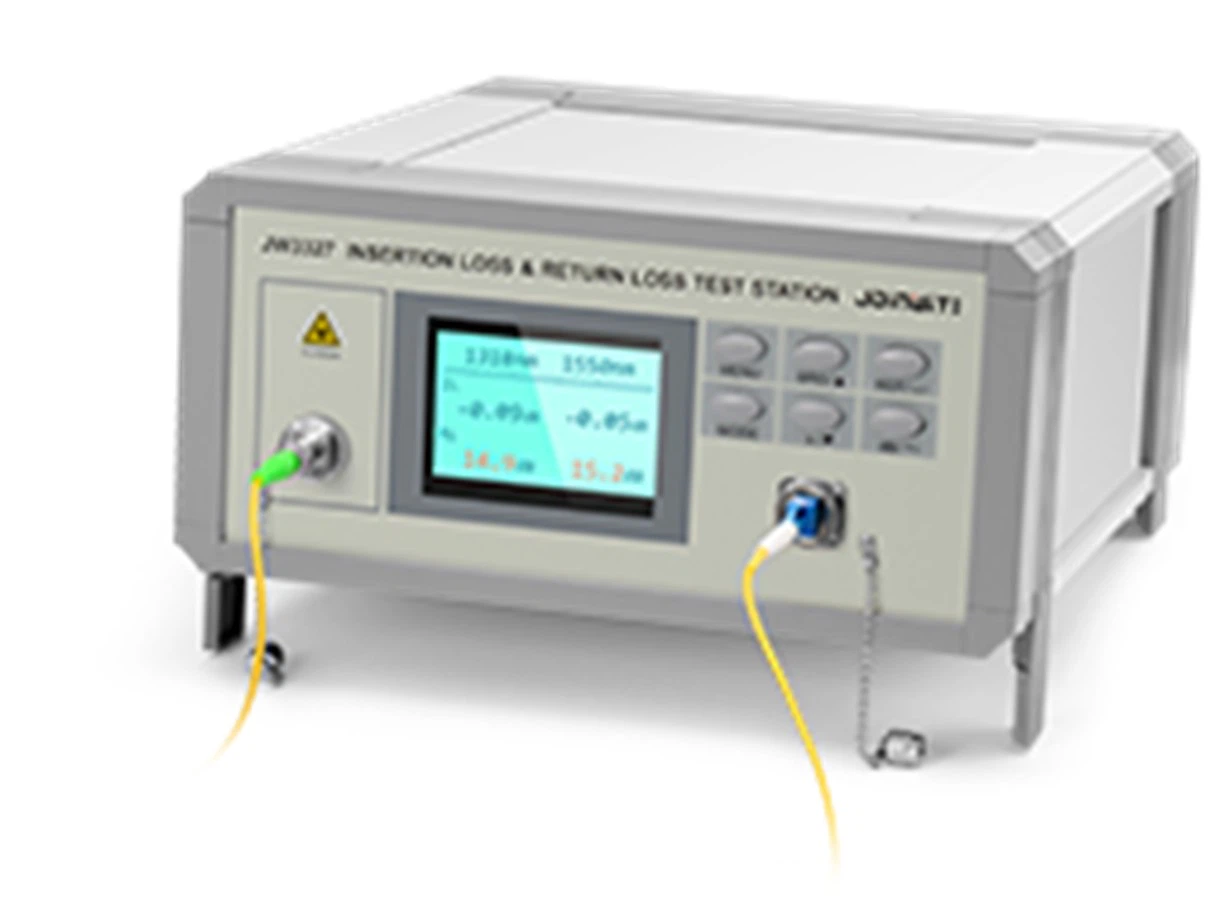

IL RL Test

3D tested by Daisi

End surface Test

Temperature test

CE

CPR

ISO

RoHS

Coupling Test

Drop Test

Durability Test

High-Constant Temperature and Humidity Test

High-Low Temperature Test

Loss Test

Micro Cross Section Inspection Test

Resistant to Repeated Bending Test

Single Vertical Burning Test

Temperature Change Test

UV Test

Precautions For Using Optical Fiber Jumper:

The transmit and receive wavelengths of the optical modules at both ends of the fiber jumper must be the same, that is to say, the two ends of the optical fiber must be optical modules of the same wavelength, and the simple way to distinguish is that the color of the optical module must be the same. In general, short-wave optical modules use multi-mode optical fibers (orange optical fibers), and long-wave optical modules use single-mode optical fibers (yellow optical fibers) to ensure the accuracy of data transmission.

1. The ceramic ferrule and the end face of the fiber jumper must be wiped clean with alcohol and absorbent cotton before use.

2. Do not excessively bend and loop the optical fiber during use, which will increase the attenuation of light during transmission. The minimum bending radius of the optical fiber is less than 30mm. The ceramic ferrule and the end face of the fiber jumper must be wiped clean with alcohol and cotton wool.

3. Protect the ferrule and the end surface of the ferrule to prevent bumps and pollution. Bring a dust cap in time after disassembly.

4. Do not look directly at the end of the fiber when the laser signal is transmitted.

5. After the fiber jumper is used, the fiber connector must be protected with a protective sleeve. Dust and oil will damage the coupling of the fiber.

6. If the optical fiber connector is dirty, you can clean it with a cotton swab dipped in alcohol, otherwise it will affect the communication quality.
