LC Fiber PLC Splitter ABS Box
An optical fiber splitter is an optical fiber passive device that splits / combines optical signals, and generally separates or combines optical signals of the same wavelength. According to the different arrangement of fiber splitter ports, it can be divided into symmetric star splitter and asymmetric tree splitter; according to fiber type, it can be divided into single mode fiber splitter and multimode fiber splitter According to the bandwidth, it can be divided into narrow-band fiber splitter and broadband fiber splitter. According to the manufacturing method, the common fusion taper (FBT) splitter and planar optical waveguide (PLC) splitter.
| Item | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | |
| Fiber Type | SMF-28e or Customized | |||||
| Operating Wavelength (nm) | 1260-1650 | |||||
| Insertion Loss (dB) | Max(P/A) | 4 | 7.2 | 10.5 | 13.5 | 16.9 |
| Loss Uniformity (dB) | Max | 0.4 | 0.6 | 0.8 | 1 | 1.5 |
| Return Loss(dB) | Min (P/A) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) |
Max | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 |
| Temperature Stability (-40 ～85 ℃)(dB) | Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 |
| Operating (℃) /Storage(℃) | -40～+85 | |||||
The inner structure of our PLC Splitter
Advantages of our PLC Splitter
The light signal is evenly distributed
Corning/YOFC Fiber
High return loss and low insertion loss
Scenes of application
PON Networks

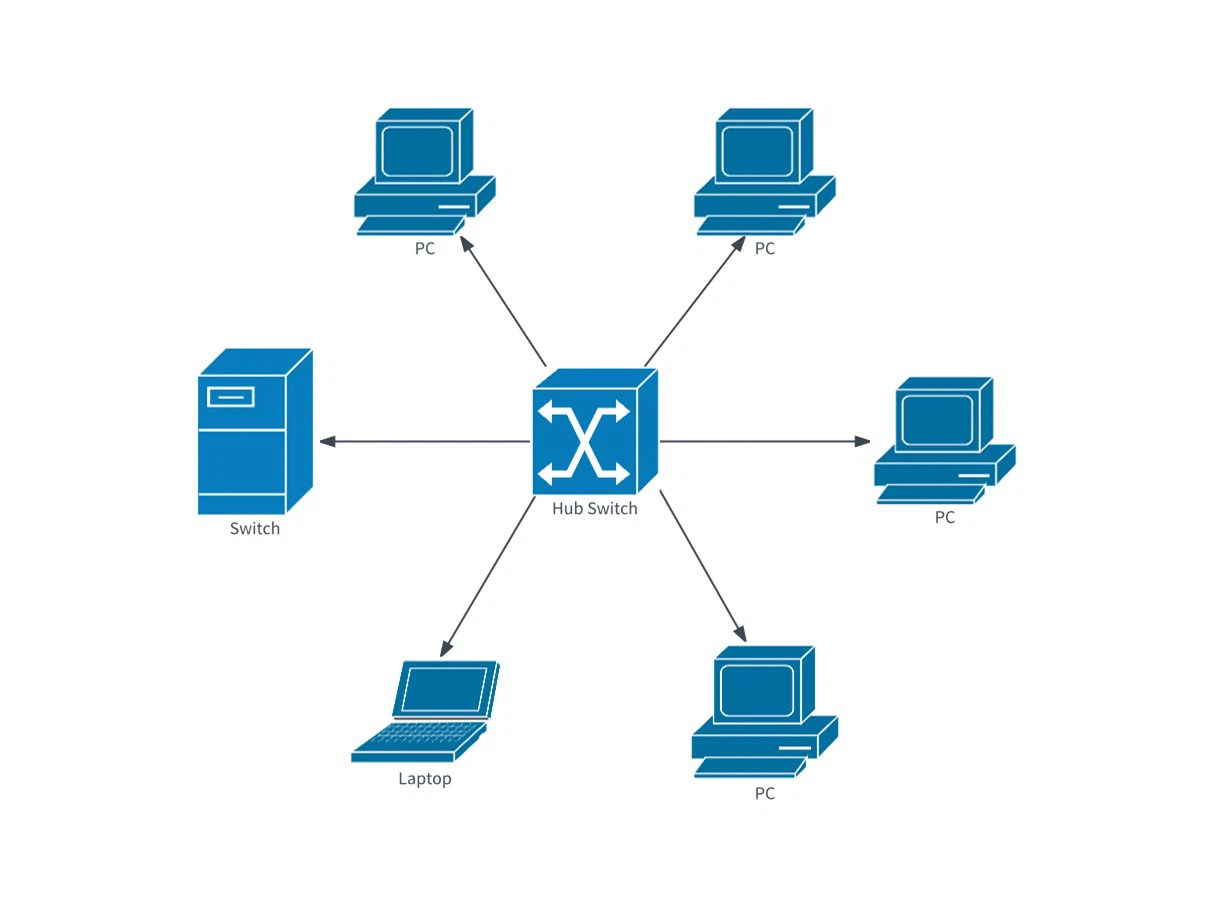

LAN Networks
FTTH Solution
Our brand confidence comes from a strong production team
Strictly tested before delivery time
IL RL Test
High and low temperature test
3D tested by Daisi device
Types of our certificates

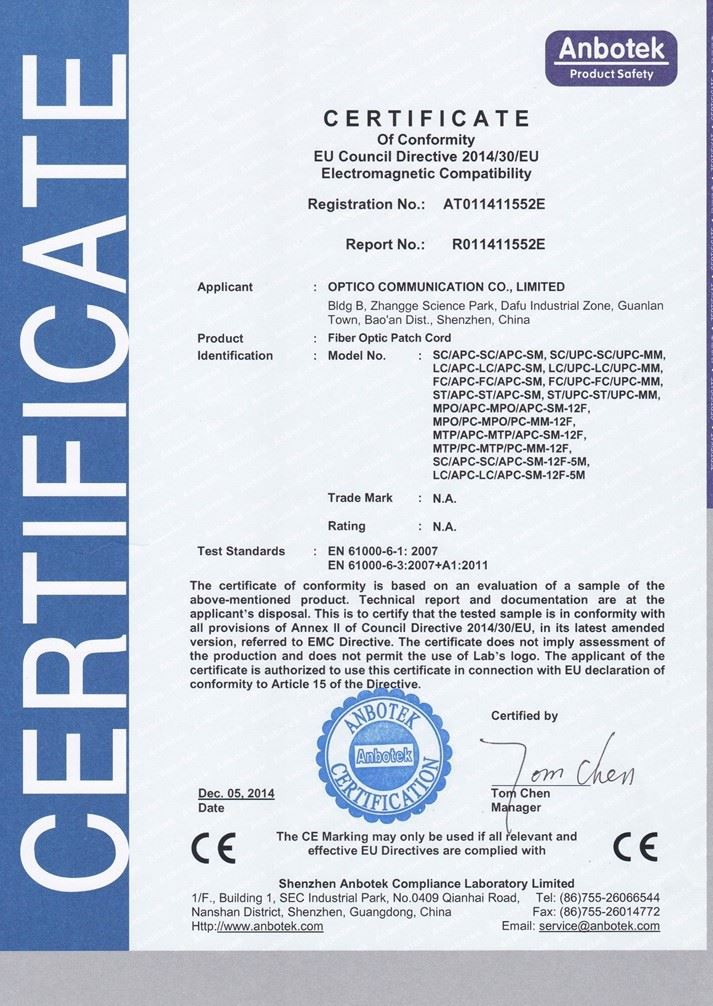

CE
CPR
ISO

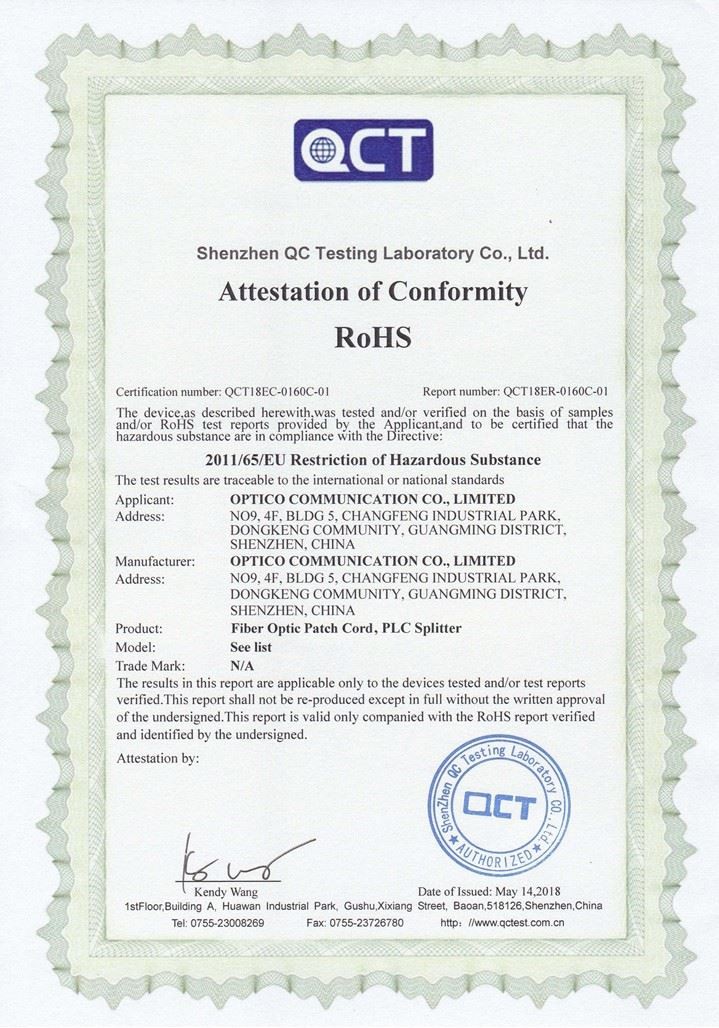

ROHS
Operation Instructions And Precautions:
(1) Preparation before use:
a. Prepare anhydrous alcohol and dust-free wipe paper.
b. If possible, prepare a portable optical fiber magnifier (at least 200 times) used in the project. c. Reserve some related standard tests and standard adapters.
d. Put on clean finger cots when possible.
7-15 DAYS
Matters Needing Attention During Use
A. After unpacking the product, check whether the product is damaged.
B. Check the product channel for dust-proof protective equipment.
c. Select the corresponding fiber connector according to the model of the product. Clean the end of the fiber connector before connecting. When cleaning, the wiping paper (at least 3 layers or more) dipped in alcohol should be laid flat on the table. When wiping, wipe it in one direction along the angle of the ceramic surface, and it should not be wiped back and forth to prevent damage to the end surface.
d. After cleaning, distinguish the input and output ports, and then remove the dust-proof device of the product to be used, and assemble the connector. Please pay attention to the installation (take SC type as an example) as follows: Install the connector so that the key surface of the connector is consistent with the notch surface of the adapter, and then insert it horizontally along the adapter. When you hear the sound of "click", then observe whether the white wire on the connector is flush with the edge of the adapter. If it is flat, it means the card is locked in place.
Then connect the input end and each output end to the test system in turn to determine whether the optical index meets the requirements. For other types of connectors, they need to be installed in place according to the actual model.
