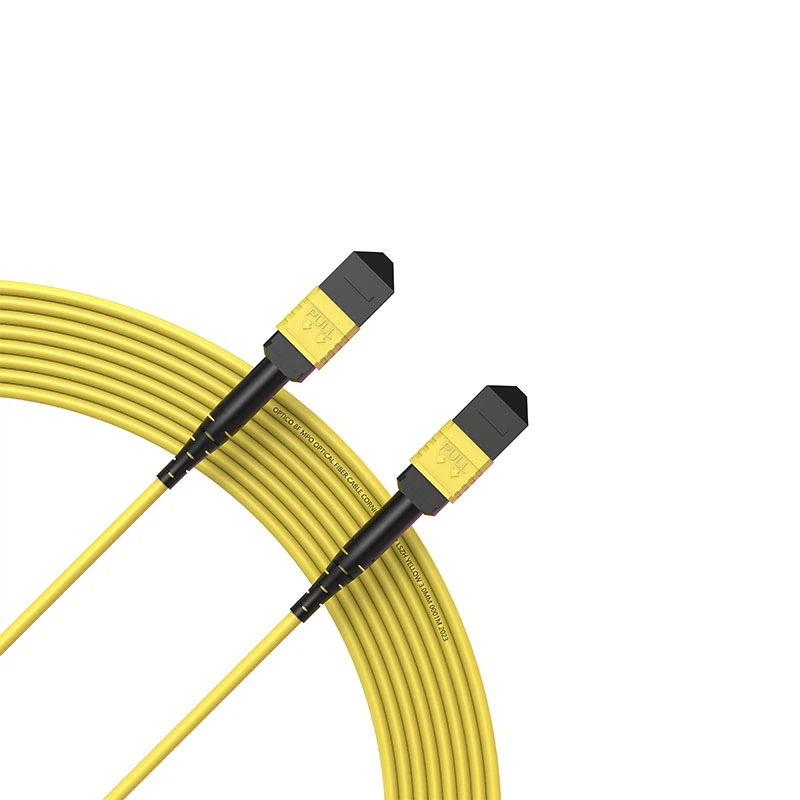

MTP MPO Female To Female Trunk Cable

The MTP MPO Female to Female Trunk Cable is a high-performance multi-fiber cable solution that utilizes the MPO/MTP connector for efficient and reliable connectivity. Available in various fiber counts and types, including both single-mode(G652D, G657A1 etc.) and multimode options(62.5/125, 10G OM2 / OM3 / OM4, Bend-insensitive fiber, etc.) , this trunk cable offers superior performance and versatility for a wide range of applications.  MTP MPO patch cords optimize space, offer superior flexibility, and ensure rapid deployment.

With our highly integrated design and manufacturing capability,  OPTICO can also provide customized products and solution to help customer for better opportunities. Our products are 100% tested at our factory to deliver optimal performance and reliability.

MTP Female To MTP Female Trunk Cable connectors have been engineered with the design and functionality to effectively meet the high bandwidth, high density, and flexibility demands of modern data centers. MTP connectivity system, elevate your data center network monitoring experience to a whole new level! This efficient connectivity solution will bring added convenience to your real-time monitoring, empowering the efficient operation of network management.

Corning/YOFC Fiber

All our MPO ferrules are Hakusan



Fiber counts can be customized

Various Fiber Counts and Types





Choose from 4, 8, 12, 24, or 48 fiber options, with both single-mode and multimode fiber types available. This flexibility allows for seamless integration into different network environments and applications.

Rapid Deployment, High Density, and High Reliability



The MTP Female to MTP Female Trunk Cable is designed for rapid deployment in high-density environments, such as data centers. Its reliable performance ensures seamless connectivity and minimizes network disruptions.

Extremely Low Insertion Loss and High Return Loss



The trunk cable offers excellent optical performance with extremely low insertion loss and high return loss, maximizing signal integrity and reducing transmission errors.

Telcordia GR-1435-CORE Issue 2 Compliant





The trunk cable complies with the Telcordia GR-1435-CORE Issue 2 standard, which guarantees high-quality and reliable performance.

8-core MTP/MPO branch fiber jumper realizes direct connection from 40G SR4 to 10G SR

12-core MTPMPO backbone jumper and 40G adapter panel realize 10G to 40G network upgrade

40G SR4 and 12-core MTPMPO trunk fiber jumper directly

IL/RL test

3D test

End surface test

OPTICO own a powerful team of engineers, production instruction drawings, logos, colors, connectors, number of cores, and other special requirements can be customized.

40G Trunk Cabling Solution

1. Core Cabling Solution:
a. Core Connection Equipment
Equip with a high-performance switch and a 40G BASE-SR4 QSFP+ 850nm 150m Optical Transceiver Module to achieve 40 Gb/s.

b. Fiber Connection Method
Use LC UPC to LC UPC Duplex OM5 Multimode Patch Cords or 12-Core MTP Patch Cords for equipment connections.

c. Fiber Cabling Management:
Implement 1U Fiber Patch Panel with 12 LC Duplex ODF and High-Density 1U Rack Mount Enclosure with a sliding drawer to organize cables, preventing clutter.

Alternatively, use a 12-Port MTP Panel with a similar rack mount enclosure.

2. Core to Access Connection
Use MTP OM4 12-Core Patch Cords to connect core and access points.

3. Access Cabling Solution
Identical to the core cabling solution.

Certificates



CE

CPR

ISO

RoHS



Full Ranges Of Reliability Tests From Third-party Lab



Coupling Test

Drop Test

Durability Test

High-Constant Temperature and Humidity Test

High-Low Temperature Test

Loss Test

Micro Cross Section Inspection Test

Resistant to Repeated Bending Test



Single Vertical Burning Test

Temperature Change Test

UV Test





Obviously, with the deployment of 40G/100G/200G/400G data center networks, high speed and high density have become a trend, and traditional LC cabling can no longer meet the demand. However, the MTP cabling scheme caters to this trend, paving the way for the construction of high-performance data center networks with its advantages of time-saving, space-saving, and cost-saving, as well as superior stability and high density. There is no doubt that MTP wiring solutions and MTP wiring components are the best choice for data interconnection and high-speed migration.
