Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of mpo fiber patch cord in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

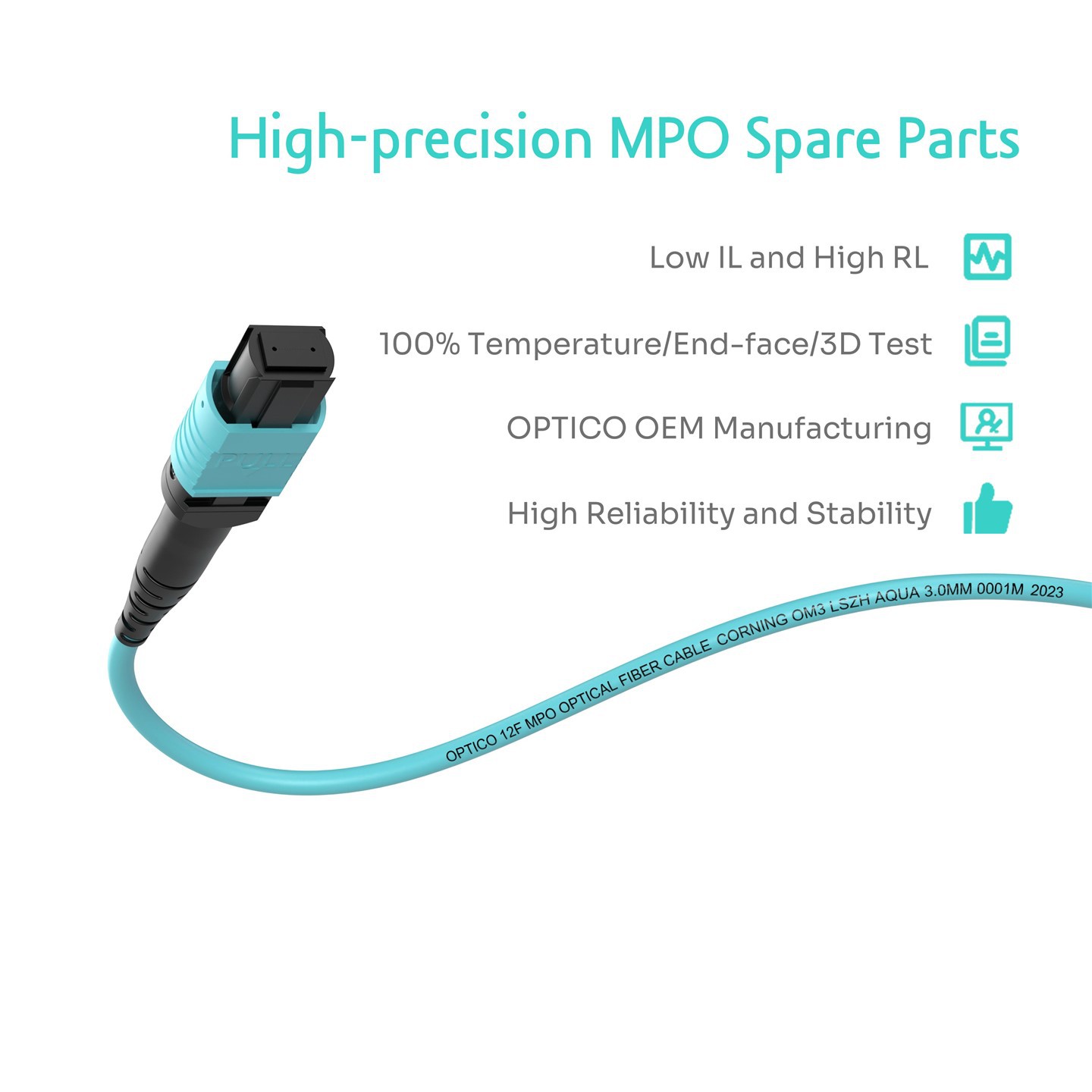

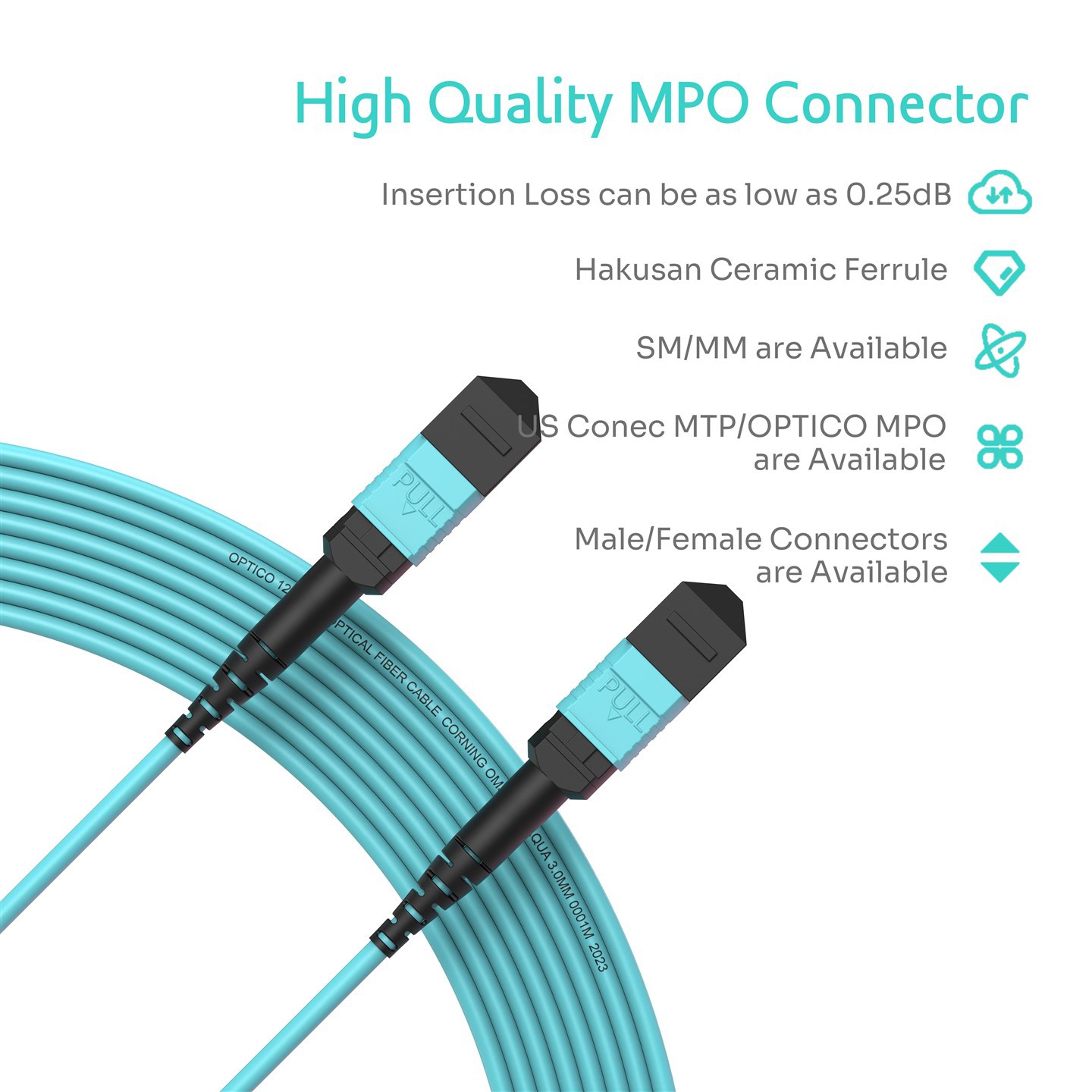

The MPO Fiber Patch Cord is a high-quality multi-fiber patch cord designed for efficient and reliable fiber connectivity. With options of 8/12/16/24 fiber counts, this MPO patch cord utilizes precision molded MT ferrules, metal guide pins, and precise housings to ensure optimal fiber alignment during mating.
MPO Fiber Patch Cord are either MPO to MPO no pins(female) or MPO to MPO with pins(male).
Number of fibers are 8, 12, 16 and 24, MPO 8, MPO 12, MTP 12, MPO 16, MTP 24, MPO 32, MPO 48.
Jacket materials include OFNP (Plenum), OFNR (riser) and Low Smoke Zero Halogen (LSZH) .
Micron size is 9/125, 62.5/125, 50/125, 10GB, 10/40GB and 40/100GB and mode is singlemode, multimode, OM3, OM4, OM5, and OS2. Custom lengths are available as well.
In addition to the MPO Fiber Patch Cord, OPTICO's product range includes various other fiber patch cords and cables tailored for different applications.
Product Specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | US Conec MTP Female/Male; MPO Female/Male | ||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Enhanced Efficiency
The MPO Fiber Patch Cord enables high-density fiber connectivity with maximum fiber count of 32, reducing cable clutter and optimizing space utilization in data centers and network environments.
Precise and Stable Fiber Alignment
The inclusion of metal guide pins ensure that the fibers are properly aligned to maintaini optimal physical contact. It also provides additional stability and support during the mating process, preventing any movement or misalignment that could result in signal loss or degradation.
Reliable Performance
The precise alignment of fibers and the use of high-quality components result in low insertion loss of 0.35dB, minimal signal degradation, and reliable transmission in high-speed network applications.
Easy Installation
The MPO patch cord's plug-and-play design facilitates quick and hassle-free installation, saving valuable time and effort during network setup or reconfiguration.
Corning/YOFC Fiber
All MPO ferrules are from Hakusan
High Stability And Reliability
High Density And Speed
Our Brand Confidence Comes From a Strong Production Team
Scenes of Applications
SFP transceiver connection
Data center
Networks interconnection
100% Tested Before Delivery
MPO IL RL Test
MPO Polarity Test
MPO End-surface Test
Temperature Test
Production Drawing
OPTICO own a powerful team of engineers, production instruction drawings, logos, colors, connectors, number of cores, and other special requirements can be customized.
Connectivity Solutions
40G to 4x 10G Interconnect
1. Core Cabling Solution:
a. Core Connection Equipment:
Utilize a high-performance switch paired with 40G BASE-SR4 QSFP+ 850nm 150m Optical Transceiver Module for 40 Gb/s connectivity.
b. Fiber Connection Method: Employ LC UPC to LC UPC Duplex OM5 Multimode Patch Cords or 12-Core MTP Patch Cords for equipment connections.
c. Fiber Cabling Management: Incorporate a 12×LC Duplex SM Fiber Adapter Panel and a High-Density 1U Rack Mount Enclosure with a sliding drawer to organize cables and reduce clutter.
Alternatively, use a 12-Port MTP Panel with a similar rack mount enclosure.
2. Core to Access Connection:
Connect core and access points using MTP OM4 12-Core Patch Cords.
3. Access Cabling Solution:
a. Core Connection Equipment: Include a high-performance switch with 10G SFP+ Optical Transceiver Module.
b. Fiber Connection Method: Use LC UPC to LC UPC Duplex Multimode Patch Cords or 12-Core MTP Patch Cords for equipment connections.
c. Fiber Cabling Management:
Implement 1U Fiber Patch Panel, 12 LC Duplex ODF along with a High-Density 1U Rack Mount Enclosure Unloaded with a Sliding Drawer to maintain organized cables.
Alternatively, use a 24F 2×12F MPO-6LC MPO Cassette, OM3, along with a High-Density 1U Rack Mount Enclosure Unloaded with a Sliding Drawer to maintain organized cables to avoid clutter.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Rich Warehousing and Fast Delivery
Delivery(7-15 Days)
How We Can Stand by You
Quick response within 24 hours
One-to-one consulting Service
Professional technical team support (RL can even reach 85dB/ Grade B connectors)
Super strict quality control (Real 1000 times plug experiment)
Huge production capacity
Never change prices arbitrarily
