Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 24f lc apc bundle fiber pigtail in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile
24F LC APC Bundle Fiber Pigtail is suitable for fiber connections in structured cabling systems.
Only one end of the optical fiber pigtail has a connector, and the other end is a broken end of an optical cable core, which is used for the connection between the optical cable terminal box and the equipment.
It is widely used in data centers, broadband CATV, PON (passive optical network), WDM/DWDM multiplexing systems, and FTTH (fiber to the home).
Compared with traditional fiber pigtails, bend-resistant fiber pigtails show lower signal attenuation when bent or twisted, reducing signal loss and failure rate caused by bending.
OPTICO offers a full range of OEM customized services, including fiber counts, fiber mode, types, fiber length, printing, color coding, etc., to meet the specific needs of different customers.
High quality fiber
CCTC ferrules
Grade B connectors
Production Specification
| Physical Properties | Parameter | |
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | |
| Fiber Mode | OS2 9/125um | |
| Connector Type | Connector A: LC/SC/FC/ST/LSZH UPC/APC Simplex | |
| Connector B: Unterminated | ||
| Fiber Grade | G657A1 | |
| Cable Jacket | Riser (OFNR)/LSZH/Plenum (OFNP) | |
| Jacket Colour | Yellow | |
| Cable Diameter(mm) | 0.9/2.0mm | |
| Minimum Bend Radius | 10mm | |
| Cable Type | Tight-Buffered | |
| Optical Properties | Parameter | |
| Insertion Loss(dB) | ≤0.3dB | |
| Return Loss(dB) | UPC≥50dB,APC≥60dB (LC/SC/ST/FC) UPC≥55dB,APC≥75dB (LSH) |
|
| Wavelength(nm) | 1310/1550nm | |
| Tensile Strength(N) | 10mm | |
| 10mm | ||
| Operating Temperature(°C) | -40 ~ +85 | |
| Storage Temperature(°C) | -20 ~ +70 | |
| Connector Durability | 1000 Times | |
| Standard | RoHS Compliant | |
| Attenuation at 1310nm | 0.36dB/km | |
| Attenuation at 1550nm | 0.22dB/km | |
| Vibration | ≤0.2dB | |
| Interchangeability | ≤0.2dB | |
Our Brand Confidence Comes From A Strong Production Team
100% Strictly Tested Before Delivery
IL RL Test
3D tested by Daisi
End surface test

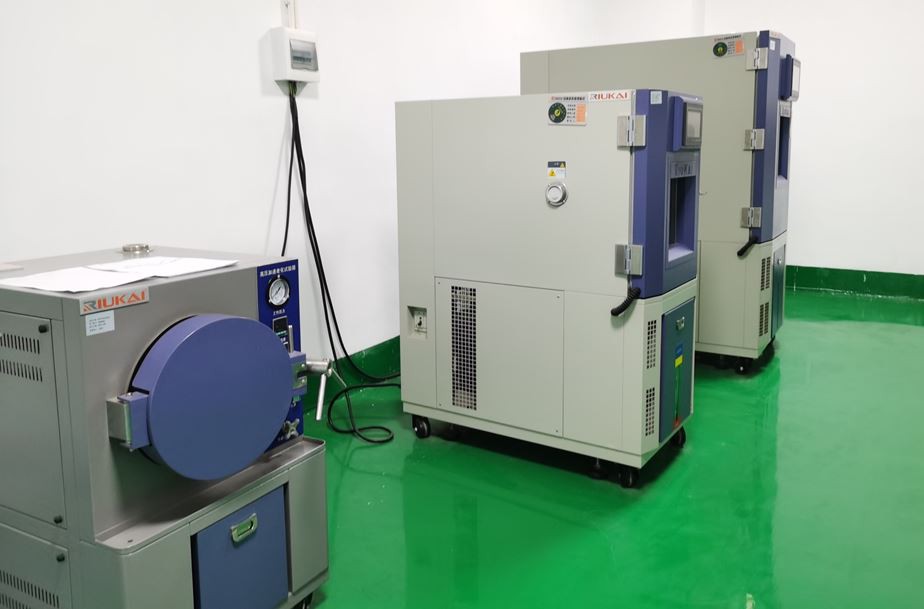

Temperature test
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
LANs
WANs
MANs
The mission will be achieved
OPTICO focuses on quality, has a strong R&D team and professional inter-system, through continuous integration of the optical communication industry supply chain, strengthen the quality control of the supply chain, and provide customers with high-quality products.
If interested,just let us know!
