Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 1m simplex lc om3 fiber optic pigtail multimode - 0.9mm pvc in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.

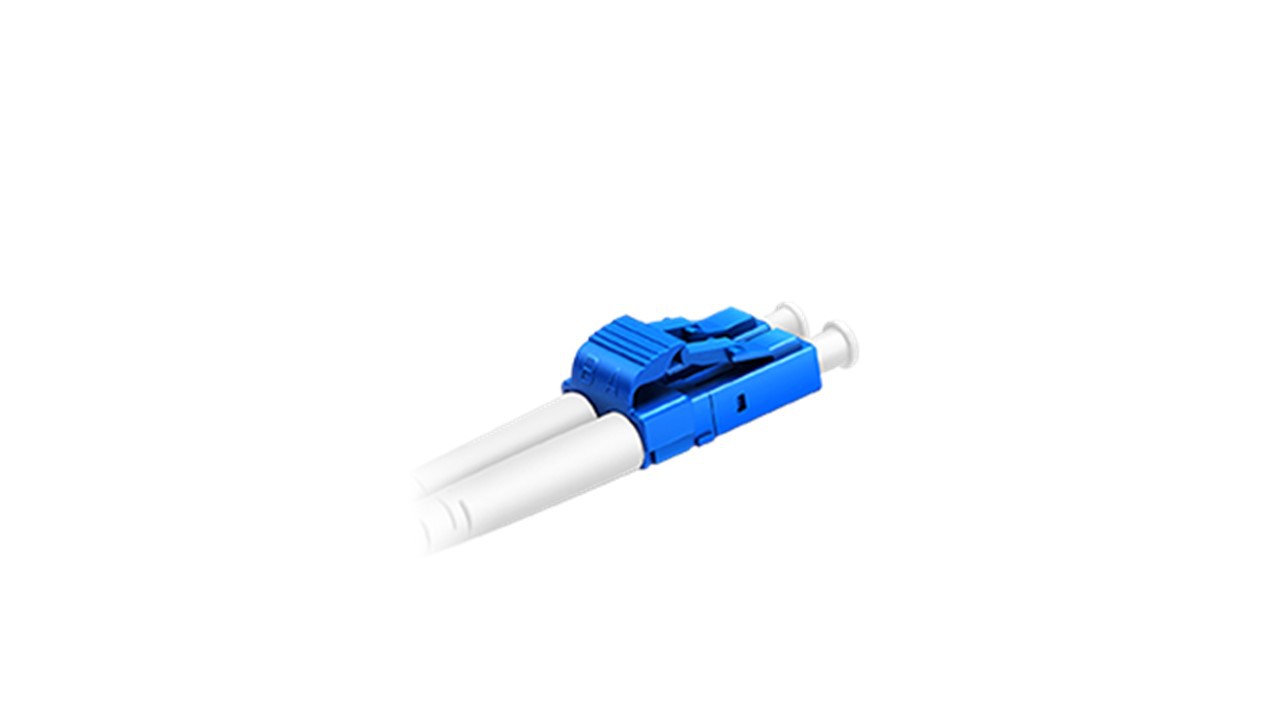

LC OM3 Fiber Optic Pigtail Multimode
Optico provides a full series of OEM services, such as different kinds of fiber connector, length, color, fiber grade, specification, material, package etc.
| Connector A | LC | Connector B | Unterminated |
| Fiber Mode | 50/125μm | Fiber Type | Simplex |
| Minimum Bend Radius | 7.5mm | Fiber Grade | Bend Insensitive |
| Polish | UPC | Cable Diameter | 0.9mm |
| Jacket Material | PVC | Jacket Color | Aqua |
| Wavelength | 850nm/1300nm | Durability | >1000 Times |
| Insertion Loss | ≤0.2dB | Interchangeability | ≤0.2dB |
| Return Loss | ≥20dB | Vibration | ≤0.2dB |
| Operating Temperature | -40~85°C | Storage Temperature | -45~85°C |
Corning/YOFC Fiber
CCTC Ceramic ferrule
High RL and Low IL
Our brand confidence comes from strong production team
Features
1.Price-Competitive
2.Low Insertion Loss & PDL
3.Factory-terminated and 100% optically Tested
4, High stability during high and low temperature cycling
Applications
CATV
LANs
WANs
Strictly tested before delivery

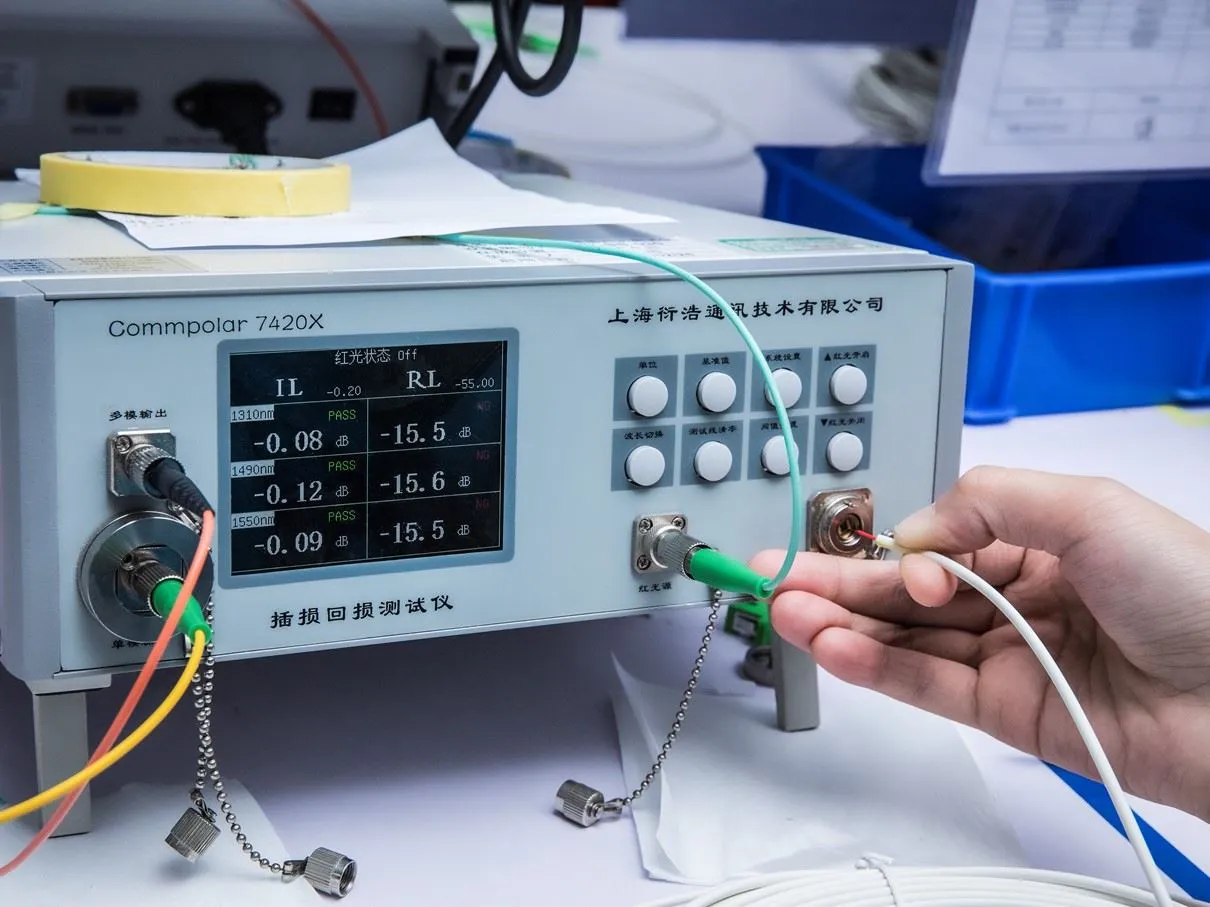

IL/RL test

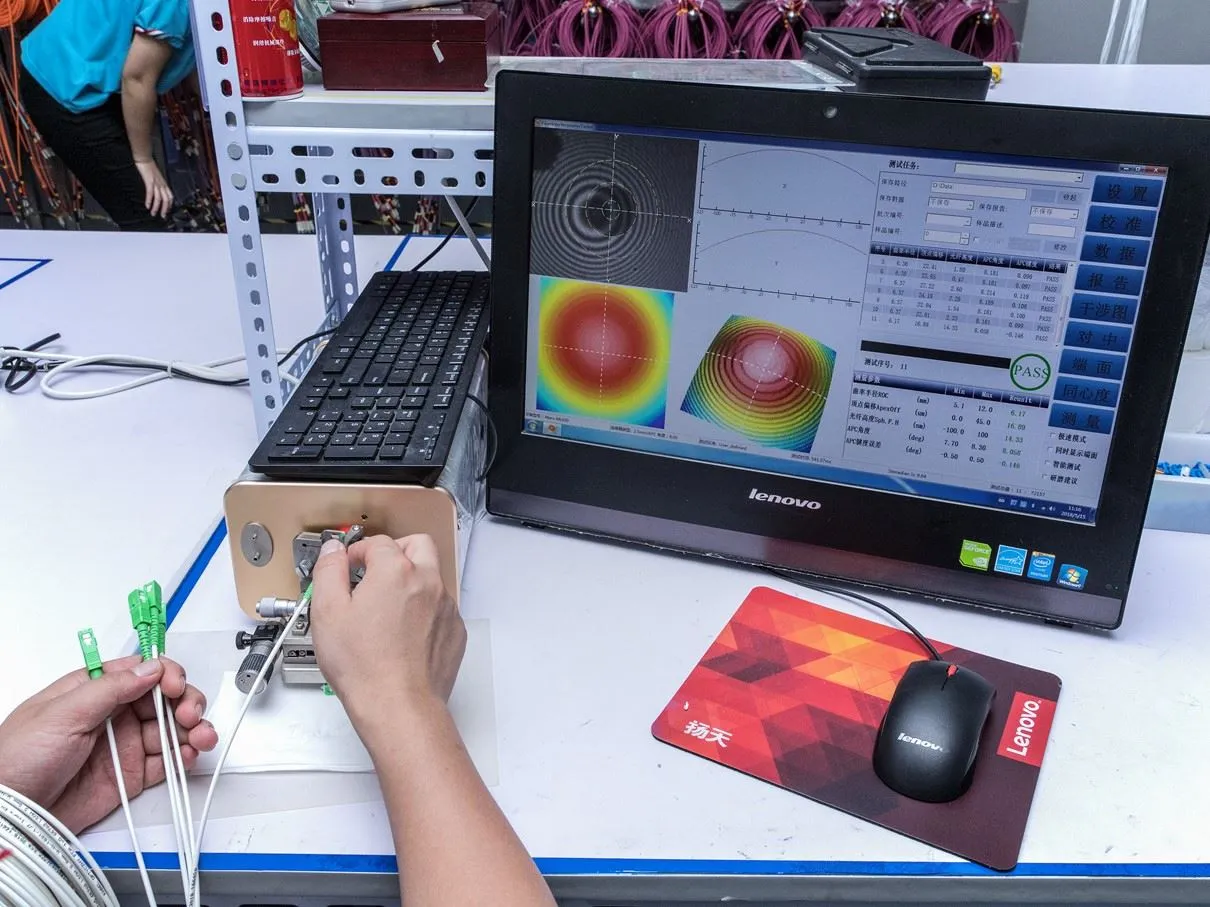

3D tested by Daisi
End surface test
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
7-15 DAYS
OPTICO isdedicated to providing customers with the outstanding, standards-compliant products and services.
We have passed many quality system verifications, like ISO9001 and RoHS and CE and CPR, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Hot Tags: 1m simplex lc om3 fiber optic pigtail multimode - 0.9mm pvc, China, manufacturers, suppliers, factory, wholesale, customized, FC Pigtail, 12 Colors LC Pigtail Set, 12F LC APC SM Bundle Pigtail, Bundle 12 Cores SMF Pigtail, LC Fiber Optic Pigtail, LC Pigtail
| Parameters |
SC,LC,FC,E2000 | ST,MU | MTRJ | ||||
| SM | MM | SM | MM | SM | MM | ||
| UPC | APC | UPC | UPC | UPC | UPC | UPC | |
| Work Wavelength (nm) | 1310,1490,1550 | 850,1300 | 1310,1490,1550 | 850,1300 | 1310,1490,1550 | 850,1300 | |
| Insertion Loss(dB) | ≤0.25 | ≤0.20 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability(dB) | ≤0.10 | ||||||
| interchangeability(dB) | ≤0.20 | ||||||
| Plug Testing(time) | ≥1000 | ||||||
| Tensile Strength(N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) | ||||||
| Durability(dB) | ≤0.20 | ||||||
| Operation Temperature(°C) | -40~+85 | ||||||
| Storage Termperature(°C) | -40~+85 | ||||||
| End Face Geometry(3D) | Radius of Curvature:5-12mm(APC); 10-25mm(PC) ;(LC/PC 7-25mm) Apex Offset: 0-50um; Fiber Height : -100 to +100nm; Angle: 0°±2°(PC);8°±3°(APC) |
||||||
