Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of fc fc fiber optic adapter in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Optico Communication Co., Ltd is one of the leading manufacturers of fiber optic networks components supplying FC FC Fiber Optic Adapter in Shenzhen, China. Established in 2000, we have made endeavor to fiber optic accessories for more than 18 years. Our products have successfully exported to more than 30 countries, and our main market are covering most of Europe and Oceania market. We are expecting to establish long-term and mutual-benefit business partnership with you.
Introduction:
FC type optical fiber connector: This connector was developed by Japan NTT. FC is the abbreviation of FERRULECONNECTOR, indicating that the external reinforcement method is to use a metal sleeve, and the fastening method is a screw buckle. At the beginning, FC type connectors used the butt ends of ceramic pins. This type of connector has a simple structure, convenient operation, and easy manufacture. However, the fiber end is sensitive to dust and is prone to Fresnel reflection, which improves the return. Wave loss performance is quite difficult. later. The improvement of this type of connector uses a spherical pin on the mating end, and the external structure has not changed, and it is improved by the increase of the return loss performance of the insertion loss.
It is a component used to realize optical signal splitting / combining, or used to extend optical fiber interconnection. It belongs to the field of optical passive components. It is used in telecommunication networks, cable networks, user loop systems, and regional networks. Fiber optic switches Divided into standard switches. Direct connection switch, star / tree switch, and wavelength multiplexer, the production method is sintering, the production method of sintering method is that two optical fibers are melted and drawn together to polymerize the core Together, to achieve the optical coupling effect, and one of the important production equipment is the fiber fusion splicer, which is also an important step. Although some of the important steps are on the machine at the same time, after sintering, people still need to work to detect the package, so the labor cost accounts for About 10 ~ 15%, and the manual detection of packaging must ensure the consistency of quality, which must be overcome during mass production, but the technical difficulty is not as high as that of DWDM modules and optical active components. The structure of the fiber optic adapter is divided into: 1, the fiber optic adapter panel. 2. Curved radius control clip 3. Front panel accessories. 4. Plug and jack. 5. Bracket. 6. The trunk or interconnecting optical cable entry hole.
Product Specifications:
Insertion Loss | <=0.25dB |
Return Loss | >=60dB |
Durability | <=0.20dB typical change, 1000 matings |
Operating Temperature | -40℃ to +85℃ |
Ferrule Hole Sizes | 125.0+1/-0μm, Concentricity: <=0.5μm |
| 125.5+1/-0μm, Concentricity: <=0.5μm | |
| 126.0+1/-0μm, Concentricity: <=0.5μm |
Applications:
Telecommunication networks
Local Area Networks (LANs)
Wide Area Networks (WANS)
Data processing networks
Test equipment
Active device termination
Premise installations
FEATURES:
Low insertion loss and high return loss
NTT-FC Compatibility
Compact design
Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
High precision alignment
Nickel plate brass body
Free-floating ceramic ferrule
Precision anti-rotation key and corrosion resistant body

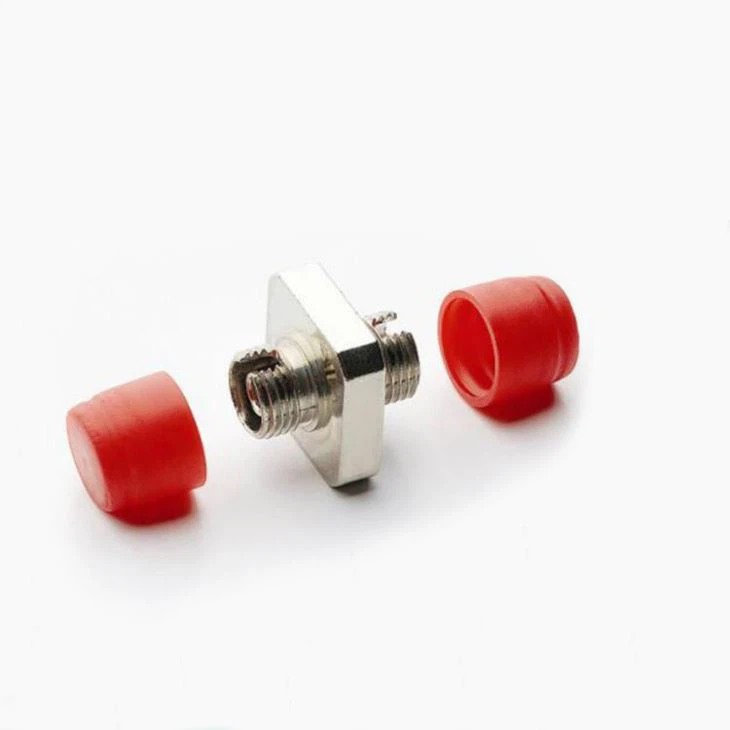

The FC adapter is made of metal and is generally used on the ODF side. The metal adapter can be inserted and removed more times than plastic. FC connectors are generally used in telecommunication networks, and a screw cap is screwed onto the adapter. The advantages are reliable, dust-proof, and the disadvantage is that the installation time is slightly longer, and the clamping is tight.
Product Ordering Options:

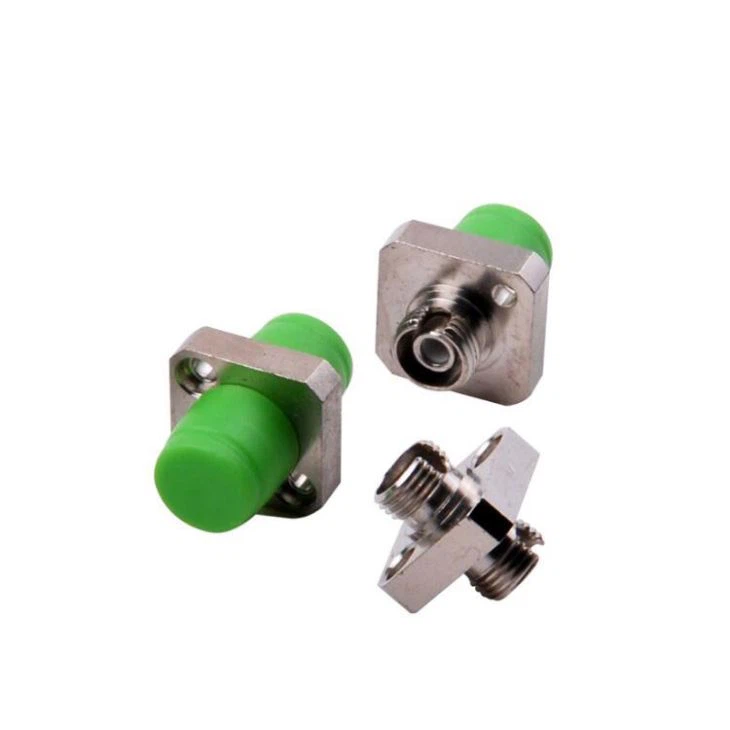

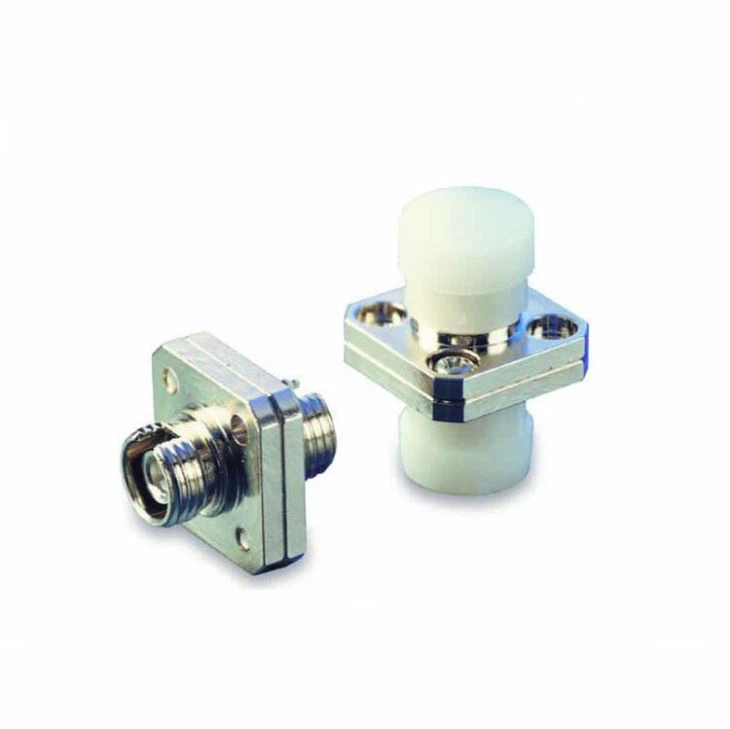

Housing Shape | Housing Composition | Sleeve Material |
Square | One-piece | Zirconia |
Round (D-shape) | Two-piece | PB |
Certifications:
Factory Workshop:
