Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 4 core g657a outdoor fiber optic ftth drop cable in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.

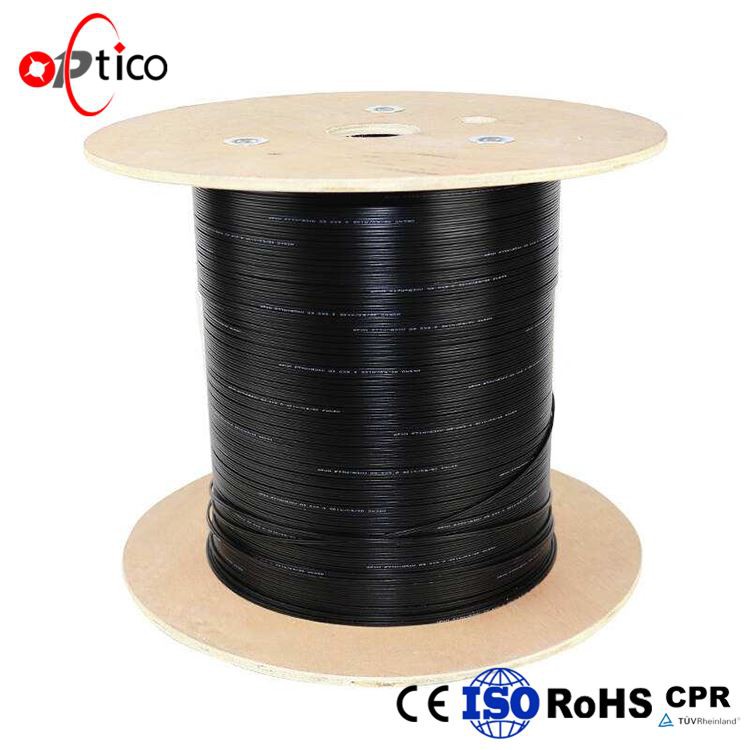

4 Core G657A Outdoor Fiber Optic FTTH Drop Cable
Most of the fiber optic drop cables are single-core and double-core structures, and can also be made into a four-core structure and above. The cross-section is an eight-shaped structure. The reinforcement is located in the center of the two circles. The metal or non-metallic structure can be used. . G.657 small bending radius optical fiber is used for the optical fiber in the sheathed cable, which can be laid with a bending radius of 20mm, which is suitable for entering the house in the way of the pipeline or the bum line.
 |
 |
Place of Origin: Shenzhen, China
Brand Name:OPTICO
Model Number: OP-FTTH-CABLE-4F
Product name: Outdoor FTTH drop cable
Fiber core: 4 Cores
Cable sheath: LSZH
Fiber type: G652D, G657A1 or G657A2
Certification: ISO9001:2015
Packing length: 2km per drum
Application: FTTH project, indoor wiring
Color: black
Name: FTTH drop cable
Supply Ability: 1000 Kilometer/Kilometers per Week
Packing material: Wooden roll
Packing length: 2km / roll.
Port: shenzhen
Features
Good mechanical and enviromental characteristic
Anti-UV characteristics meet the requirements of relevant standards
The mechanical characteristics meet the requirements of relevant standards
Soft ,flexible ,easy to lay and splice,and with big capacity data transmission
Special bending-resistant optical fiber, providing greater bandwidth and enhancing network transmission performance;
Two parallel FRP or metal reinforcements make the optical cable have good pressure resistance and protect the optical fiber;
The optical cable has simple structure, light weight and strong practicability;
Unique groove design, easy to peel, easy to connect, simplify installation and maintenance;
Low-smoke halogen-free flame-retardant polyethylene sheath or flame-retardant PVC sheath, environmental protection.
It can be matched with a variety of on-site connectors and can be completed on-site.
Because of its softness and lightness, the sheathed cable is widely used in the access network; the scientific name of the sheathed cable is that the access network uses a butterfly to introduce the optical cable; because its shape is a butterfly shape; Figure 8 fiber optic cable.
Applications
Used for indoor wiring, end users directly use cables;
Used for building optical fiber cables;
For indoor wiring of users in FTTH.
Specifications
Cable construction details
|
Number of fiber |
1~24core |
|
|
strength member |
Material |
Galvanized steel wire/FRP/KFRP |
|
diameter |
2*(0.5~0.8)mm |
|
|
Self support Messenger wire |
Material |
Galvanized steel wire |
|
diameter |
1.0mm |
|
|
Outer sheath |
material |
LSZH |
|
diameter |
1.8±0.2mm |
|
|
Cable size (Height * width) |
2.0(±0.1) mm × 5.2(±0.2)mm |
|
|
Cable sheath thickness |
Max. 0.8mm/Min. 0.4mm |
|
|
Messenger sheath thickness |
0.5~0.7mm |
|
|
Cable weight |
1~2core |
18.2KG |
|
4~6core |
18.5KG |
|
|
8~24core |
54.0KG |
Cable Mechanical characteristics
|
Items |
Description |
|
|
Installation Temperature range(℃) |
40 |
|
|
Operation and transport temperature(℃) |
30 |
|
|
Min Bending Radius(mm) |
Long term |
15D |
|
Min Bending |
Short term |
30D |
|
Radius(mm) |
||
|
Min allowable |
Long term |
300 |
|
Tensile Strength(N) |
||
|
Min allowable |
Short term |
600 |
|
Tensile Strength(N) |
||
|
Crush Load (N/100mm) |
Long term |
1000 |
|
Crush Load (N/100mm) |
short term |
2200 |
Certification
Factory Workshop
Construction Method
In the FTTX project, large-scale use of covered optical fiber cables mainly uses two connection methods: one is cold connection technology (physical connection) based on cold connectors, and the other is hot fusion technology using fusion splicers as tools.
Cold connection technology
Cold splicing technology: The optical fiber cold splice is used when two pigtails are connected. The main component inside it is a precision v-shaped groove. After the two pigtails are pulled, the cold splice is used to realize the connection of the two pigtails. It is simpler and faster to operate, saving time than welding with a welding machine.
On the surface, the cold splicing operation is simple and fast, which saves time compared to the hot welding of the splicer. However, the cold splicing technology is also mainly used in emergency applications after the communication of the optical cable is interrupted.
Hot melt technology
1. Small welding loss. The two optical fibers adopt hot-melt technology, and the fusion is carried out according to the trunk standard, which greatly reduces the fusion loss.
2. Long service life and low maintenance cost. Since the hot-melt standard is required according to the construction of the main line, the life of the general welding point will be similar to that of the ordinary optical cable, and there is no problem of the life of a single point.
