Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of lc uniboot connector with rod in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

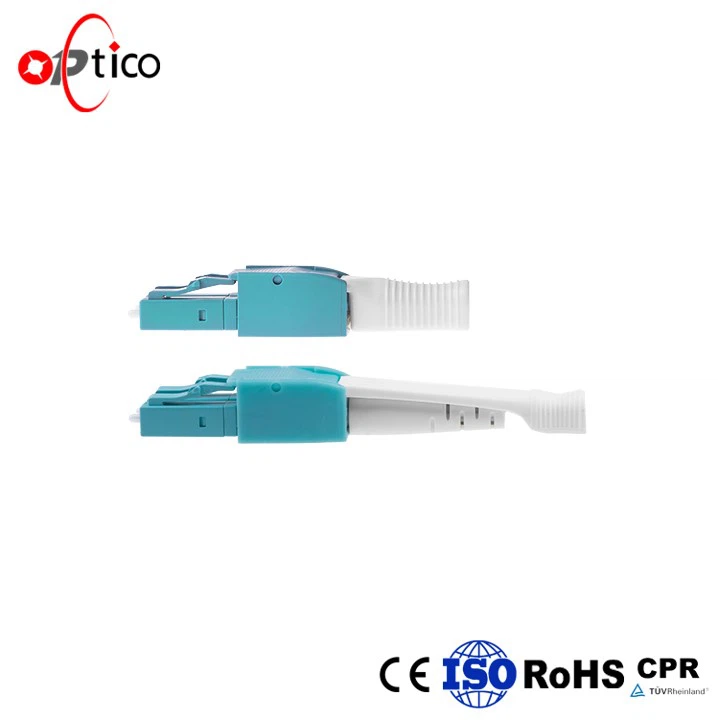

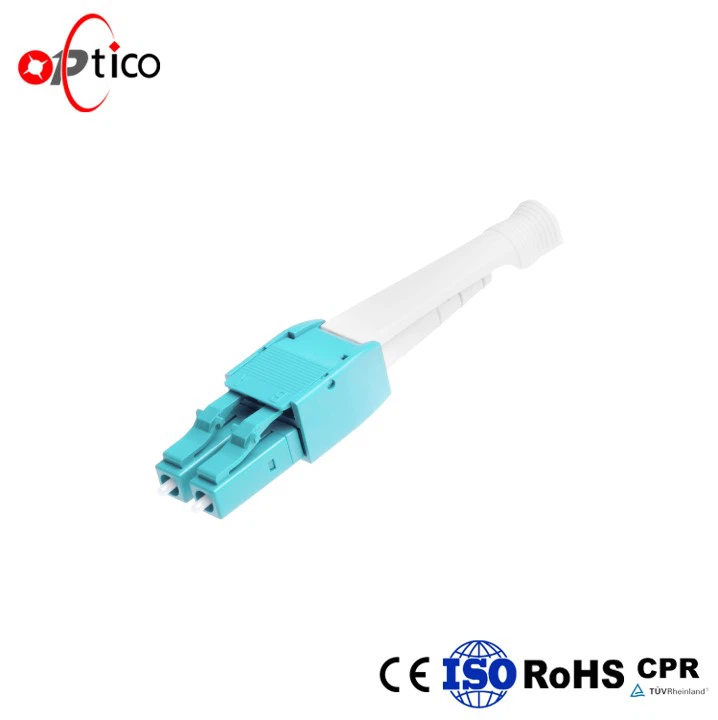

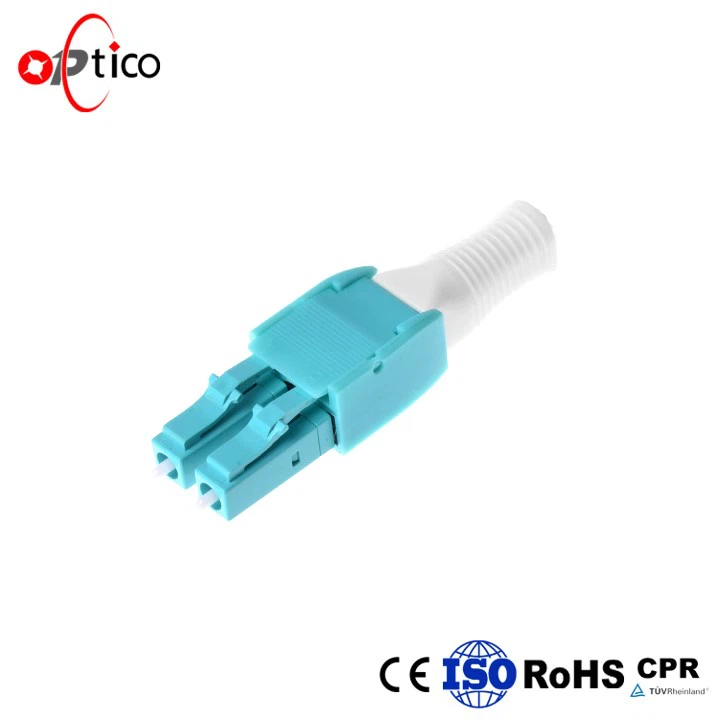

A uniboot connector with a tie rod that can be used in a high-density assembly environment. Compared with the traditional duplex connector, the product has a more compact design and uses a single-tube dual-core cable.
The LC uniboot connector with rod is a revolutionary innovation in fiber optic connectivity by OPTICO. It is designed to simplify cable management, reduce installation time, and enhance network performance. Our uniboot connector is made of high-quality materials and has undergone strict testing to ensure its durability and performance.
Product Features
Compact and Space-Saving: LC Uniboot Connector uses a single-tube dual-core cable that reduces the number of fibers by half, thus to effectively improve the flow of hot air in a high-density crowded environment, and enable more reasonable utilization of energy efficiency.
A Push-pull Tab Design
Easy Installation and Maintainence : With a professional pull rod design, the LC Uniboot Connector is easy to unlock in high density environment.

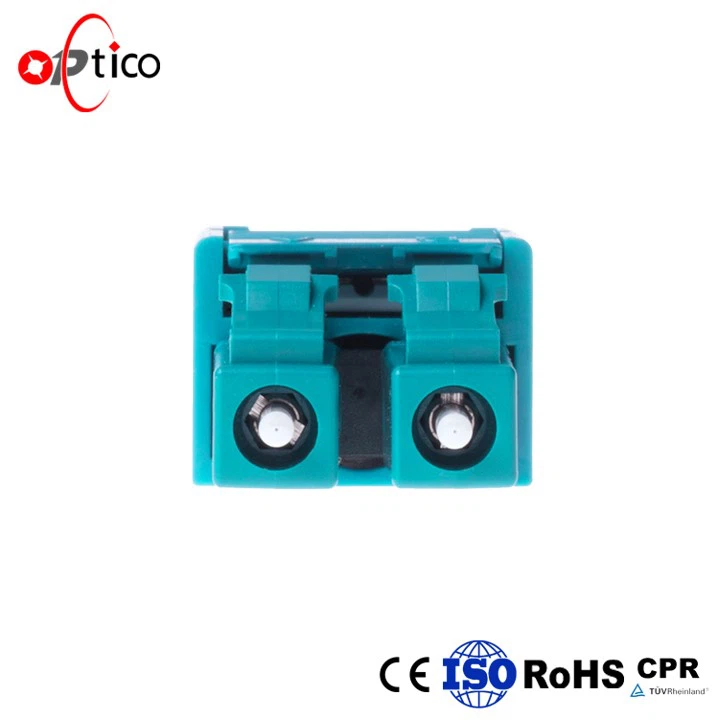

Easy Polarity Revisable: The connector innovatively sets the two plugs of the optical fiber connector into a mutually interchangeable design, which helps users easily reverse the polarity of the optical fiber, and can easily open the ferrule and switch the polarity without any tools.
Safety and Stability
Personalized Customization
Applications
Telecommunications network
CATV network
Corporate network
Optical Communication Center
Certificates
Hot Tags: lc uniboot connector with rod, China, manufacturers, suppliers, factory, wholesale, customized, LC UPC Fiber Connectors, LC Duplex Fiber Optic Connector, Networks LC Fiber Optic Connectors, LC Safety Belt Lock Connector, LC APC Fiber Connectors, LC Uniboot Connector With Rod
| Insertion Loss | <=0.20dB(APC), <=0.30dB(PC) |
| Return Loss | >=60dB(APC), >=50dB(PC) |
| Durability | <=0.20dB typical change, 1000 matings |
| Operating Temperature | -40℃ to +85℃ |
| Ferrule Hole Sizes | 125.0+1/-0μm, Concentricity: <=0.5μm |
| 125.5+1/-0μm, Concentricity: <=0.5μm | |
| 126.0+1/-0μm, Concentricity: <=0.5μm |
