Product profile

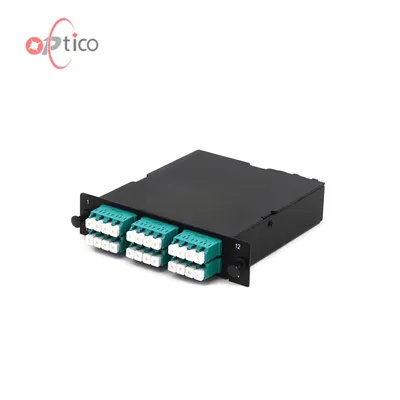

OPTICO proudly presents the 24F 2×12F MPO-6LC MPO Cassette, OM5, Quad LC, a versatile solution designed to simplify transitions between MPO and LC discrete connectors. This innovative cassette module combines the power of 6 LC single-mode/Multimode quad adapters at the front with 2 MPO adapters at the rear, delivering unparalleled flexibility for your network infrastructure needs. It excels in high-density backplane and data center cabling, offering substantial benefits in terms of on-site installation efficiency and space optimization.
Product specifications
| Item | Parameter of 12F SM MPO-SC Fan-out Patchcord |
| Fiber Count | 24 Cores |
| Fiber Mode | OM5 |
| Fiber Brand | Corning/YOFC/Customizable |
| Connector A (Rear Side) | 2 pcs of 12F MTP/MPO SM Connector |
| Connector B (Back Side) | 24 pcs of LC/SC/FC/Others |
| Polish Type | APC/UPC |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow/Customizable |
| Cable Diameter(mm) | 0.9 |
| Optical Property | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | APC | UPC | |
| ≥60 | ≥50 | ||
| Wavelength(nm) | 850/1300 | ||
| Operating Temperature(℃) | -40 ~ +85 | ||
| Storage Temperature(℃) | -20 ~ +70 | ||
Product features
Abundant Fiber Capacity: With an impressive 24-fiber capacity, the 24F 2×12F MPO-6LC MPO Cassette, OM5, Quad LC, ensures an extensive range of connectivity options, catering to diverse network requirements.
Compact and Modular Design: Engineered with a compact and modular form factor, this MPO fiber cassette module is a perfect fit for high-density environments with limited space. It empowers you to deploy up to 12 LC duplex fiber port pairs within a single module efficiently.
Broad Compatibility: Following the classic MPO to LC cassette format, this module effortlessly interfaces with the majority of existing MPO wiring systems available in the market.
Performance Assurance: Rigorous testing, including 3D testing, temperature testing, and loss testing conducted prior to delivery, guarantees exceptional signal quality, characterized by low insertion loss and high return loss of the fiber cassette. This assurance translates to optimal network performance.
Effortless Installation: The 24F 2×12F MPO-6LC MPO Cassette, OM5, Quad LC, conveniently mounts on 1U, 2U, 3U, or 4U 19-inch fiber patch panels or enclosures.
applications
High Density Data Center
Telecommunication Network
SAN(Storage Area Network)
delivery(7-15 days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
