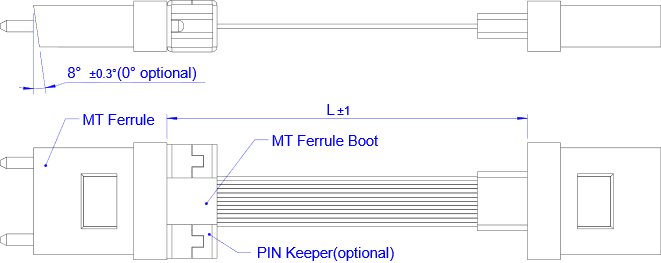

MT MT Jumper

MT MT Jumper

MT MT Fanout Patch Cord OPTICO develop Active Optical Cables Jumpers for optical transceiver module package,such as 40G QSFP+SR4,100G-SR4 eg. It fit for different installation environment and easy to install between adapters and laser chip.Our connectors are 100% factory tested and can meet your...
Send Inquiry

Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of mt mt jumper in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.



MT MT Ribbon Patch Cord



With the large number of high-speed optical module applications,OPTICO develop MT-MT Jumpers for optical transceiver module package,such as 40G QSFP+,100G-SR4,QSFP28 SR4 eg.It fit for different installation environment and easy to install between adapters and laser chip.Our connectors are 100% factory tested and can meet your special requirements.All the MTP/MPO connector compliance with Telcordia GR-1435-Core Compliant.

Parameters Unit                                     Specifications
Test wavelength nm MM 850/1300
SM 1310/1550
Fiber type / G657A2/G657B3/OM4/OM4/OM5



Insertion Loss



           dB

MT Standard Loss <=0.70
LC/FA Low Loss <=0.35



Return Loss



          dB

MM >=25
SM >=50(PC);>=60(APC)
Operating Temperature                                              -10~70
Storage Temperature                                             -40~+85



Our brand confidence comes from a strong production team










MTP, MPO available

8/12/24/16/32F Fiber

SM, OM3/OM4/OM5 available
0.35dB low loss connector



Pulling eyes are provided as an option to protect the cable & connector during installation
Migration for 10G/40G/100G/200G/100G
TIA/IEC standards compliant
Comply with RoHS/REACH requirement



Scenes of applications



product-180-132



Data center

product-180-132

Telecommunication Networks

product-180-132

CATV Networks

product-180-135

LAN/WAN



Certificates



CE-Patchcord

CE

CPR

CPR

ISO

ISO

RoHS-Patchcord-PLC

RoHS



Full Ranges Of Reliability Tests From Third-party Lab



Coupling Test

Coupling Test

Drop Test

Drop Test

Durability Test

Durability Test

High-Constant Temperature and Humidity Test

High-Constant Temperature and Humidity Test

High-Low Temperature Test

High-Low Temperature Test

Loss Test

Loss Test

Micro Cross Section Inspection Test

Micro Cross Section Inspection Test

Resistant to Repeated Bending Test

Resistant to Repeated Bending Test



Single Vertical Burning Test

Single Vertical Burning Test

Temperature Change Test

Temperature Change Test

UV Test

UV Test







Other types MT Jumper Series can be customized

1.MT-MT Jumper

2.Mini MT-MT Jumper

3.Mini MT-Mini MT Jumper

4.MT-2x Mini MT Jumper

5.MT-4xMini MT Jumper

6.MT-V groove FA Jumper

7.MT-OE Jumper

7-15 Days



product-850-284



How we can stand by you



Quick response within 24 hours

One-to-one consulting Service

Professional technical team support (RL can even reach 85dB/ Grade B connectors)

Super strict quality control (Real 1000 times plug experiment)

Huge production capacity

Never change prices arbitrarily
