Product Profile

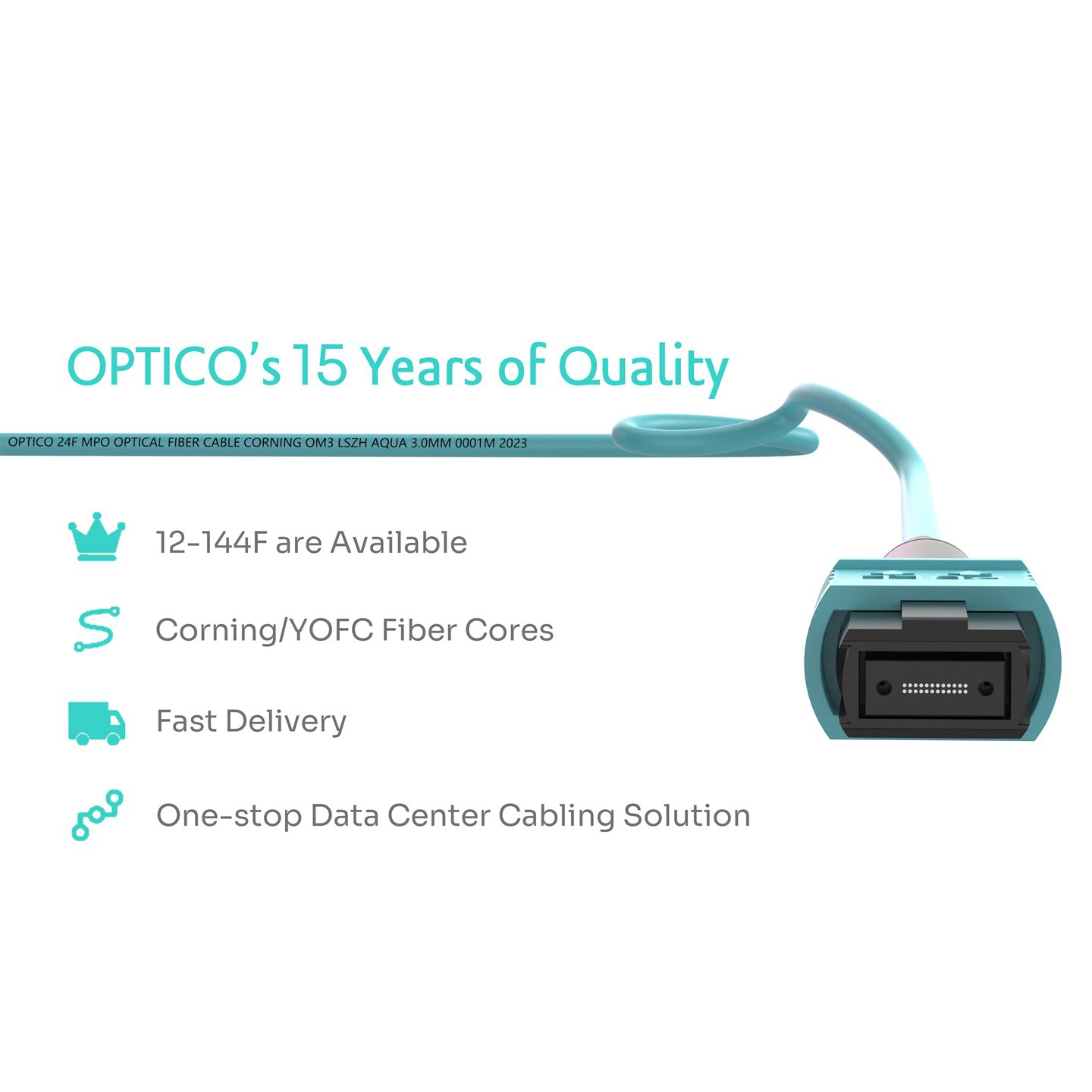

The 24F MPO Male to MPO Female Trunk Cable OM3 is a high-performance optical fiber solution tailored for data centers and networking environments that demand superior bandwidth and reliability. With its advanced features and robust design, this cable is engineered to meet the challenges of modern high-speed data transmission.
According to the international standard IEC 61300-3-35, the MPO trunk cable connectors undergo strict end-face inspection and 3D Sumix inspection to ensure the clearance of end faces.
Detection can effectively reduce signal loss or delay of the MPO trunk cable, ensuring smooth data transmission and network reliability.
Product specifications
| Physical Properties | Parameter |
| Fiber Count | 24 Fibers |
| Fiber Mode |
OM3 |
| Connector Type | MPO Male; MPO Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Space and Cost Efficiency
With the ability to achieve up to 24 times the density of SC connectors, the 24F MPO Male To MPO Female Trunk Cable OM3 significantly saves space and reduces costs.
Rapid Deployment, High Density, and High Reliability
The MPO trunk cable is factory pre-terminated and integrated push-pull tubing to streamline installation, saving time and effort in cable management.
Its reliable performance ensures seamless connectivity and minimizes network disruptions.
Extremely Low Insertion Loss and High Return Loss
OPTICO provides the flexibility to choose from three different insertion loss levels for customers to optimize performance based on their specific network requirements.
24 Fiber MTP trunk cable offers excellent optical performance with extremely low insertion loss and high return loss, maximizing signal integrity and reducing transmission errors.
Excellent Signal Quality
With low dispersion and high-quality glass fibers, this 24F MPO Male To MPO Female Trunk Cable OM3 supports high-speed data rates and minimizes signal distortions, resulting in clear and consistent signal quality.
applications
High Density Data Center
Backbone Network
Optical Module Connection
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
delivery(7-15 days)
