Product Profile

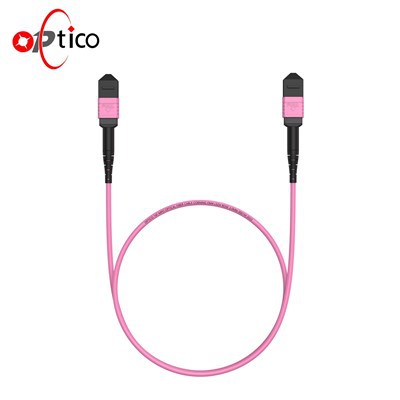

The 24F MPO Male To MPO Female Trunk Cable OM4 stands as a premier optical fiber solution, excelling in today's data-driven landscapes, including data centers, telecommunications networks, and enterprise setups. Crafted with precision and innovation, this high-performance fiber optic cable ensures seamless, high-speed data transmission.
Featuring MPO connectors on both ends and 24 fibers in total, the MPO trunk cable utilizes OM4 fiber for high bandwidth and low attenuation, making it ideal for high-speed applications.
Easy to install and maintain, the MPO trunk cable is a versatile choice for diverse network environments, data centers, telecom, and enterprise networks.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 24 Fibers |
| Fiber Mode |
OM4 |
| Connector Type | MPO Male; MPO Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Rose |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
With a capacity of 24 optical fibers, the 24F MPO-MPO Female Trunk Cable OM4 offers an extensive array of connectivity options, ensuring your network remains flexible and scalable. This high fiber count accommodates the growing demands of high-density networks, providing a robust foundation for efficient data transmission.
This 24-fiber MPO trunk cable optimizes cable management by offering more fibers in a compact form factor. By reducing physical clutter and enhancing airflow within data centers and network racks, it not only ensures efficient organization but also contributes to the overall cooling and performance of critical network infrastructure.
Factory pre-terminated and equipped with integrated push-pull tubing, the cable streamlines the installation process, saving precious time and effort in cable management. This plug-and-play design enhances the overall efficiency of network installations.
Designed for direct attach or structured cabling capability, supporting 100GBASE-SR10 applications and CXP or MXP optics requiring 24 fiber M
Applications
High Density Data Center
Backbone Network
Optical Module Connection
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
10G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Utilize a high-performance switch with an SFP-10G-SR 850nm 150m Optical Transceiver Module.
b. Fiber Connection Method
Connect equipment using LC UPC to LC UPC Duplex OM4 Multimode Patch Cord.
c. Fiber Cabling Management:
Incorporate a 24 Core MPO Module Cassette, and utilize a 1U high-density fiber enclosure. This setup optimizes fiber management and minimizes cable clutter.
2. Core to Access Connection
Employ a 24F MPO-MPO Female Trunk Cable OM3 for the core-to-access connections.
3. Access Cabling Solution
This follows the same specifications as the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
After-sales Services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via:
Phone: +86-755-33532578
Email: sales@fiberopticom.com
WhatsApp: 8619129420326
FAQ
Q: Is the installation process of this trunk cable complex?
Q: What is your minimum quantity?
Q: What is your main products?
Q: Is the cable suitable for telecommunications networks?
