Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 12 core mtp 10g om4 backbone patch cord plenum in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.

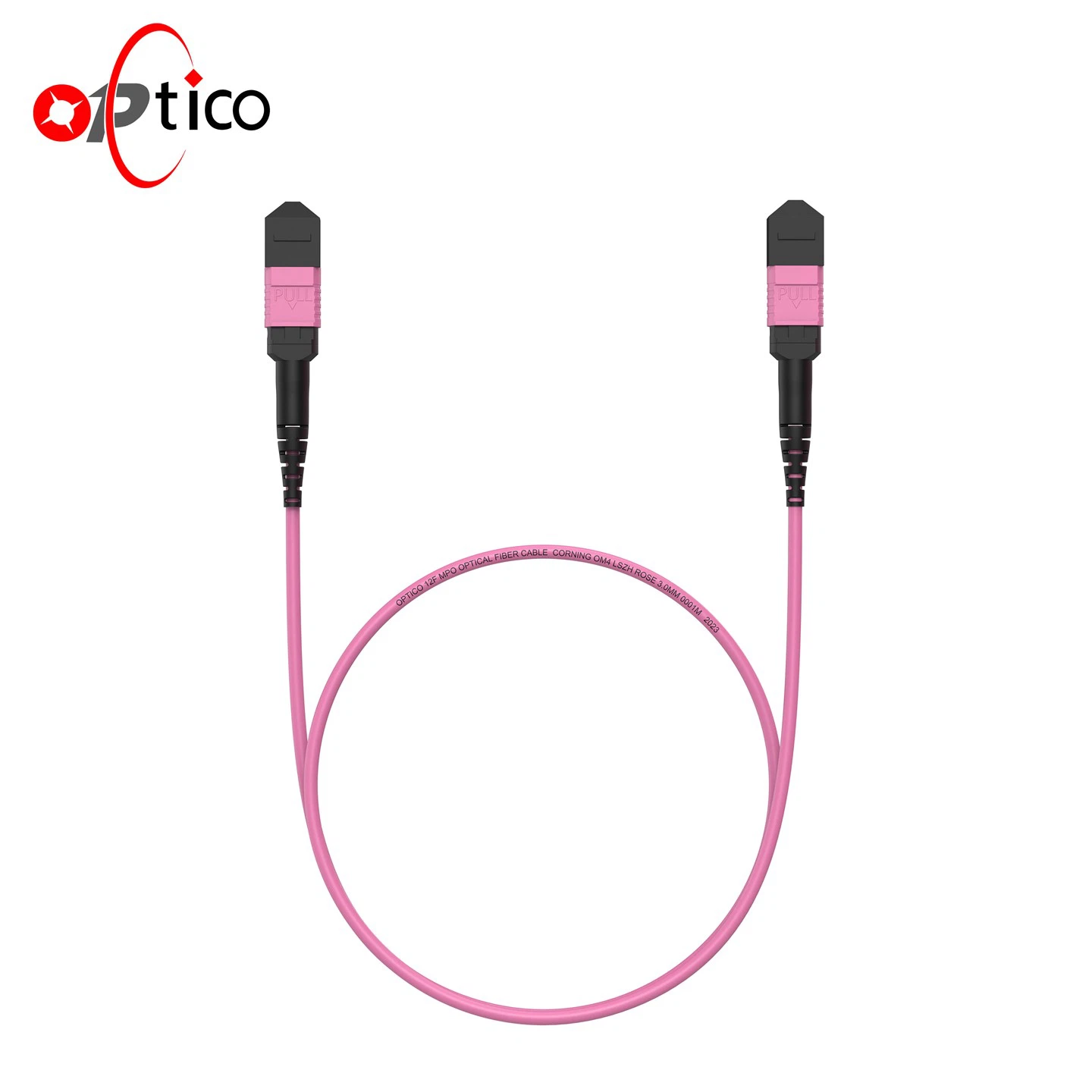

12 Core MTP 10G OM4 Backone Patch Cord Plenum
12 Core MTP 10G OM4 Backbone Patch Cord Plenum Use Fibre Channel for termination to meet 40G/100G Ethernet and support high-bandwidth applications.
OPTICO uses US Conec MTP connectors and Corning Clearcurve fiber cores to fully upgrade the quality of 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optical module direct connection solutions and applications in high-density data centers.
12 Core MTP 10G OM4 Backbone Patch Cord Plenum is available in different fiber types, including OS2, OM3, and OM4.
With comprehensive fiber cabling options ranging from 8-core to 144-core, 12 Core MTP 10G OM4 Backbone Patch Cord Plenum allows users to choose the most suitable option based on their specific needs.
Product Specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | US Conec MTP Female/Male; MPO Female/Male | ||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Various Fiber Counts and Types
Choose from 4, 8, 12, 24, or 48 fiber options, with both single-mode and multimode fiber types available. This flexibility of 24 Fiber MPO/MTP Patch Cord allows for seamless integration into different network environments and applications.
Rapid Deployment, High Density, and High Reliability
The MTP Female to MTP Female Trunk Cable is designed for rapid deployment in high-density environments, such as data centers. Its reliable performance ensures seamless connectivity and minimizes network disruptions.

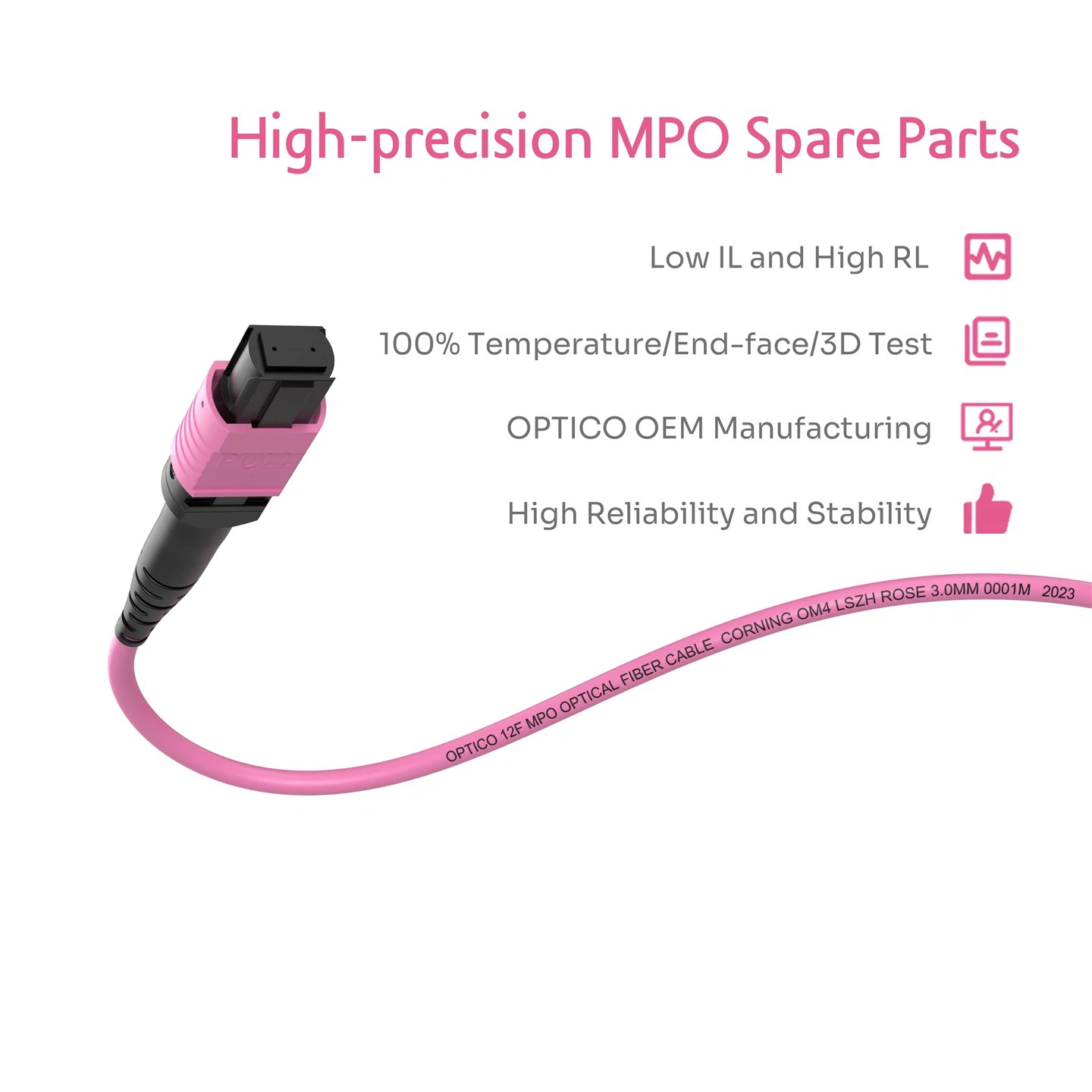

Extremely Low Insertion Loss and High Return Loss
24 Fiber MPO/MTP Patch Cord offers excellent optical performance with extremely low insertion loss and high return loss, maximizing signal integrity and reducing transmission errors.
Telcordia GR-1435-CORE Issue 2 Compliant
The trunk cable complies with the Telcordia GR-1435-CORE Issue 2 standard, which guarantees high-quality and reliable performance.
Corning fiber
All our MPO ferrules are from HAKUSAN
Plenum Material
Insensitive to bending
Our brand confidence comes from a strong production team
Applications
SAN Data center local area networks
Rising 40G&100G agreement
LAN/Transceiver device
100% tested before delivery
IL/RL test
3D test
Polarity Test
End-surface test
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
25G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment: Use a high-performance switch with 25G SFP28 Optical Transceiver Module to send and receive signals, the data transmission rate can reach speeds of 25.78 Gb/s.
b. Fiber Connection Method: Connect equipment with LC UPC to LC UPC Duplex OM4 Multimode Patch Cord or MTP Patch Cord 12 Cores.
c. Fiber Cabling Management:
Utilize MTP-12 Cassette (12 Fibers OM4 Multimode, MTP to 6 x LC Duplex) and a High-Density 1U Rack Mount Enclosure with a sliding drawer for cable organization.
Alternatively, use 24F 2×12F MPO-6LC MPO Cassette OM3, Quad LC in the same 1U Rack Mount Enclosure.
2. Core to Access Connection
Use 12F MTP MPO Fiber Cable for core-to-access connections.
3. Access Cabling Solution
This mirrors the specifications of the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Purchase Guide
The polarity
| 1 | A |
| 2 | B |
| 3 | C |
Male or Female
The color
The diameter of the cable
| 1 | 3.0mm |
| 2 | 3.5mm |
| 3 | 4.3mm |
The length
| 1 | 1m |
| 2 | 2m |
| 3 | 3m |
| 4 | ... |
| 5 | Custom |
How can we stand by you
Quick response within 24 hours
One-to-one consulting Service
Professional technical team support
Super strict quality control (Real 1000 times plug experiment)
Huge production capacity
Never change prices arbitrarily
The 3D interferometer can verify the MTP / MPO end face grinding process, and can ensure that all parameters of the grinding MT (mechanical butt transmission) ferrule meet and exceed the industry standard before shipment.
The end-face microscope inspection and IL and RL inspection will ensure that fast OPTICO provides reliable high-performance 12 Core MTP 10G OM4 Backbone Patch Cord Plenum.
