Product Profile

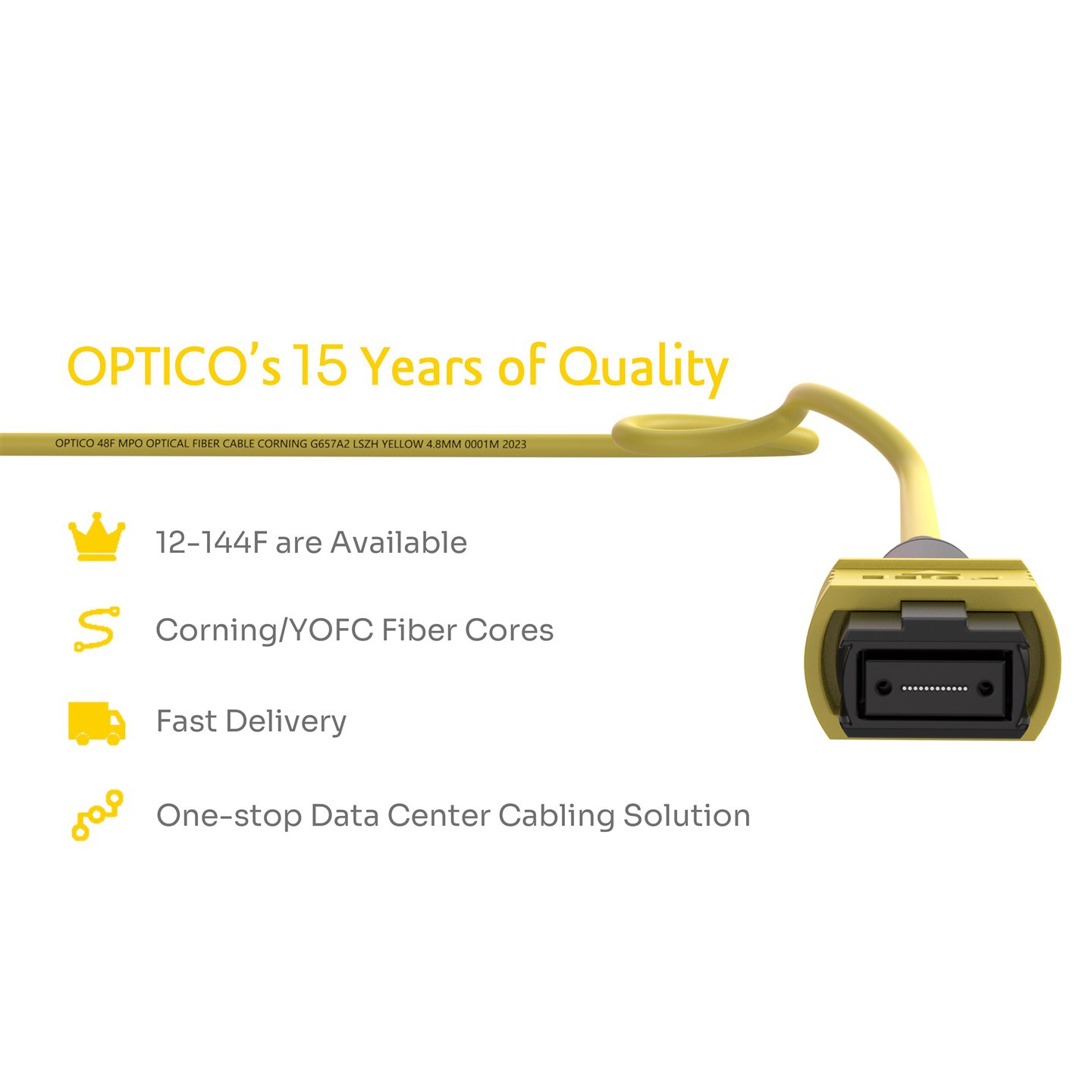

The 48F 4x12F MTP MPO Fiber Patch Cord OS2 UPC boasts a robust configuration with 48 fibers, organized in a 4x12 arrangement, providing versatility in high-density connectivity solutions. Designed for single-mode applications with OS2 (Optical Single-Mode 2) fiber, it combines advanced engineering, precision, and adaptability, making it an ideal choice for demanding fiber optic applications.
OPTICO offers flexibility with customizable lengths/fiber mode/connector types/cable printing etc, allowing users to tailor the patch cord to specific requirements and deployment scenarios.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 48 Fibers |
| Fiber Mode |
OS2 |
| Connector Type | US Conec MTP/OPTICO MPO Male/Female |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow |
| Cable Diameter(mm) | 4.8 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 1310/1550 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Optimal Performance with MPO MTP Connectors
The MPO MTP connectors boast 3 options: standard loss(0.5dB), low loss(0.35dB), and ultra-low loss(0.25dB), guaranteeing reliable and efficient data transmission. This performance standard contributes to the overall effectiveness of the fiber patch cord.

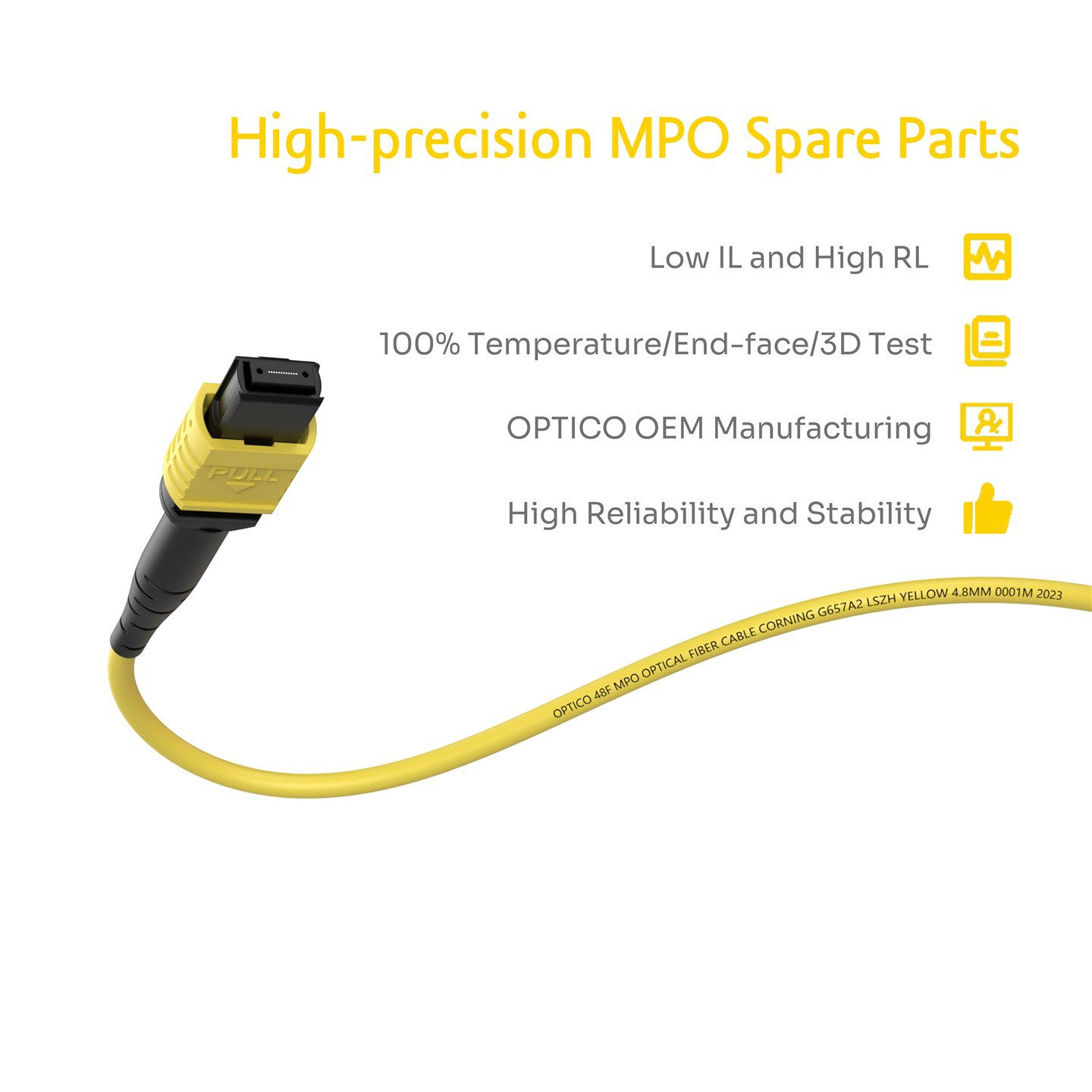

Precision Molded MPO/MTP Connector
The MT ferrule, meticulously molded, ensures accuracy and reliability in data transmission. Guide pins with high precision guarantee exact alignment, minimizing signal loss and maximizing performance.
Compact Design for Multiple Fibers
Despite its compact design, the MPO/MTP connector accommodates up to 4, 8, 12, and 24 fibers, optimizing space utilization in dense data center environments.
Standards Compliance
The connectors adhere to IEC 61754-7 and EIA/TIA-604-5 standards, ensuring compatibility and interoperability in diverse network setups. Rigorous testing guarantees verified optical performance, enhancing network integrity and ensuring consistent reliability.
Applications
High Density Data Center
Backbone Network
Optical Module Connection
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand By You
Quick Response within 24 Hours
One-to-one Consulting Service
Professional Technical Team Support
Super Strict Quality Control
Huge Production Capacity
Never Change Price Arbitrarily
After-sales Services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via:
Phone: +86-755-33532578
Email: sales@fiberopticom.com
WhatsApp: 8619129420326
FAQ
Q: Can the patch cord be customized for specific network architectures?
Q: Are there different connector termination options available?
Q: What is the diameter of the cable used in the patch cord?
Q: What is the polishing type of the connectors?
