Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 8 cores mpo fiber breakout cable in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product profile

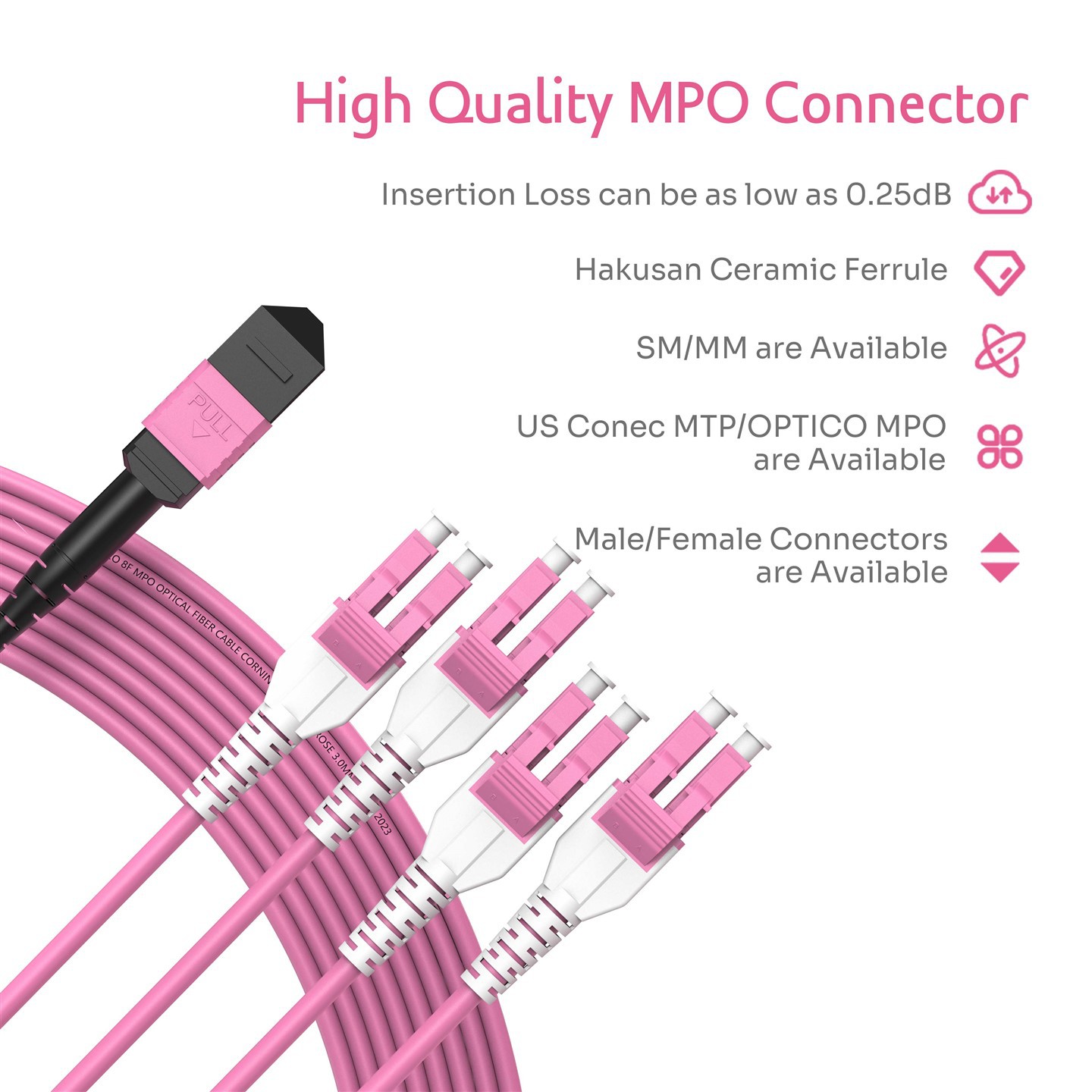

The 8 Cores MPO Fiber Breakout Cable is an innovative solution designed to save space, which can save space for computer rooms, data centers, high-performance computing (HPC), and telecommunications and network service providers.
The 8 Cores MPO Fiber Breakout Cable is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optical direct connection and high-density data center applications.
Fully targeted at optical module direct connection solutions such as 40G LR4 PSM, 40G QSFP+ PLR4, and high-density data center applications.
Product specifications
| Physical Properties | Parameter |
| Fiber Count | 8 Fibers |
| Fiber Mode |
OM4 |
| Connector Type | Connector A: US Conec MTP/OPTICO MPO; |
| Connector B: LC/SC/FC/ST | |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Rose |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Various Fiber Counts and Types
Choose from 4, 8, 12, 24, or 48 fiber options, with both single-mode and multimode fiber types available. This flexibility of 8 Cores MPO Fiber Breakout Cable allows for seamless integration into different network environments and applications.
Rapid Deployment, High Density, and High Reliability
The 8 Cores MPO Fiber Breakout Cable is designed for rapid deployment in high-density environments, such as data centers. Its reliable performance ensures seamless connectivity and minimizes network disruptions.
Extremely Low Insertion Loss and High Return Loss
The 8 Cores MPO Fiber Breakout Cable offers excellent optical performance with extremely low insertion loss and high return loss, maximizing signal integrity and reducing transmission errors.
Telcordia GR-1435-CORE Issue 2 Compliant
The trunk cable complies with the Telcordia GR-1435-CORE Issue 2 standard, which guarantees high-quality and reliable performance.
applications
High Density Data Center
Backbone Network
Optical Module Connection
our brand confidence comes from a strong production team
100% strict performance tests
IL/RL Test
3D Test
End Face Test
Temperature Test
certificates
CE
CPR
ISO
RoHS
full ranges of reliability tests from third-party lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
ordering process
1. Please send an email to Sales@fiberopticom.com expressing your interest in our products. It's preferable to include product images or webpage links to help OPTICO's sales team quickly and accurately locate the product.
2. OPTICO's sales team will respond with relevant information within 24 hours.
3. Both parties can discuss specific production specifications.
4. OPTICO's sales team will provide a quote based on your required quantity and specifications.
5. If the price is acceptable, you will make payment and OPTICO will begin the production process.
delivery(7-15 days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
how we can stand by you
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
after-sales services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
Hot Tags: 8 cores mpo fiber breakout cable, China, manufacturers, suppliers, factory, wholesale, customized, mpo lc patch cord, Armored Fiber Patch Cable, om3 fiber patch cable, om4 fiber jumpers, mtp fiber patch cable, sc Armored fiber optic patch cords
