Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of mpo to 4lc uniboot breakout cable in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product profile

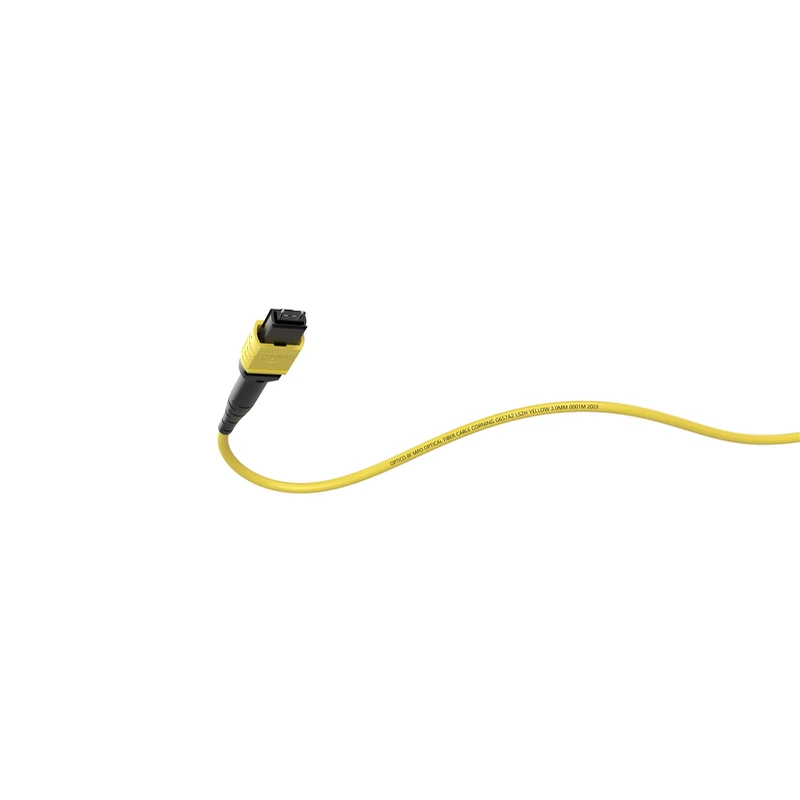

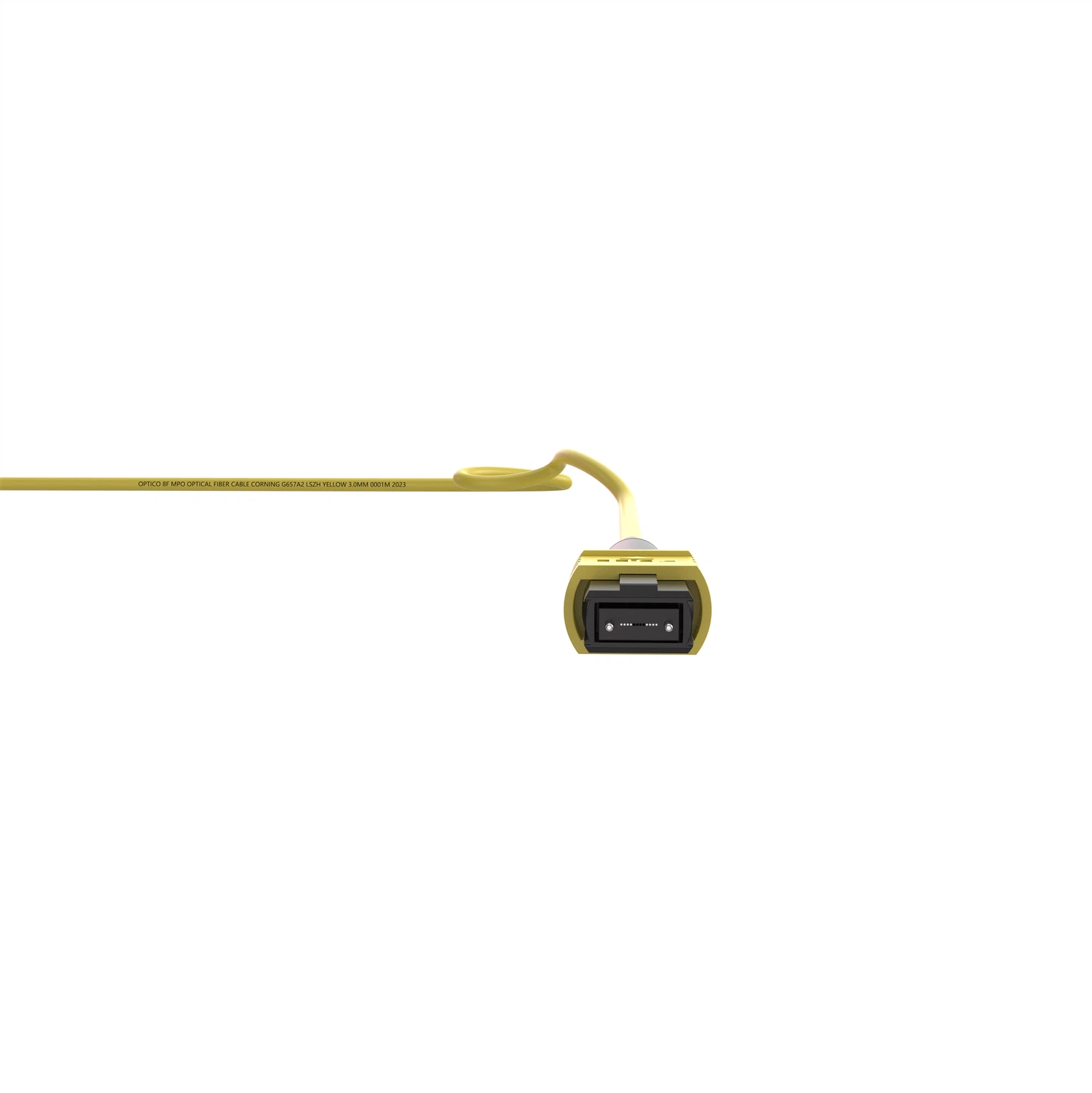

The MPO To 4LC Uniboot Breakout Cable high-density cabling solution is the ideal choice for the next generation of 100G/200G/400G/800G data centers.
The MPO to LC breakout cable complies with RoHS/ISO/CE/CPR/FCC certificates.
The precision-manufactured US Conec MTP/OPTICO MPO connectors in the fiber optic cables ensure outstanding reliability and ultra-low insertion loss of 0.25dB.
Product specifications
| Physical Properties | Parameter |
| Fiber Count | 8 Fibers |
| Fiber Mode |
OS2 |
| Connector Type | Connector A: US Conec MTP/OPTICO MPO; |
| Connector B: LC/SC/FC/ST | |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 1310/1550 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Equipped with precision-engineered glass fibers, this MPO To 4LC Uniboot Breakout Cable delivers high-speed data rates while maintaining signal integrity. With insertion loss as low as 0.3 dB and return loss of up to 20 dB, multimode patch cords maintain signal integrity and enable seamless data communication, ensuring high-performance data transmission in data centers.

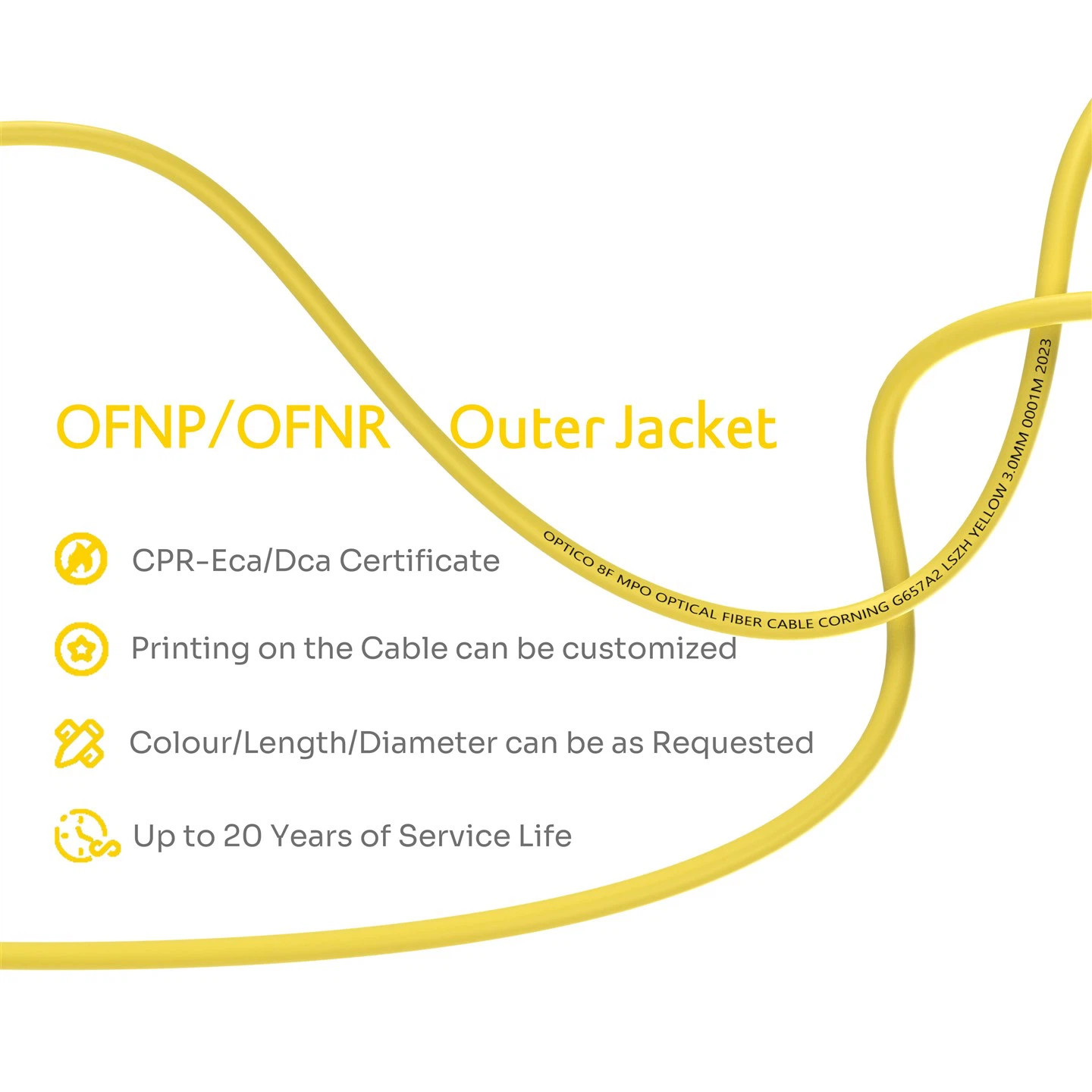

The MPO To 4LC Uniboot Breakout Cable is constructed with PVC/LSZH/OFNP to withstand different environmental conditions while ensuring safety, reliability, and longevity, depending on the specific requirements of the installation environment.
The innovative design of the MPO To 4LC Uniboot Breakout Cable makes it lightweight and small but with many cores. It achieves a high-density optical fiber connection to reduce cable clutter and optimize space utilization in data centers and network environments.
MPO patch cords future-proof networks by supporting next-generation speeds. Their modular connectivity facilitates smooth migration plans for evolving network requirements, accommodating speeds like 400G and 800G.
applications
High Density Data Center
Backbone Network
Optical Module Connection
our brand confidence comes from a strong production team
100% strict performance tests

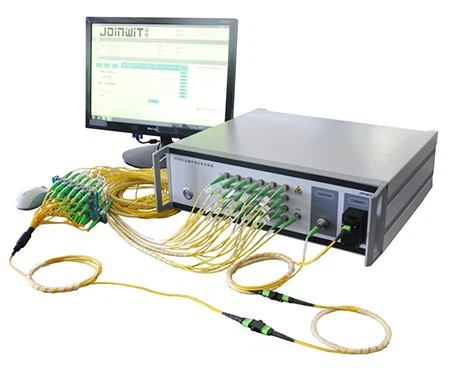

IL/RL Test
3D Test
End Face Test
Temperature Test
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
certificates
CE
CPR
ISO
RoHS
full ranges of reliability tests from third-party lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
ordering process
1. Please send an email to Sales@fiberopticom.com expressing your interest in our products. It's preferable to include product images or webpage links to help OPTICO's sales team quickly and accurately locate the product.
2. OPTICO's sales team will respond with relevant information within 24 hours.
3. Both parties can discuss specific production specifications.
4. OPTICO's sales team will provide a quote based on your required quantity and specifications.
5. If the price is acceptable, you will make payment and OPTICO will begin the production process.
delivery(7-15 days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
how we can stand by you
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
after-sales services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
Hot Tags: mpo to 4lc uniboot breakout cable, China, manufacturers, suppliers, factory, wholesale, customized, mpo om4 patch cord, mpo patch cable, mpo lc cable, mpo breakout cable, om3 multimode fiber, mpo to sc fiber patch cable
