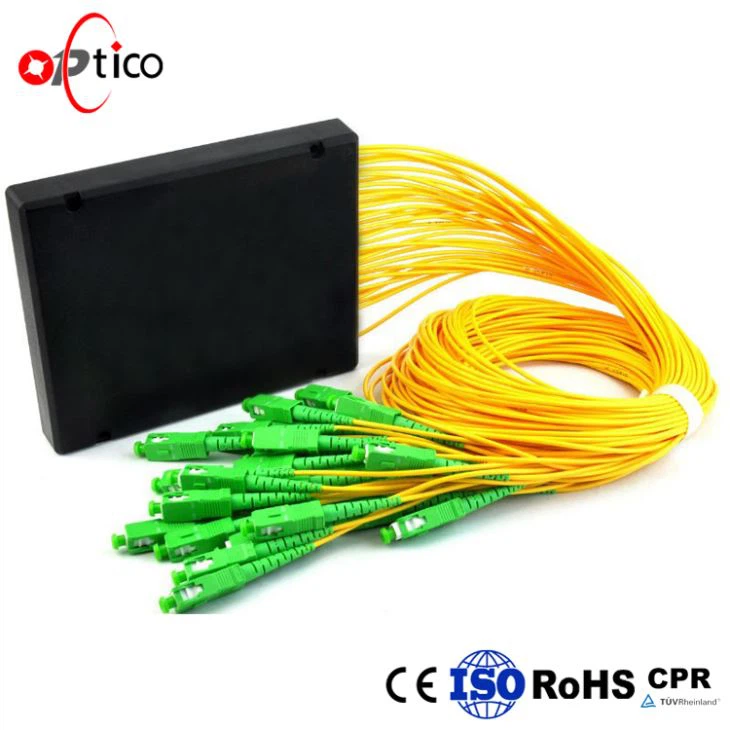

Optical 1x8 ABS PLC Splitter
Fiber optic PLC splitter is a fiber-optic tandem device that couples, branches, and distributes optical signals in an optical network system. One of the most important passive components in a fiber optic link has multiple inputs and multiple outputs. One splitter has M inputs and N outputs are denoted by M*N. Combining multiple optical signals into one signal is called a synthesizer. Planar waveguide type fiber splitter (PLC Splitter) and fused taper splitter (FBTSplitter) according to the production process.
|
Package Style |
ABS Box |
Configuration Type |
1x8 |
|
Fiber Type |
Singlemode G.657A1 |
Connector Type |
SC/APC |
|
Fiber Diameter |
2.0mm |
Pigtail Length |
1m |
|
Insertion Loss |
≤10.4dB |
Return Loss |
≥55dB |
|
Loss Uniformity |
≤0.8dB |
Directivity |
≥55dB |
|
Polarization Dependent Loss |
≤0.3dB |
Temperature Dependent Loss |
≤0.3dB |
|
Wavelength Dependent Loss |
≤0.3dB |
Operating Bandwidth |
1260~1650nm |
|
Operating Temperature |
-40~85°C |
Storage Temperature |
-40~85°C |
The inner structure of our PLC Splitter
Scenes of application

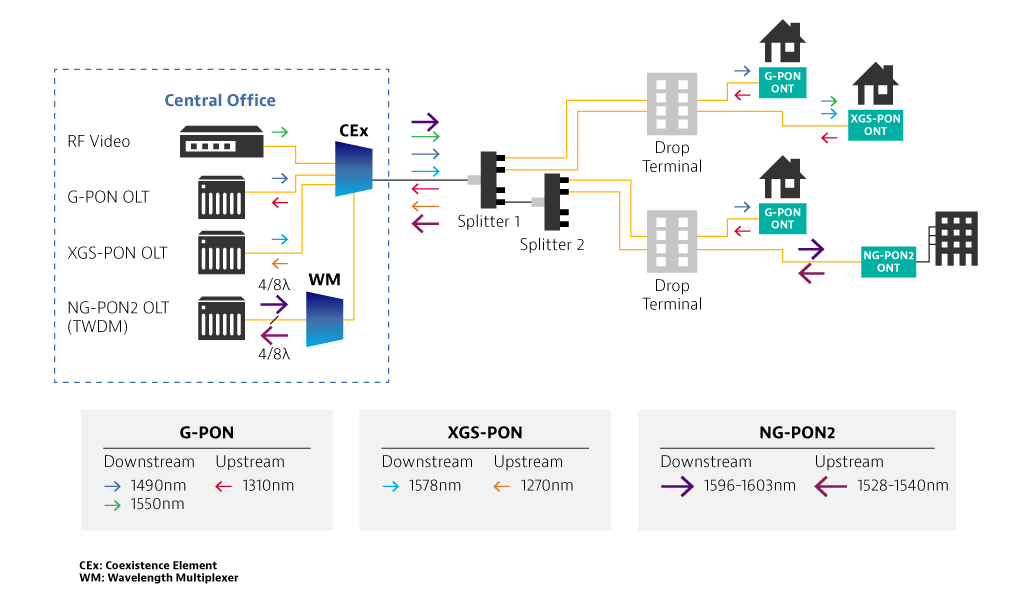

PON Networks

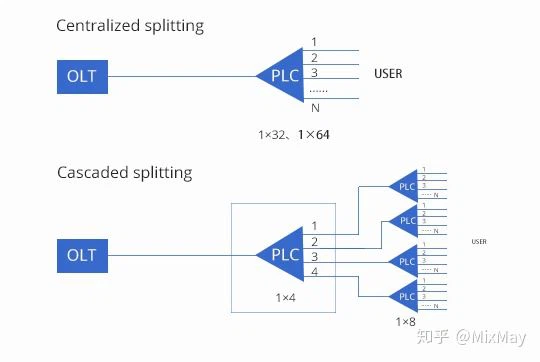

PLC Splitter in FTTH Solution

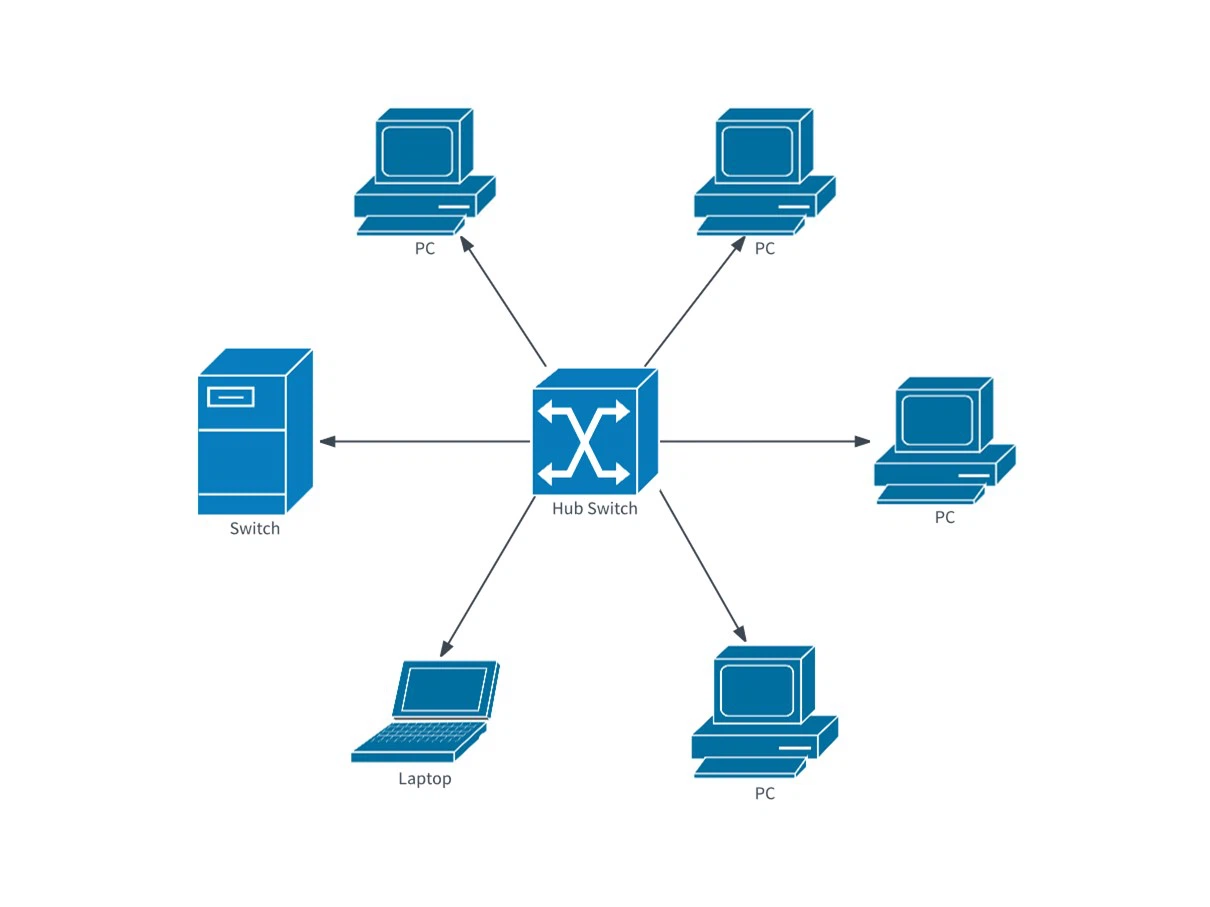

WAN networks
Scenes of application
PON Networks

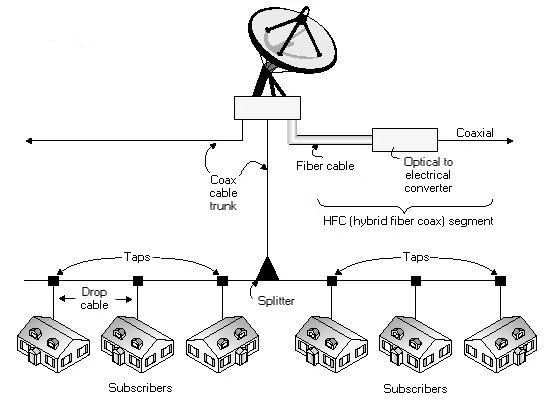

CATV Links
Types of certificates
CE

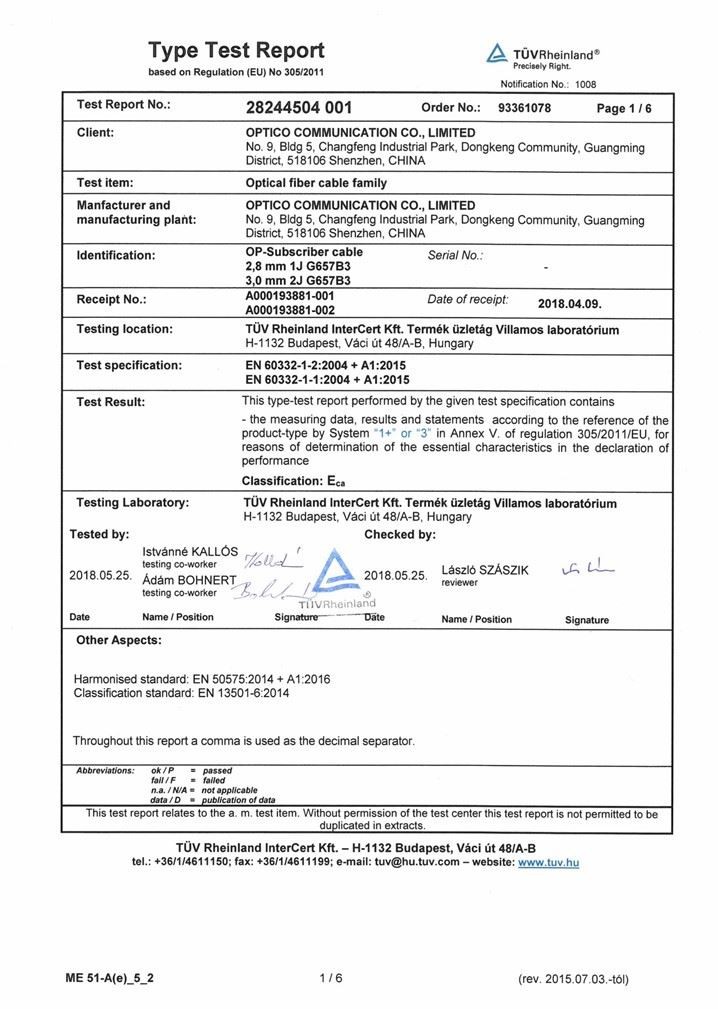

CPR

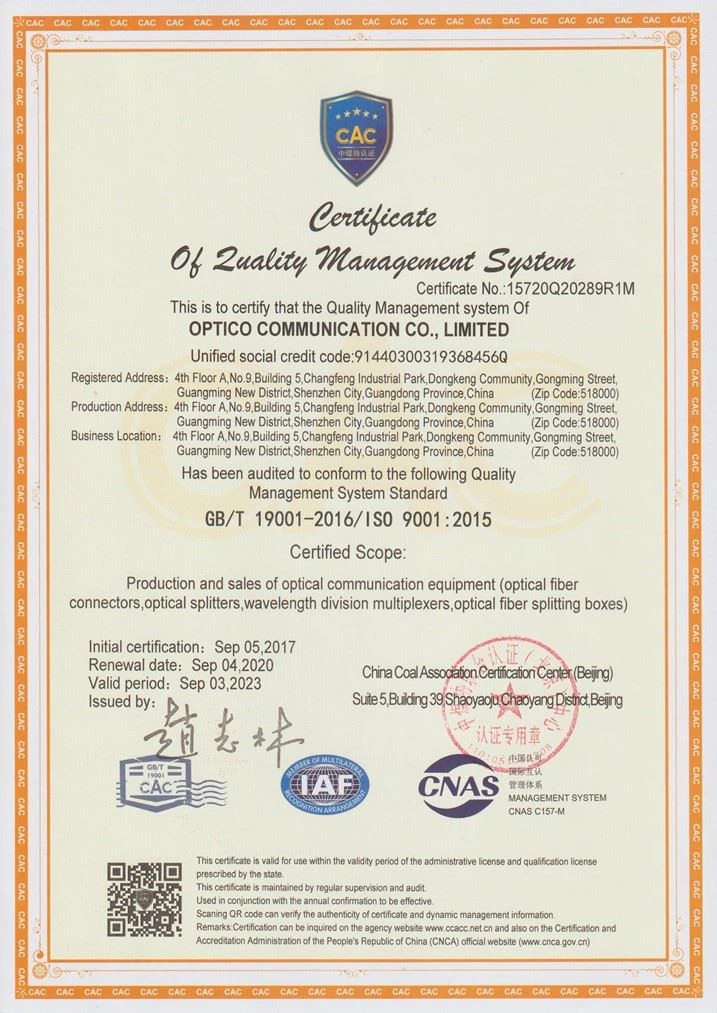

ISO
ROHS
Everybody works hard everyday

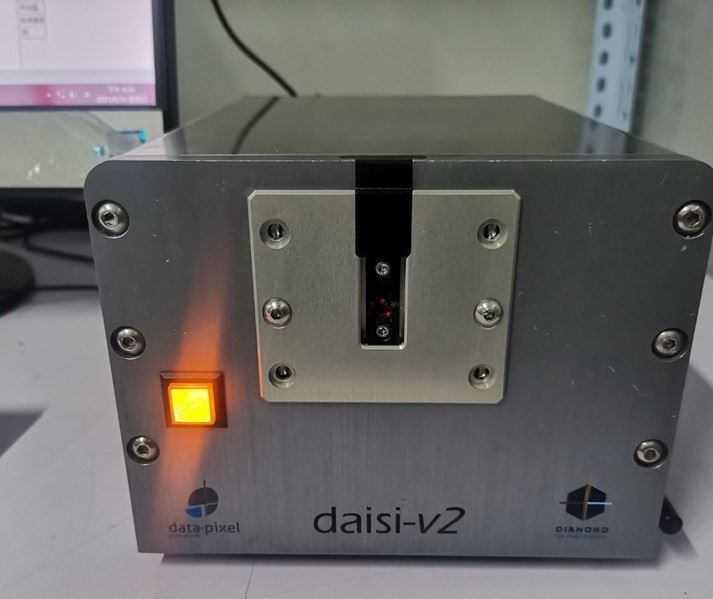

3D tested by Daisi device
End surface test

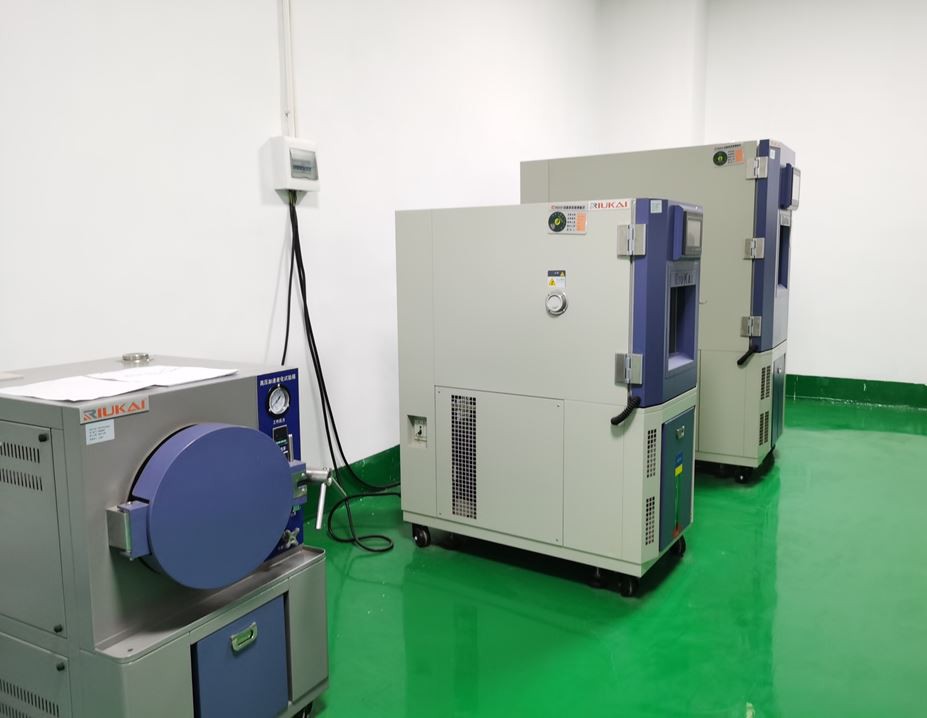

High and low temperature test
Our brand comes from a strong production team
7-15 DAYS
Rack type: installed in a 19-inch OLT cabinet; when the fiber branch is placed in the home, the installation equipment provided is a standard digital cabinet; when the ODN needs to be placed on the table.
Box type: installed in a 19-inch standard rack; when the fiber branch is placed in the home, the installation equipment provided is the cable transfer box; when the fiber branch is placed in the household, the equipment specified by the customer is installed.
Bare Fiber Type:
1. Installed in various types of pigtail boxes.
2. Installed in various types of test instruments and WDM systems.
Branch type:
1. Installed in various types of optical equipment.
2. Installed in various types of optical test instruments.
Mini Type:
1. Installed in the cable connector box
2. Installed in the module box.
3. Installed in the wiring box.
Insert type: used in the FTTX system to split the user access point, mainly to complete the fiber optic cable into the community or building, with fiber optic fixed, stripping, welding, jumper, split and other functions, after splitting into The form of the fiber optic cable enters the end user.
Pallet type: Suitable for integrated installation of various types of fiber optic splitters, wavelength division multiplexers, etc. Use high quality fiber optic connectors, adapters, low insertion loss, high return loss;
