Growth in today’s broadband applications demands reliable, high performance splitters. The move towards PONs within the FTTx sector calls for a device ensuring low insertion loss, linear uniformity and low return loss.
| Item | Parameter |
| Configuration | 1X32 |
| Operating Wavelength (nm) | 1260~1650 |
| Fiber Type | G657A1 |
| Insertion Loss(P/A Grade Max.dB) | 16.5/16.9 |
| Loss Uniformity(Max.dB) | 1.5 |
| PDL(Max.dB) | 0.25 |
| RL (Min.dB) | 60 |
| Directivity(Min.dB) | 55 |
| Wavelength Dependent Loss (Max.dB) | 0.5 |
| Fiber Length(m) | 1.5(±0.1) or others specified |
| Temperature Stability(-40~+85℃,Max.dB) | 0.5 |
| Operating Temperature(℃) | -40~85 |
| Maximum Power Handling (mW) | 500 |
Average optical power
1 * 32 FTTH LGX Cassette
Corning/YOFC Fiber
CATV Links

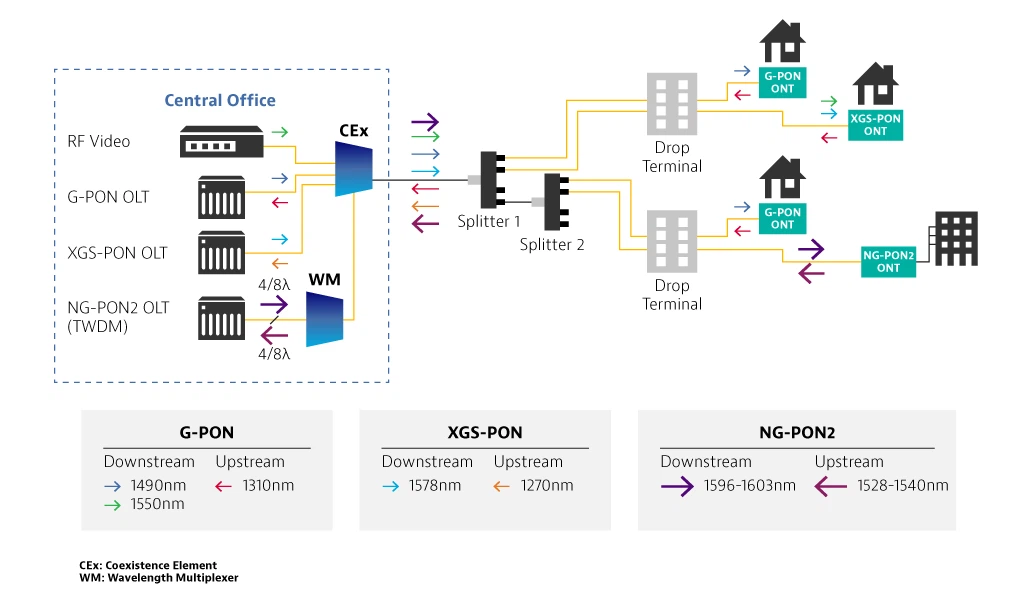

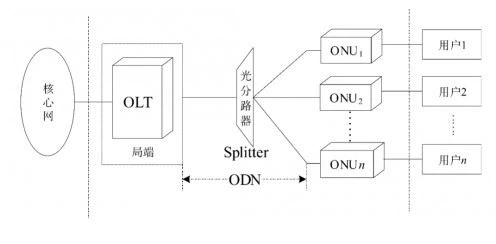

PONs

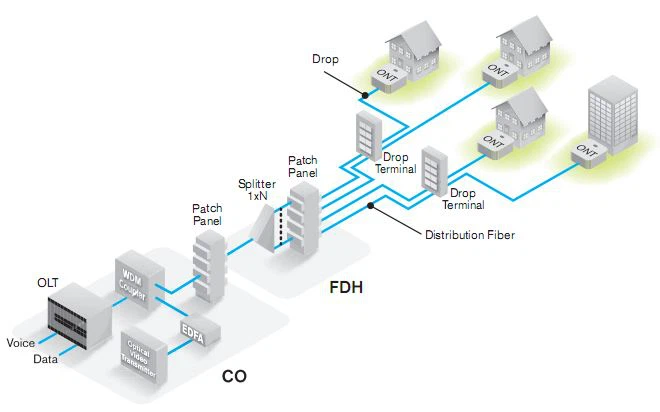

FTTH Networks

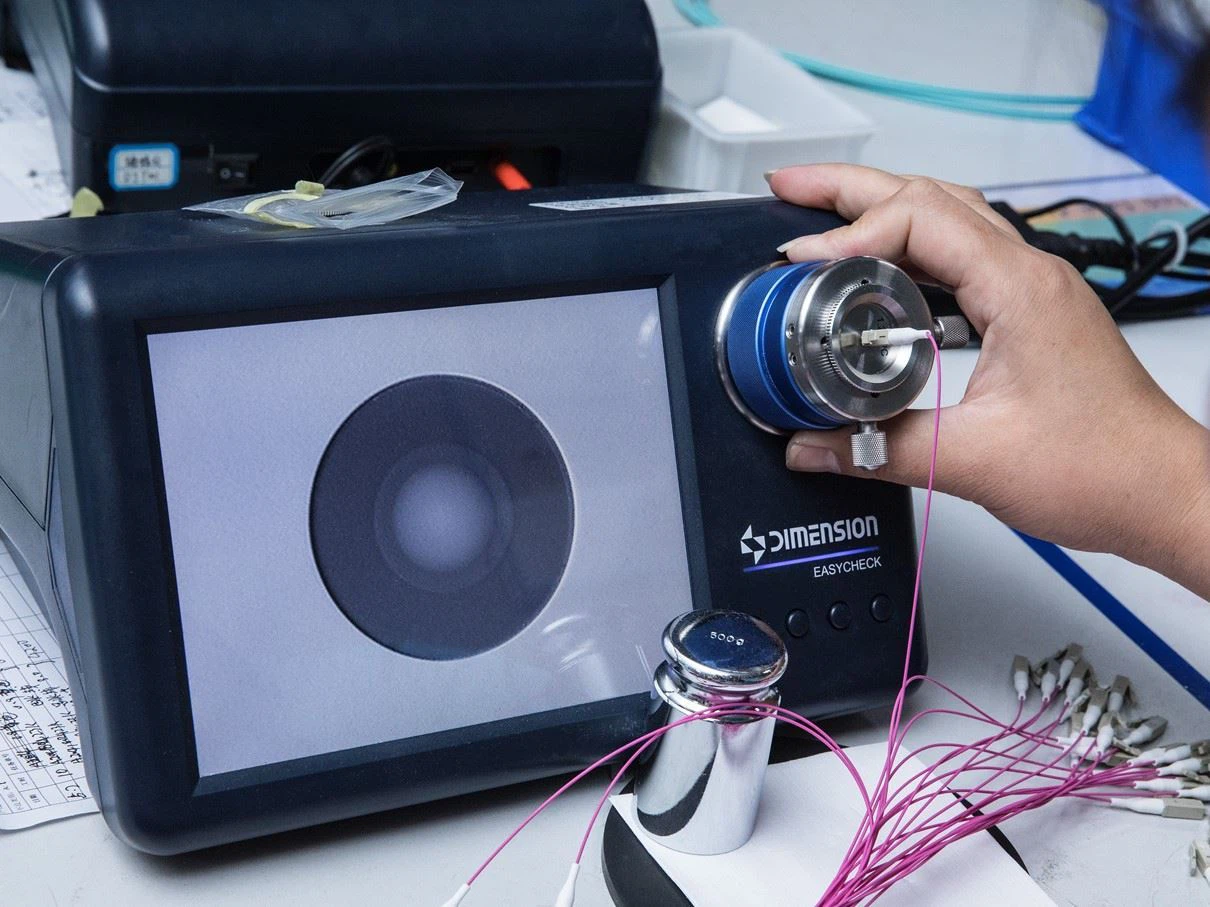

End surface test
IL and RL Test
Temperature test

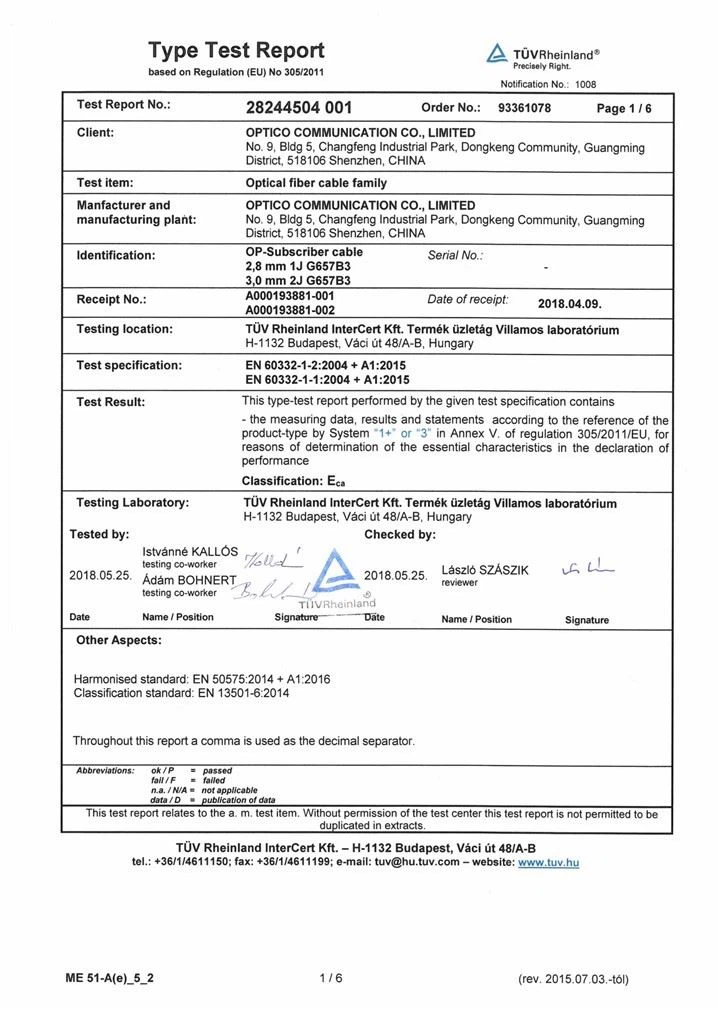

CE
CPR

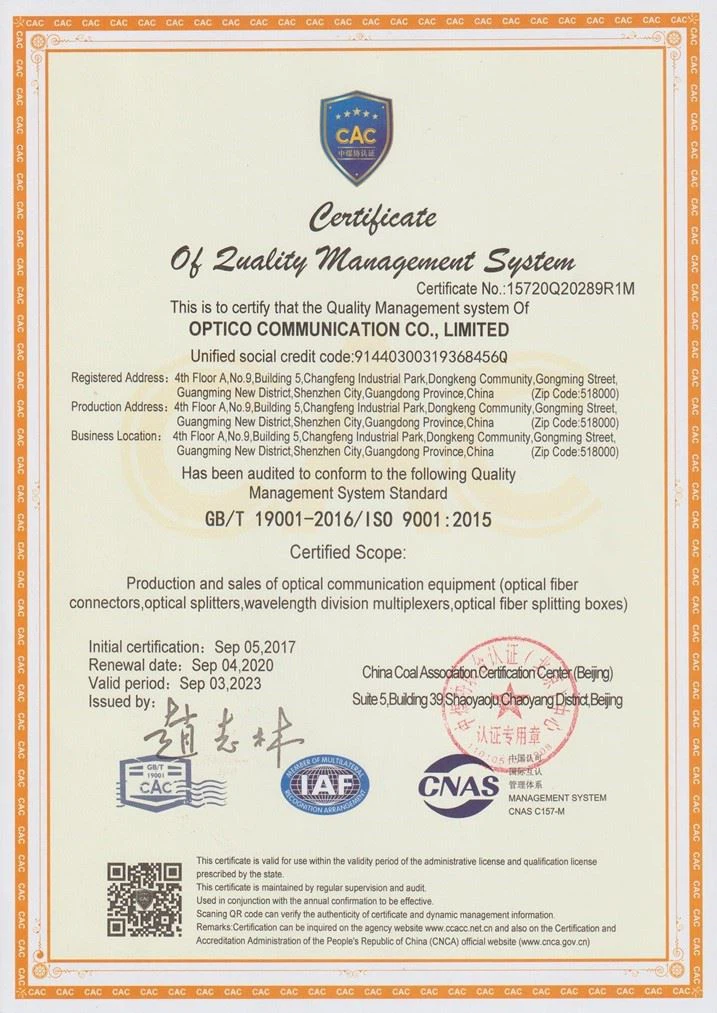

ISO

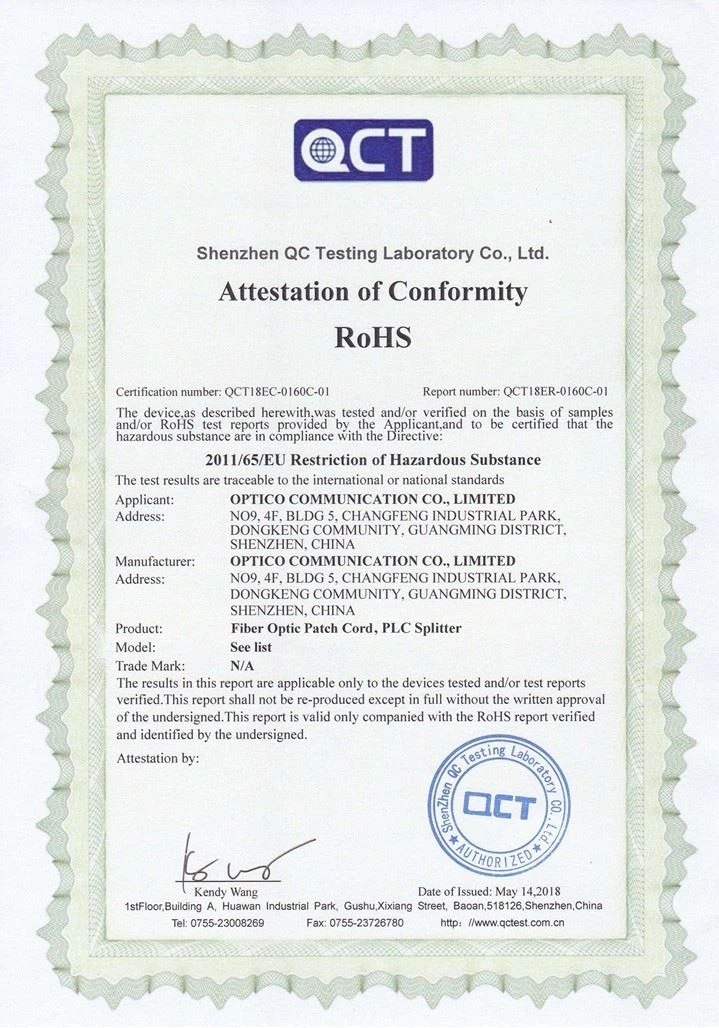

ROHS
100% 3D tested by Daisi Device
Boil in high temperature water for 168 hours
Very very low PDL value
All connectors should be grade B
Ultra high RL
Types of customized Multimode PLC Splitters
Quick response within 24 hours
One-to-one service
Professional technical team support
Provide the best quality solutions
Strong production team
The most stringent quality control standards
Fast delivery
